Product Details:
Payment & Shipping Terms:
|
| Product Name: | Rail Transfer Truck | Parameter: | Customized |
|---|---|---|---|
| Operation Way: | Pendant & Remote Controller | Running Distance: | Unlimited |
| Color: | Silver, Customized | Power Source: | Battery |
| Load Capacity: | Customized | Warranty: | 2 Years |
| Running Speed: | 0~20m Per Minute | Wheel: | 4 |
| High Light: | electric transfer cart,load transfer trolley |
||

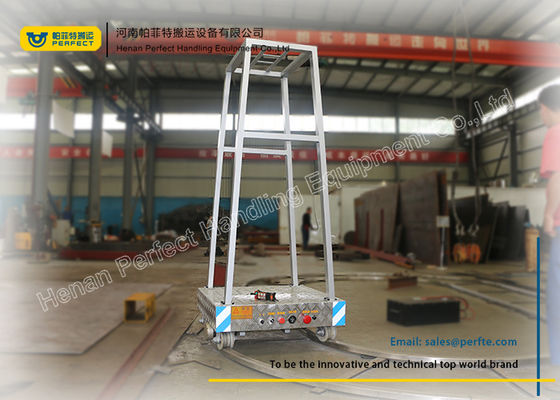

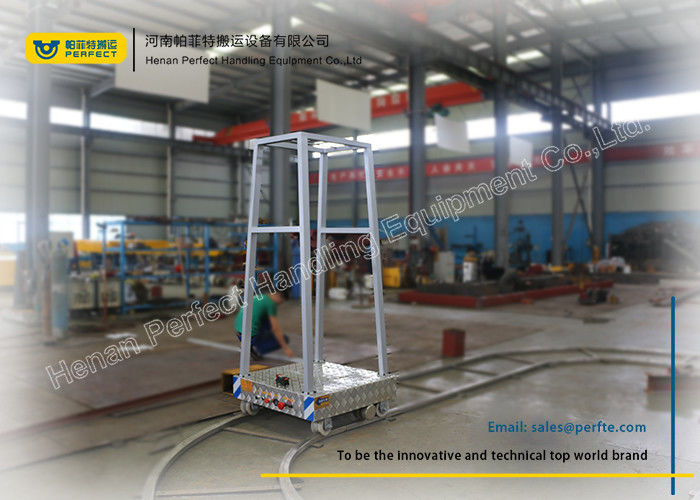

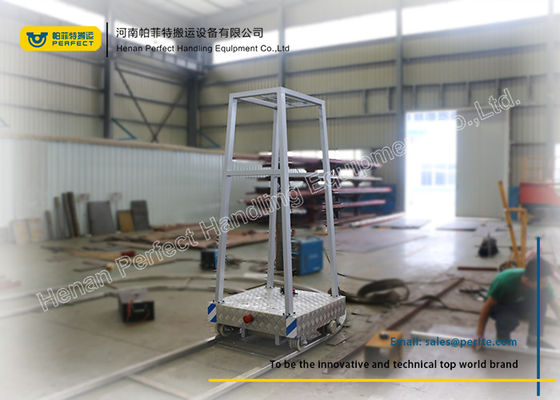

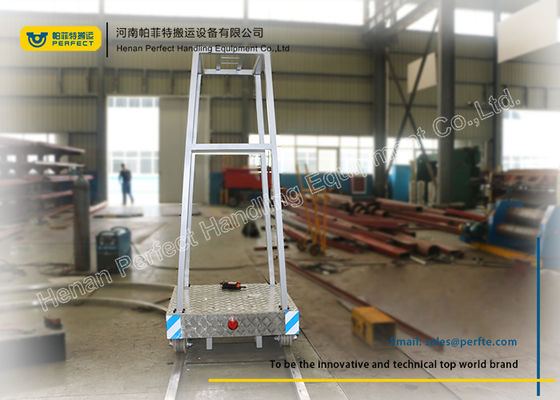

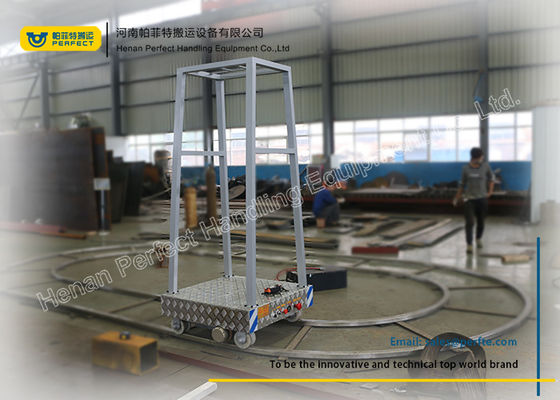

Customized Special Automated Rail Transfer Truck with Warnin Light
Preview of Automated Rail Transfer Truck
Our BXC series automated rail transfer truck is powered by battery. The battery is fitted in the inner of the truck. The direct-current machine gets its power from the electric control system, which make the truck to start, stop, move forward and move backward. It could run on straight line, L-form track or curved track. You can use remote control to operate the truck. After using, you need to charge it for 8 hours. It can work for more than 4 hours a time.
Parameters of Automated Rail Transfer Truck
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 | |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Application Fields of Automated Rail Transfer Truck
We produce a wide range of rail flat cars, railway guided transfer carts, factory transport equipment, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive,mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many other lines. We are sure to provide the product you want! We are sure you will be satisfied with us!
Advantages of Automated Rail Transfer Truck
Maybe you are looking for a satisfied Automated Rail Transfer Truck. I think we will be a good choice for you. It causes low noise level. We make sure a maximum safety for operators and the material handled. What we really care is the safety of everyone involved in the process of machine operation. These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter. Operates on standard floors; Do not require complex or permanent installation. The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its highest payloads is up to 300 ton. We must be a good choice for you!
