Product Details:
Payment & Shipping Terms:
|
| Product Name: | Rail Electric Flat Car | Charge Time: | 4-5 Hours |
|---|---|---|---|
| Color: | Red, Customized | Wheel Number: | 4 |
| Wheel Material: | Cast Steel | Power Source: | Storaged Battery |
| Running Speed: | 0-25m/min | Wok Time: | 4-5 Hours |
| Load Capacity: | 1-300 Ton | Ground Clearance: | 50mm (Customized) |
| High Light: | automatic guided carts,electric flat car |
||

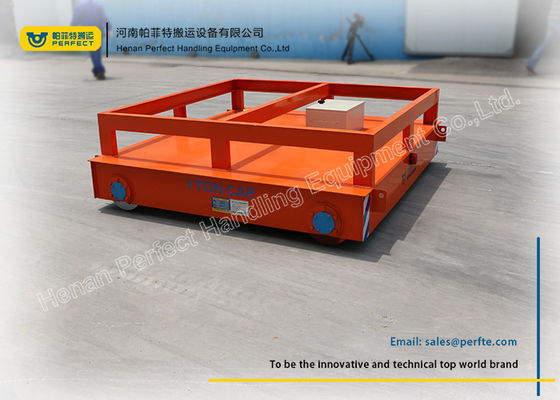

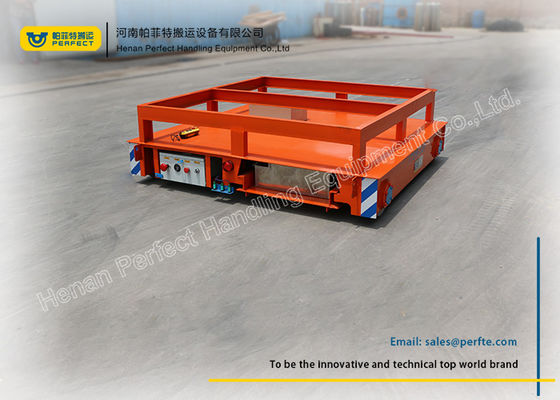

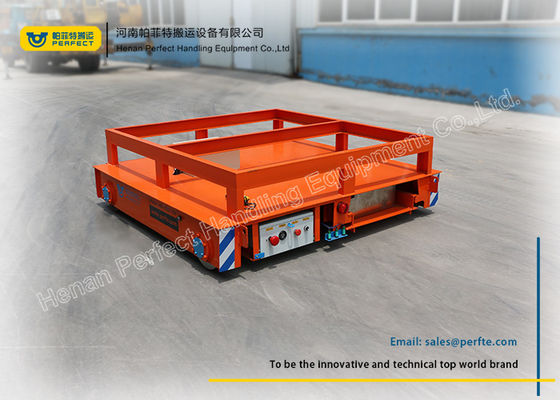

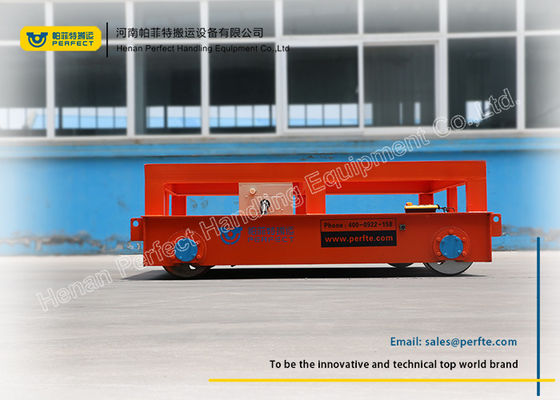

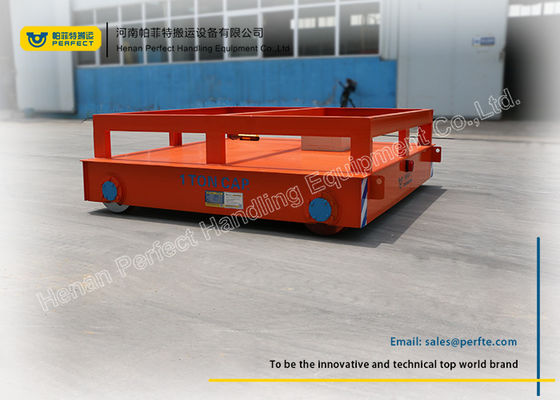

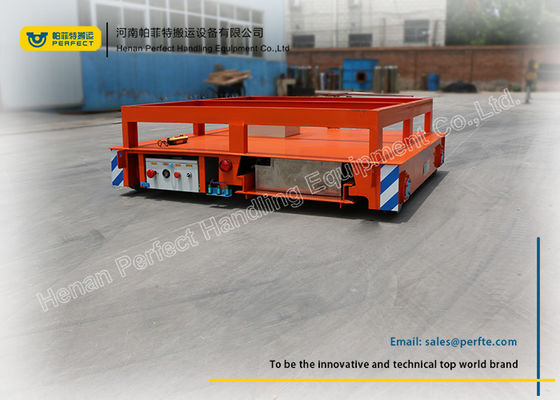

Customized Red Heavy Steel Products Using Electric Transfer Bogie
Product Preview of Steel Products Using Electric Transfer Bogie
Our Steel Products Using Electric Transfer Bogie is a special designed tranport vehicle. We fit inported batery on it which takes about 8 hours to charge and can work over 4 hours at a time. We hav emany different kinds of operation mode, you can control it by pendant or remote control. We can also accept customization and mount on special used devices such as hydraulic lifting device for you as per your request. We are sure to provide the products you want!
Application Fields of Steel Products Using Electric Transfer Bogie
We have been working in this line for over 15 years. Normally, we provide products according to our clients' demands. We have excellent designers and professional workers. So we can design and produce the products you want according to the using sites. So if you are interested in our products, don't hesitate and tell us your plan and we will satisfy you!
Parameters of Steel Products Using Electric Transfer Bogie
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | |
| Height(H) | 450 | 550 | 650 | 900 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | |
| Battery Capacity | 180 | 180 | 330 | 440 | |
| Battery Voltage | 24 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | |
Packing and Shipment of Steel Products Using Electric Transfer Bogie
Q & A
How to choose the suitable transfer cart?
All of our transfer carts can be customized as client's requirement, for choosing the most suitable transfer cart, please kindly provide the following information:
1. What material/cargo the transfer cart shuttle?
2. What capacity do you need?
3. What kind of ground the transfer cart operate on? (rails or cement floor)
4. What the table size do you need? (length, width and height)
5. How about the running distance?
6. How many working hours in per day?
