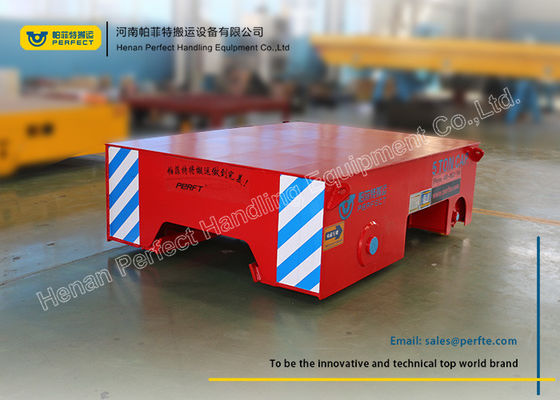

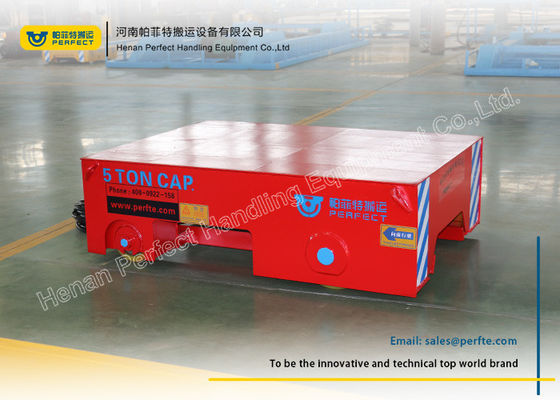

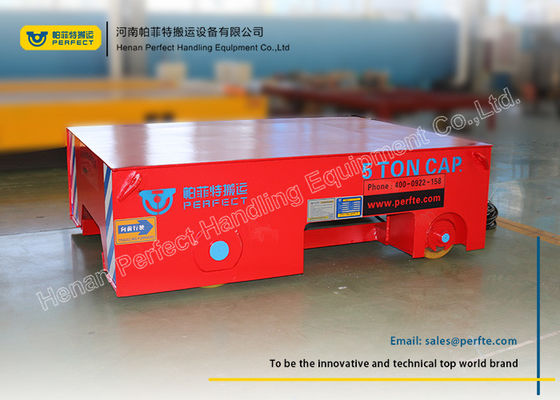

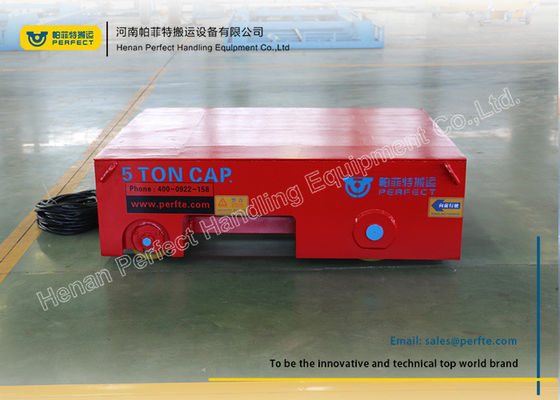

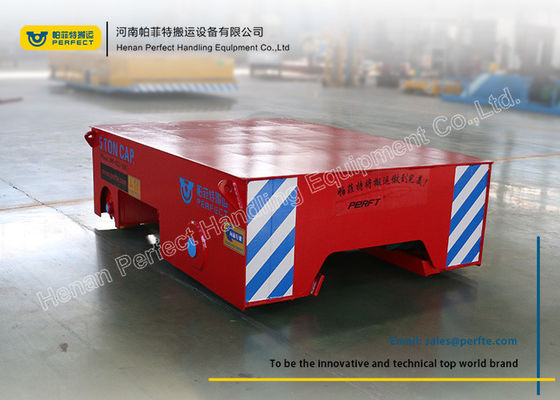

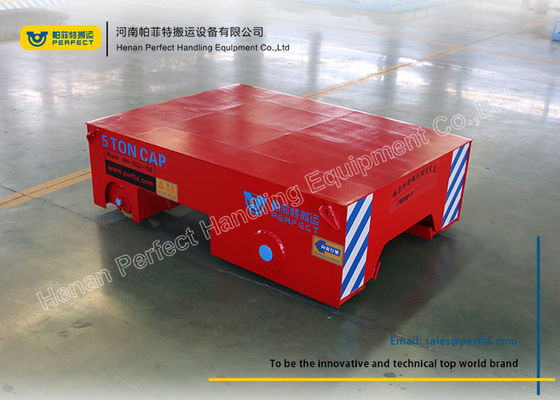

5 Ton Load Motorised Transfer Trolley For Short Distance Transportation

5 Ton Load Motorised Transfer Trolley For Short Distance Transportation
5 Ton Load Motorised Transfer Trolley For Short Distance Transportation 5 Ton Load Motorised Transfer Trolley For Short Distance Transportation 5 Ton Load Motorised Transfer Trolley For Short Distance Transportation 5 Ton Load Motorised Transfer Trolley For Short Distance Transportation 5 Ton Load Motorised Transfer Trolley For Short Distance Transportation 5 Ton Load Motorised Transfer Trolley For Short Distance Transportation

Large Image :  5 Ton Load Motorised Transfer Trolley For Short Distance Transportation

Product Details:
Place of Origin: Xinxiang, China
Brand Name: PERFECT
Certification: CE, SGS, ISO
Model Number: BTL
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: The whole cart is package with tarp, and parts will be packed by wood case
Delivery Time: 45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 70 Sets per month
Detailed Product Description
Product Name: Material Transport Cart Powered Source: Trailing Cable Powered
Operation Mode: Pandent And Remote Controller Cart Frame: Q235B
Rail Gauge: 1435mm (Customized) Color: Yellow, Customized
Wheel Type: Cast Steel Wheel Safrty Device: Buffer, Alarm Light, Emergency Stop Buttons
Special Function: Anti-Explosion, Heat-Resistant, Lifting, Dumpling Warranty: 12 Months
High Light:

heat resistant motorised transfer trolley

,

5 ton motorised transfer trolley

,

heat resistant coil transfer cart

5Ton Load Pallet Transfer Carts Flatbed Body Motorised Transfer Trolley



Product Preview of Pallet Transfer Carts

Our transfer trolley moves on rails. It is powered by dragging cable. The 380V alternating current is leaded into electric control system directly and then drive the motor to make it start, stop, move forward and move backward. The cable lies in the middle of the two rails and the working voltage is safe 36V. It can be used in high temperature and explosion proof environment. It's usually used for short distance transportation.

Application Fields of Industrial Transfer Trolley

Our products are mainly used to move heavy material from one place to another.As we all know, for industry, we often need to move or transfer heavy things from one place to somewhere else. Thus, we need a good transfer trolley for us to finish our missions efficiently. If you need special type, customization is also accepted. Our main products include material transfer carts, coils and pipes transport trolleys, industrial trailers, factory transport equipment, electric warehouse carriages, ladle carts, motorized battery operated transfer vehicle and so on. According to your demands, we can assure that you will be satisfied with our product and service. We are working hard to provide the suitable products you want.



Process Technology

(1): The steel plate is transported from warehouse to CNC cutting workshop for cutting.

(2): Workers put the cut steel plate together according to the design drawing.

(3): Weld the steel plate with automatic welding machine after the preliminary assembling.

(4): Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress.

(5): Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint.

(6): Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.

(7): Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish.

(8): Debugging the cart after painting the finish with electric control system, after the debugging, the cart will be tested without load and then with load. After the inspection, the cart will be transported to storage area.

Special truck

5 Ton Load Motorised Transfer Trolley For Short Distance Transportation 1

Our Other Products

We Henan Perfect Handling Equipment Co., Ltd. Our company is specializing in the Design and Manufacture of transport system to solve every material handling requirement. Our product includes Industrial Trailers, Coils & Die Transfer Cars, Electric Railway Ladle Cart, Scissor Lift Tables, Turntables, Trakcless Transfer Cart and many other specialty items.

electric rail mounted trolleys

Packing and Shipment

We try our best to make sure the delivery is in good condition. The body of the cart is packed with tarp,  the small parts will be packed with wooden cases. According the table size and quantity, the cart would be carefully fixed and transported by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.
flatbed rail cars



Why Choose US

1. We are professional design and manufacture transfer cart company.with 15 years experience in this fields.

2. We guarantee high quality product,we do care worker's safe.

3. Our warranty is 12 months, during this period, we can maintance is for you freely, after that period,we only charge cost price.

4. Various modes including email, telephone, and online for operating guidance.

5. Flexible payment method for customers' choice.

6. Excellent engineers' team are available at the any time for customers' questions.

transfer vechile
