Product Details:
Payment & Shipping Terms:
|
| Powered Source: | Storage Battery | Operation Mode: | Pandent And Remote Controller |
|---|---|---|---|
| Load Capacity: | 1-300Ton/ Customized | Color: | Yellow And Blue/Customized |
| Working Time: | 6~7 Hours | Wheel Type: | Steel Wheel |
| Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Table Size: | Customized | Warranty: | 12 Months |
| High Light: | electric transfer cart,material transfer trolley |
||

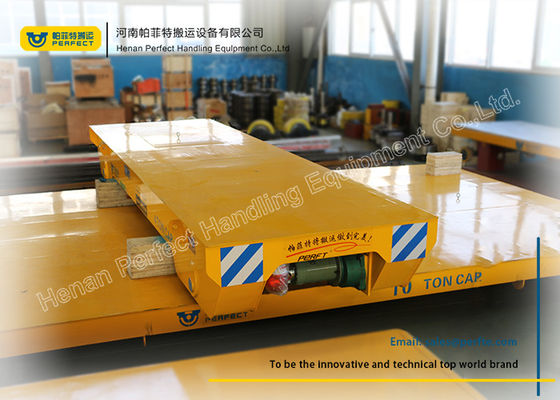

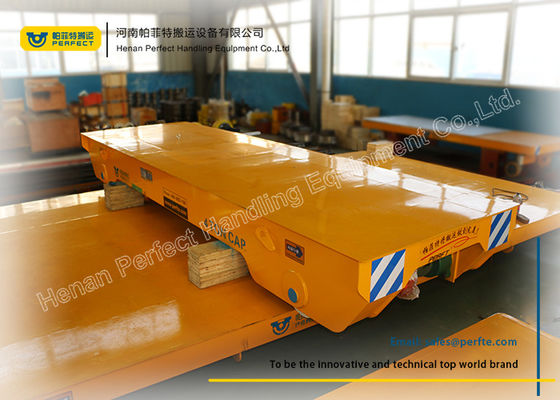

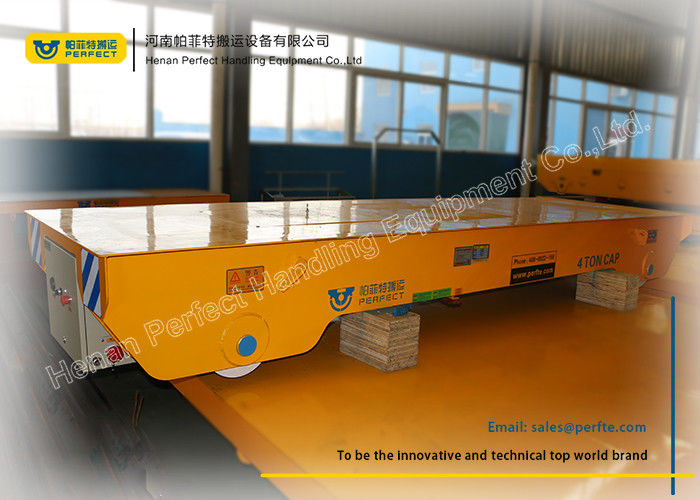

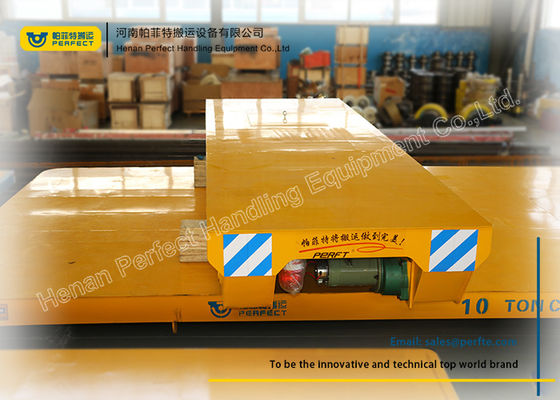

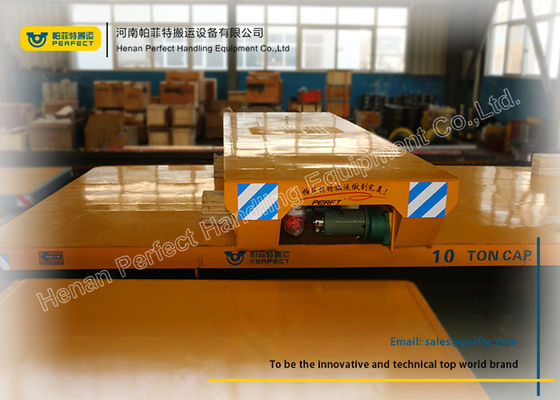

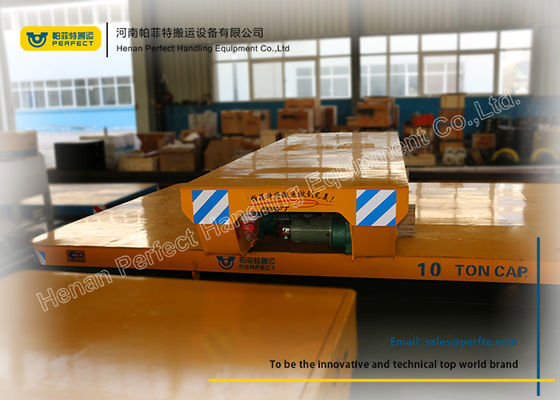

Precision Tubes and Pipes Railway Transport Cart Four Wheels Railroad Traverser
Introduction of Four Wheels Railroad Traverser
Application of Four Wheels Railroad Traverser
Our four wheels railroad traverser is suitable for various occasions:
Steel mill: Transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc from one location to another;
Paper Plant: Transfer paper coil
Painting shops: Transfer work piece into the painting room Sand blasting room)
Shipbuilding: Due to the large load capacity, the four wheels railroad traverser is applied in ship industry to transfer workpieces, maintenance tools (propeller, motor etc.).
Quarries: Transport large mechanical include giant excavator, stone breaker etc
Warehouses: For material handling and storage
Multi-bay workshops: The four wheels railroad traverser can be used to convey raw material or finished product betweent multi-bay.
For coal mine usage: This four wheels railroad traverser has been widely used in this field with hot market. Any interests and problems, welcome to contact with us. The proper solution can be provided to you once getting for your confirmation.
Many other industries etc
Components of Four Wheels Railroad Traverser
cart Frame
The cart frame is two longitudinal beam, several beams with steel panel welded together, which adopts box beam structure according to the crane principle and combined with the design of the cart. Its main feather: large load bearing, little table deformation, long service lifetime etc.
Cast Steel Wheel
About the wheel, it is single rim of corner case, the material is ZG55, or can be customized as per your demand. It can improve the load capacity and install easily. And the wheels are manufactured and assemblied by ourselves.
Battery
About the battery, The maintenance free type battery also is chosen to export. this kinds are convenient, and long lifetime, we needn't maintain once a regular time. So in this serie sadjustable speed factory automatic steerable trailer, it is popular among customers.
Intelligent Charger
Generally speaking, the intelligent charger is chosen to export, it has high frequency, little interference to the grid, and small volume. The charger can not only realize rapid charging, but also no damage to the battery, and prolong battery lifetime.
Lifting Hole
The lifting hole are installed on the automatic steerable trailer for convenient transporting. Especially, it can be lifted and moved after the structure finished. What’s more, it makes the appearance more delicate and beautiful.
Sound&light alarm
For safe running, it is installed on the cart, it will ring continuously to warn someones when the trailer start running. Of course, the other parts can be installed, as dead man stop, emergency stop, anti-colliding switch, buffer etc and all can be meet only you’d like by our professional team.
Related Products
Parameters of Four Wheels Railroad Traverser
| BXC SERIES TRANSFER CART TECHNICAL PARAMETER TABLE | ||||||
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Packing & Shipping
The four wheels railroad traverser for sale body is packed with tarp, the wheel and parts will be packed with wooden case.
For length is less than 5.9m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container. If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container (20 or 40 ft). If the automated handling vehicle for sale is beyond above dimension, it needs to be transported by BB container. Determine the size & material of the box according to the shape & number of products.
After Service
Our Strength
Henan Perfect Handling Equipment Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of handling equipments, as one of the professional manufacturing company, which has a modernized management team and excellent staff. And our prodcuts gets CE, SGS, ISO certificate and other 8 national patent, our products have been exported to more than 50 countries and regions, such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
