Product Details:
Payment & Shipping Terms:
|
| Product Name: | Electric Flat Transfer Trolley | Load Capacity: | 1-300T |
|---|---|---|---|
| Table Size: | Customized | Running Speed: | 0-50/min(Adjustable) |
| Control Method: | Remote/Pendant | Color: | Customized |
| Certificates: | CE/SGS/ISO | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | electric transfer cart,load transfer trolley |
||

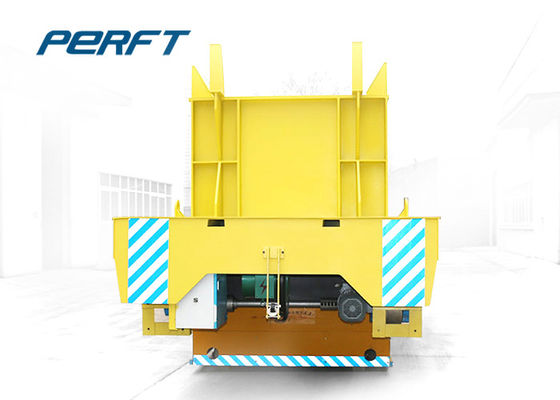

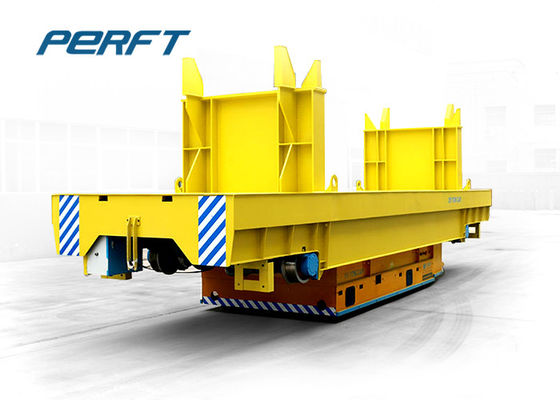

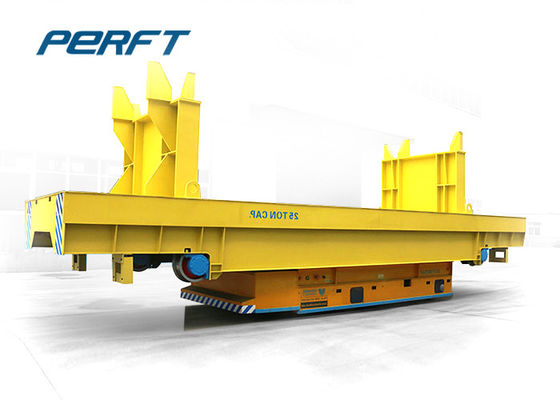

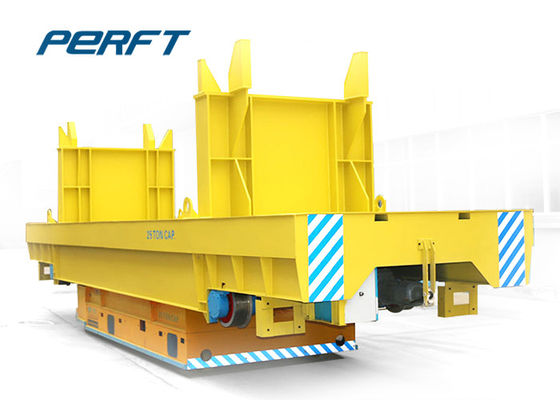

Electric flat transfer trolley with solid rubber wheels
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Max. Wheel Load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground Requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table Size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 |
| Height (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel Base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles Distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning Radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning Structure | Mechanical | ||||
| Motor Power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel Diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel Material | ZG55+hydropurture | ||||
| Running Speed (m/min) | 0-15 | 0-12 | |||
| Brake Principle | Electric magnetic brake | ||||
| Operation Method | Raido Remote Control | ||||
| Battery Maintainance | Free of maintainance | ||||
| Charger's Installation | Installed on cart | Split-type | |||
| Cart Color | Customized | ||||
| Charger's Function | Automatically cut off the power when the battery is fully charged | ||||
| Radar Control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning Equipment | Horn and Flash Light | ||||
| Other Functions | Turning light, night light and power display | ||||
NOTES:
1. Q: What is the size and load of this Electric flat transfer trolley ?
A:The size and load of our this Electric flat transfer trolley is customized design according to your requirement.
2. Q: How should I operate this Electric flat transfer trolley ?
A: The Electric flat transfer trolley is controlled by pendant & remote radio control. The controller could be push button or joy-sticker.
3. Q: Is there any braking system on this Electric flat transfer trolley ?
A: Yes, there are electromagnetic brakes on the Electric flat transfer trolley. When the Electric flat transfer trolley is power off, the brake will work automatically. And there are emergency stop buttons on the remoter and the Electric flat transfer trolley, you can push it for emergency stop.
4. Q:What is the warranty period? What kind of service do you offer in the warranty period?
A: The warranty period for our product is 12 months from the time we delivery, during the warranty period, we will send spare parts to you on our own cost if damaged because of bad quality, and we will guide you how to replace it. If necessary, our engineer is available to your factory for maintenance.
5. Q: How do you transport the Electric flat transfer trolley and what is the package ?
A: For the big part, we will pack it with tarpaulin and wood pallet on the bottom of the Electric flat transfer trolley to prevent it from moving. For the small part, we will pack it in wood case.
6. Q: What is the leading time, delivery term, and payment term ?
A: Usually our leading time is 45 days, for some special Electric flat transfer trolley, such as hydraulic lifting Electric flat transfer trolley, it maybe longer to 60 days. About the delivery term, we accept EXW, FOB, CIF, DDU. About the payment, we accept T/T or L/C.
