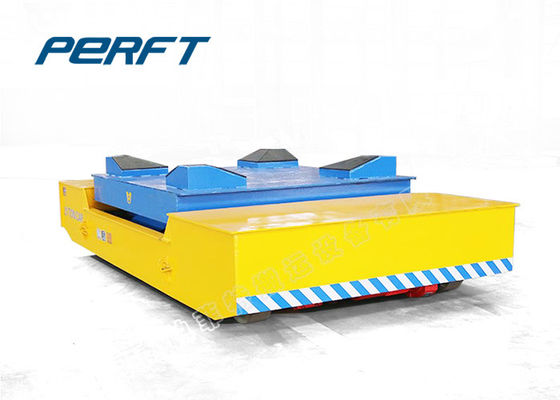

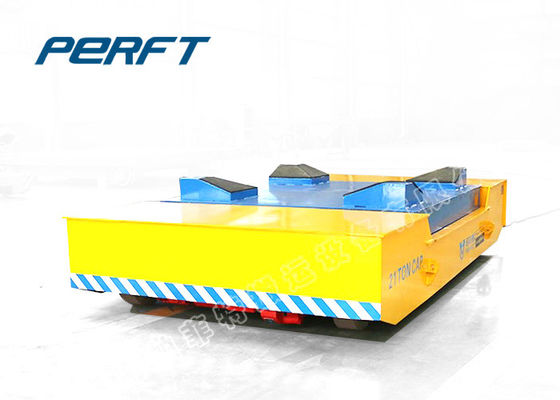

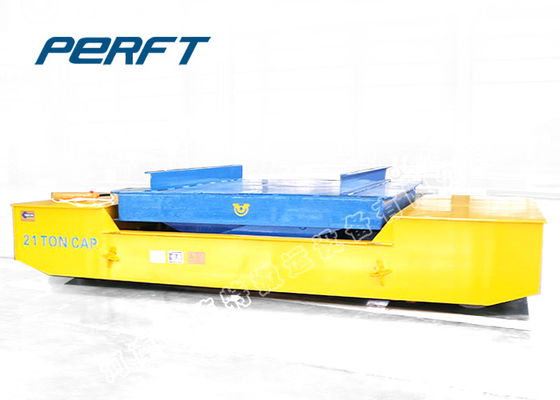

AC Power Heavy Duty Motorized Turntable Customized Table Size

AC Power Heavy Duty Motorized Turntable Customized Table Size
AC Power Heavy Duty Motorized Turntable Customized Table Size AC Power Heavy Duty Motorized Turntable Customized Table Size AC Power Heavy Duty Motorized Turntable Customized Table Size AC Power Heavy Duty Motorized Turntable Customized Table Size

Large Image :  AC Power Heavy Duty Motorized Turntable Customized Table Size

Product Details:
Place of Origin: China(Mainland)
Brand Name: PERFECT
Certification: CE ISO SGS
Model Number: BDGZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD 1200~60000
Packaging Details: trap and wooden case
Delivery Time: 20 work days after received balance payment
Payment Terms: L/C, T/T
Supply Ability: 100 sets month
Detailed Product Description
Product Name: Motorized Turntable Load Capacity: 1-300T
Table Size: Customized Height: Customized
Running Speed: 0-50/min(Adjustable) Power Sourse: Railway
Control Method: Remote Control/Pendant Color: Customized
Self-weight: 5000-20000kg Certificates: CE ISO SGS
High Light:

eavy duty equipment trailers

,

heavy load cart

AC Power Heavy Duty Motorized Turntable Customized Table Size 0

AC Power Heavy Duty Motorized Turntables

Description of Motorized Turntables
Henan Perfect Handling Equipment Co., Ltd is a collection of research and development, design, manufacturing as one of professional international manufacturing company of Motorized Turntables. Our company has been founded for 13 years and has become enterprise in the motorized Motorized Turntables business. AC Power Heavy Duty Motorized Turntable Customized Table Size 1
This BDG Motorized Turntables Control Rail Transfer Car is powered by the rails.The rails need to be insulated in erection.When the running distance is longer than 70m , the transferormer needs to be increased to raise the voltage.

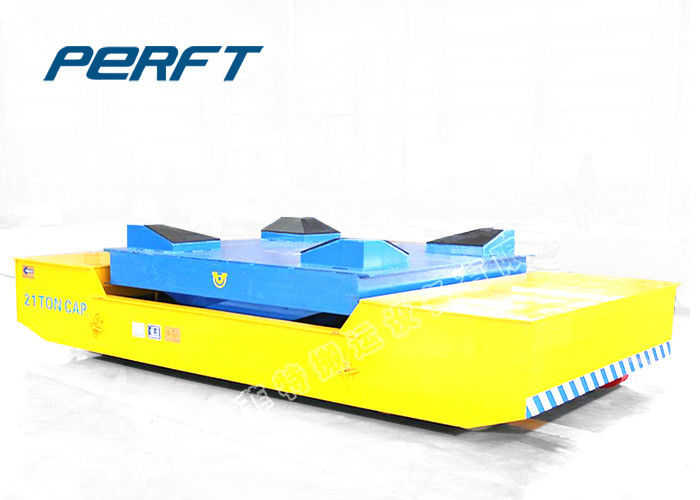

Detailed Image Of Motorized Turntables
<AC Power Heavy Duty Motorized Turntable Customized Table Size 2
Why choose us?

AC Power Heavy Duty Motorized Turntable Customized Table Size 3

Components Of Motorized Turntables

AC Power Heavy Duty Motorized Turntable Customized Table Size 4

Welding & Maching Of Motorized Turntables

Railroad Traverser



Technical Parameters Of Motorized Turntables
Model BDGZ-2t BDGZ-20t BDGZ-50t BDGZ-100t BDGZ-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 2.5 5.5 11 15
Transformer Power(KVA) 3 6.8 10 30 30
Transformer Quanity 1 1 1 1 1
Running Distance(m) 70 70 50 50 50
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100
Functions & Advantages Of Motorized Turntables
  • The Motorized Turntables are Anti-explosion,Anti-high temperature;
  • The Motorized Turntables are simple structure, low cost;Motorized Turntables
  • The Motorized Turntables are with lifting holes, convenient to shipment;
  • The Motorized Turntables are soft start, big starting power, long lifetime;
  • The Motorized Turntables are running on the cement or the shape of "S"&"C" rail;
  • The Motorized Turntables are running distance is limited; Motorized Turntables
  • The Motorized Turntables are high using frequency; Motorized Turntables  Motorized Turntables
  • The Motorized Turntables are unlimited using time;Motorized Turntables  Motorized Turntables
  • The Motorized Turntables are low voltage electricity from the railways powered;
  • The Motorized Turntables are stable start,big staring power,long lifetime.
Application Sites Of Motorized Turntables


AC Power Heavy Duty Motorized Turntable Customized Table Size 6

Packing & Deliverry Of Motorized Turntables

AC Power Heavy Duty Motorized Turntable Customized Table Size 7



Certificates

AC Power Heavy Duty Motorized Turntable Customized Table Size 8

Customer Photos

Railroad Traverser

AC Power Heavy Duty Motorized Turntable Customized Table Size 10

AC Power Heavy Duty Motorized Turntable Customized Table Size 11

After-sales Service
  • Our commitment: The load bearing safety factor of the Motorized Turntables  is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our Motorized Turntables can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.Motorized Turntables
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.Motorized Turntables  Motorized Turntables  Motorized Turntables
