| Product Name: | 10T Cable Reel Powered Industry Standard Flat Transfer Trolley On Rail | Type: | BTL |
|---|---|---|---|
| Capacity: | 2-150T | Wheel Base(mm): | 1200-7000 |
| Wheel Quantity: | 4 | Motor Power(Kw): | 0.8-15 |
| Running Speed(m/min): | 0-25 | Running Distance(m): | 25-50 |
| Material: | Q235 | ||
| High Light: | electric transfer cart,material transfer trolley |
||

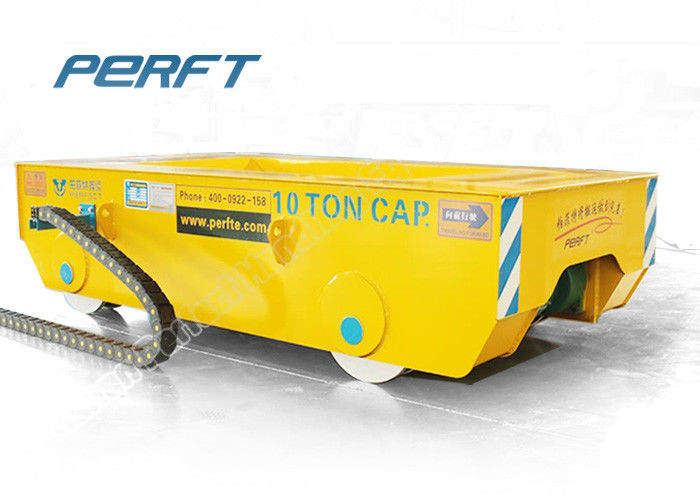

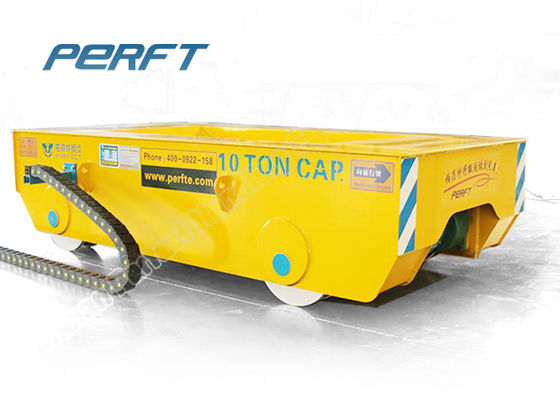

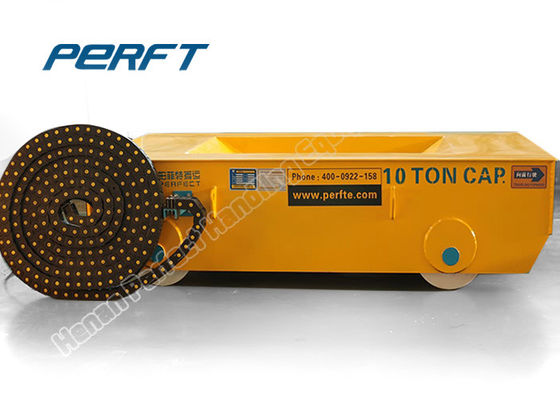

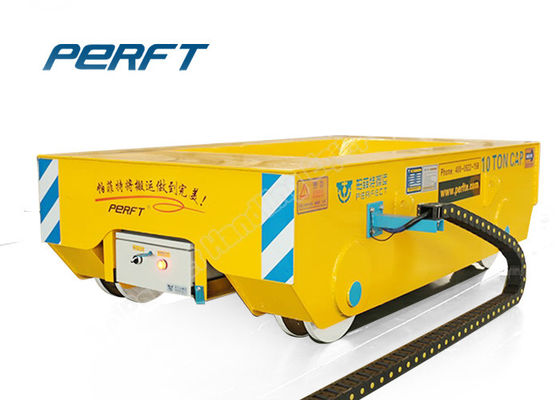

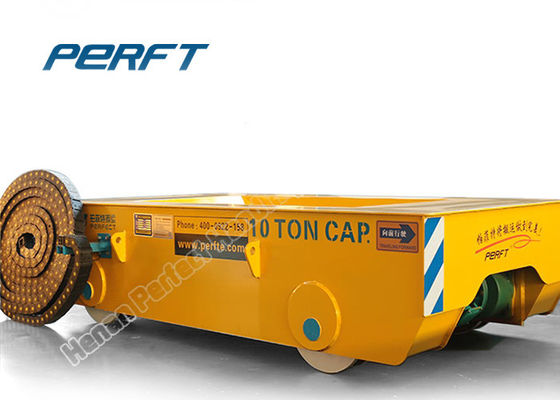

10T Cable Reel Powered Industry Standard Flat Transfer Trolley On Rail
Our 10T Cable Reel Powered Industry Standard Flat Transfer Trolley On Rail model main contains KPD, KPJ, KPTand KPX, If you are unsure as to what type of transfer cart will best serve your needs.Spending a few minutes now discussing the needs of your application could save you dollars in the future. According to your businessneeds, we will provides you with the most professional products ,our products are found in all sectors, with excellent craftsmanship andtechnical team, so we produce transfer cart applications in various industries have been widely used.
Main Components of the 10T Cable Reel Powered Industry Standard Flat Transfer Trolley On Rail
20 ton Transfer Cart powered by Cable Reel is designed for transporting heavy cargoes or equipment from one bay to another in factory. The Transfer cart can be used indoor or outdoor. The fields include metallurgy, foundry, new factory construction and shipbuilding and so on. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.
Technical parameters of the 10T Cable Reel Powered Industry Standard Flat Transfer Trolley On Rail
| Rated load(t) | BTL-2t | BTL-5t | BTL-10t | BTL-20t | BTL-30t | BTL-40t | BTL-50t | BTL-63t | BTL-80t | BTL-100t | BTL-150t |
| Wheel base(mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Wheel quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Running speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor power(Kw) | 0.8 | 1.5 | 1.5 | 2.5 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Running distance(m) | 25 | 25 | 25 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Rail inner gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Reference weight(t) | 2.3 | 3.3 | 3.8 | 5.5 | 6.3 | 7.2 | 7.6 | 10.3 | 12.1 | 13.9 |
26 |
Application and usage of the 10T Cable Reel Powered Industry Standard Flat Transfer Trolley On Rail
The Cable Flat Cart is mainly applied in assembly line,metallurgy industry(steel lade),warehouse transport,ship industry,work piece transport in workshop,lathe transport,steel factory,construction,petroleum industry,energy line,chemical industry,railway.
Packing&Delivery Details
1. Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.
2. Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.
3. Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.
