Product Details:
Payment & Shipping Terms:
|
| Product Name: | Scissor Rail Transfer Cart | Load Capacity: | 1-300T |
|---|---|---|---|
| Running Speed: | 0-50/min(Adjustable) | Control Method: | Remote Control/Pendant |
| Table Size: | Customized | Height: | Customized |
| Certificates: | CE/ISO/SGS | ||
| High Light: | electric transfer cart,load transfer trolley |
||

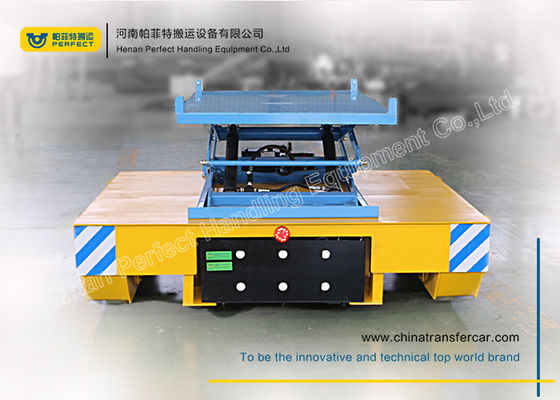

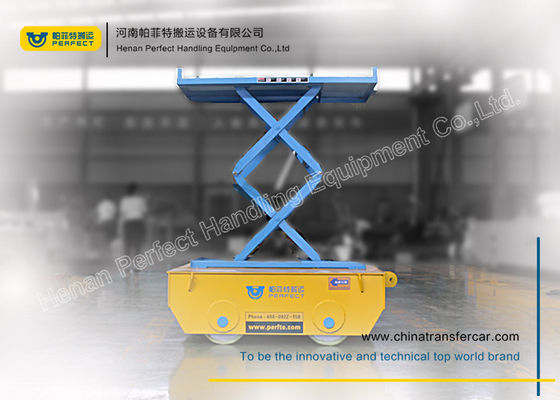

Scissor hydraulic lifting platform vehicle electric rail transfer cart
Description of scissor hydraulic lifting platform electric rail transfer cart
The frame of hydraulic lifting platform electric rail transfer cart is welded by high quality steel, with the assistant of running mechanism , gears, AC motor, current collector, the cart will function under the control system. The transfer cart is remote control, or PLC control.
The hydraulic lifting electric rail transfer cart is composed of motor, reducer, electric appliance and wheels. Due to more parts, compared with other carts, it has large size. But it can’t influence its working property.
Functions of Scissor hydraulic lifting transfer cart
Advantages of hydraulic diven scissor lifting electric rail transfer cart
Detailed description of hydraulic diven scissor lifting rail transfer cart
The hydraulic diven scissor lifting rail transfer cart is suitable for working environment with indoor transfer, such as steel factory, machinery manufacturing plant, etc.

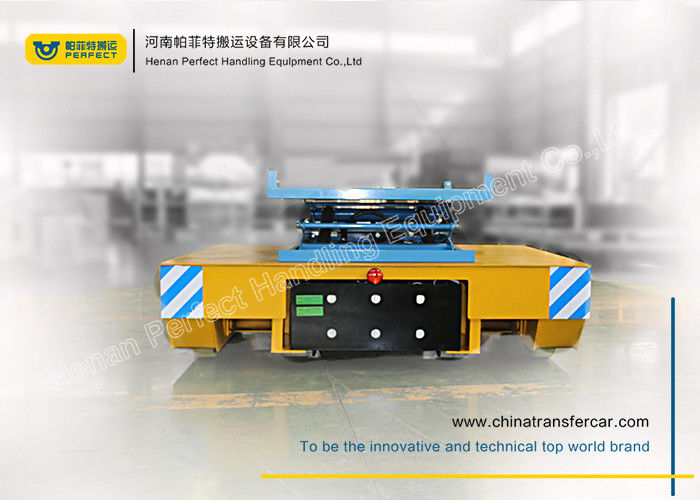

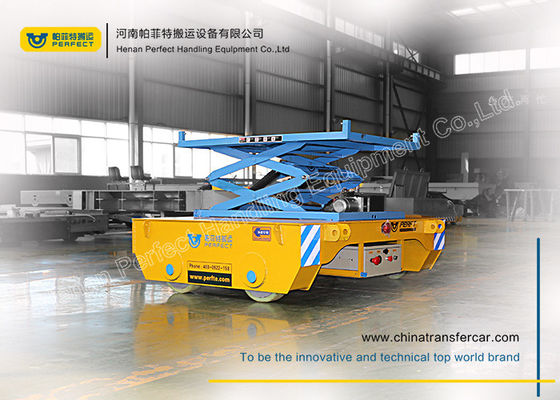

Other hydraulic lifting transfer cart Showing
Technical parameters of scissor hydraulic lifting transfer cart
| Model | KPDZ-2t | KPDZ-20t | KPDZ-50t | KPDZ-100t | KPDZ-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Transformer Power(KVA) | 3 | 6.8 | 10 | 30 | 30 | |
| Transformer Quanity | 1 | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
