Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Henan, China (Mainland) | Product Name: | Industry Engineering Heavy Load Battery Powered Car For Die Transfer |
|---|---|---|---|
| Application: | Heavy Load Transfer | Capacity: | 1-300ton |
| Speed: | 20m/min | Color: | Customized |
| Warranty: | 12 Months | ||
| High Light: | electric transfer cart,material transfer trolley |
||

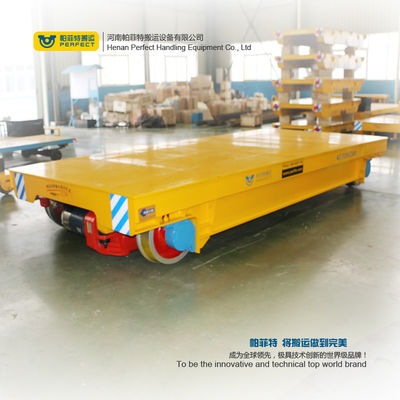

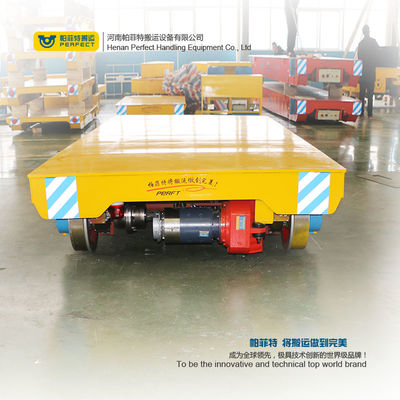

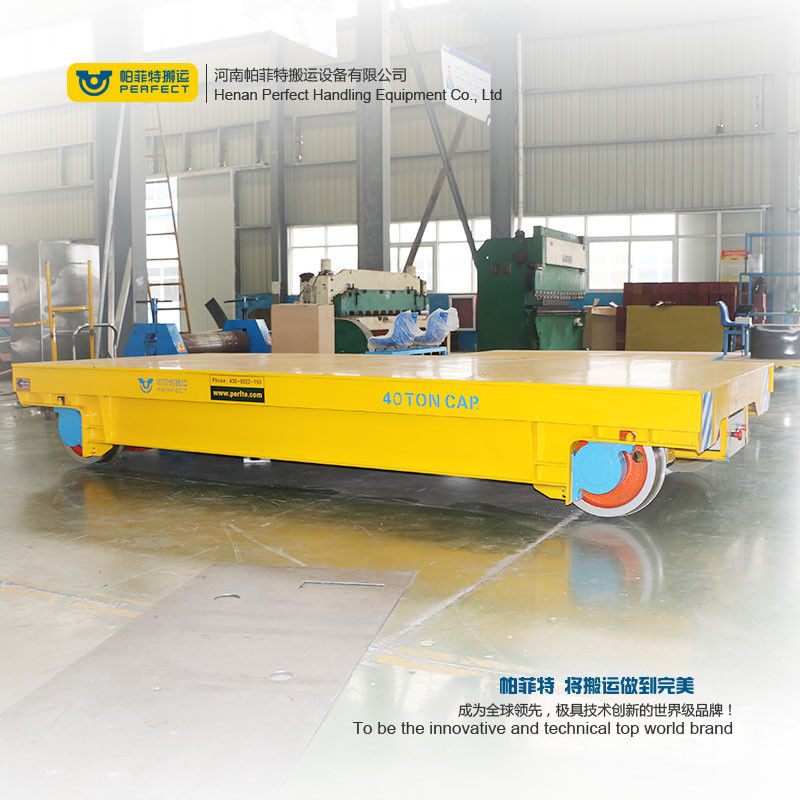

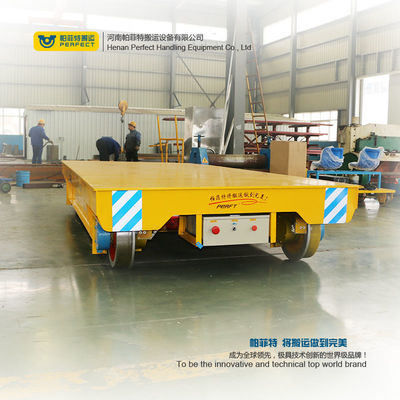

Industry Engineering Heavy Load Battery Powered Car for Die Transfer
The BDG series heavy load battery powered car is powered by battery. The battery is installed inside the car. The BDG series heavy load battery powered car is able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track.The BDG series heavy load battery powered car has been widely applied in these fields, such as construction, steel plant, shipyard, chemical industry,etc. The BDG heavy load battery powered car is available in inflammable and explosive environment or used as ferry car. The BDG series heavy load battery powered car is suitable for long distance transportation and low frequency, since its travel distance is unlimited and low requirement to the track.
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
