| Product Name: | Electric Flat Bed Industry Electric Trackless Car | Material: | Q235 |
|---|---|---|---|
| Load Capacity: | 1-300T | Application: | Industrial Filed |
| Warranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery |
| High Light: | load transfer trolley,material transfer trolley |
||
Electric Flat bed industry electric trackless car
Flat bed industry electric trackless car, literally speak, it is a electric trackless car without rails, which is the special type compared with traditional rail vehicle. More importantly, it has been new favorite in the industry transport field all over the world with hot market. Especially for the workshop that it exists unfixed running distance.
The BWP series Electric Trackless Transfer Car usually,accumulator,mains powered and generator are choose as power source.The current is supplied and generator are choose as power source.The Electric Trackless Transfer Flat Car is supplied to pulling motor through electric control system,which makes the Transfer Car start,stop,move background,turn around and realize other functions.

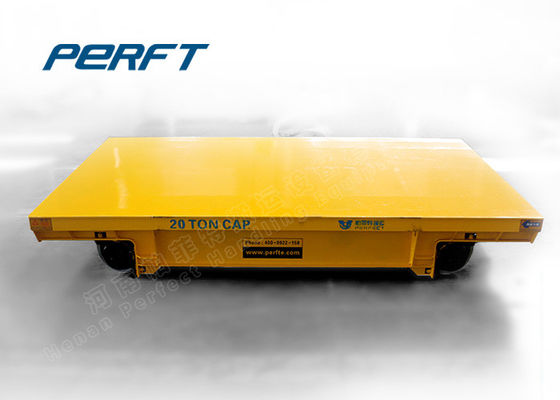

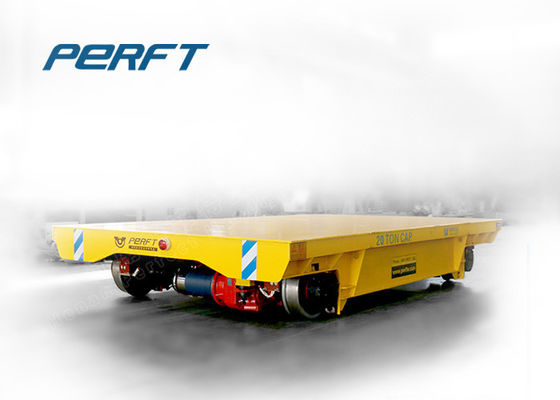

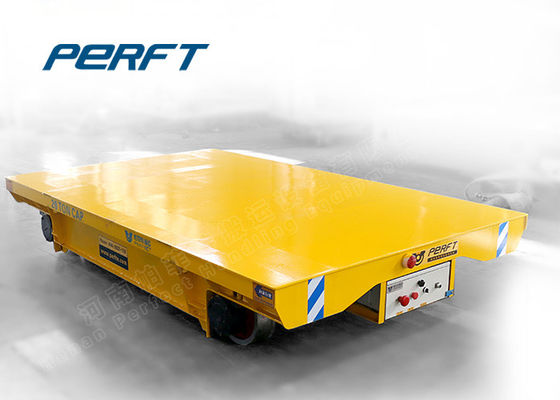

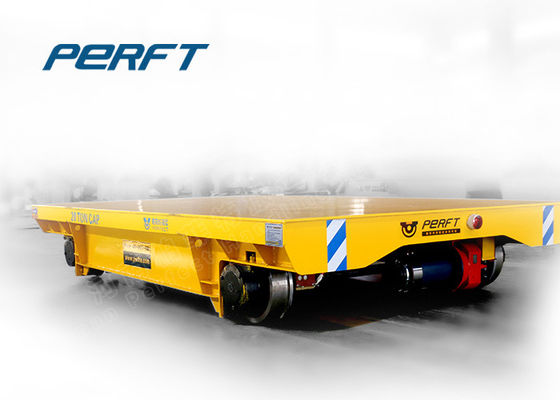

Detailed Image of Industrial Cart Material Transfer Cars
The Transfer Cart consisted of power source,gear train,steel structure bearing frame,steering gear,running gear,control system and fault diagnosis module to better the Electric Trackless Transfer Flat Car.
Technical parameter table of Electric Trackless Transfer Flat Car
| Rated load | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheels base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
Application of Electric Trackless Transfer Flat Car
Stable and flexible during the turning in small space, we have optimized the steering mechanism, wheel press and frame rigidity to make it available for linkage of several trolleys. The Electric Trackless Transfer Flat Car has been highly approved by our customers.
