Heavy dynamics steerable rail transfer cart Heavy Duty Plant Trailer with hydraulic lifting

Heavy dynamics steerable rail transfer cart Heavy Duty Plant Trailer with hydraulic lifting
Heavy dynamics steerable rail transfer cart Heavy Duty Plant Trailer with hydraulic lifting Heavy dynamics steerable rail transfer cart Heavy Duty Plant Trailer with hydraulic lifting Heavy dynamics steerable rail transfer cart Heavy Duty Plant Trailer with hydraulic lifting Heavy dynamics steerable rail transfer cart Heavy Duty Plant Trailer with hydraulic lifting

Large Image :  Heavy dynamics steerable rail transfer cart Heavy Duty Plant Trailer with hydraulic lifting

Product Details:
Place of Origin: China(Mainland)
Brand Name: PERFECT
Certification: CE ISO SGS
Model Number: BXC
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 1000~15000 SET
Packaging Details: trap and wooden case
Delivery Time: 20 work days after received balance payment
Payment Terms: L/C, T/T
Supply Ability: 100 SETS MONTH
Detailed Product Description
Product Name: Heavy Dynamics Steerable Rail Transfer Cart With Hydraulic Lifting Material: Q235
Usage: Heavy Duty Capacity: Customized
Color: Customized Application: Transfer Materials
Certificates: CE ISO SGS
High Light:

eavy duty equipment trailers

,

heavy duty industrial carts

Railway Steerable Cart

Heavy dynamics steerable rail transfer cart with hydraulic lifting



Product Description





The BXC series Railway Steerable Cartis powered by battery. The battery is installed inside the car. The BXC series Railway Steerable Cartis able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track.The BXC series Railway Steerable Carthas been widely applied in these fields, such as construction, steel plant, shipyard, chemical industry,etc. The BXC Railway Steerable Cart is available in inflammable and explosive environment or used as ferry car. The BXC series Railway Steerable Cart is suitable for long distance transportation and low frequency, since its travel distance is unlimited and low requirement to the track.
Railway Steerable Cart

Technical Parameters
ModelBXC-2tBXC-20tBXC-50tBXC-100tBXC-150t
Rated Load(t)22050100150
Table Size(mm)Length(L)200040005500650010000
Width(W)15002200250028003000
Heigth(H)4505506509001200
Wheel Base(mm)12002800420049007000
Rail Inner Gauge(mm)12001435143520002000
Wheel Diameter(mm)270350500600600
Wheel Quantity44448
Ground Clearance(mm)5050507575
Running Speed(min)0-250-200-200-200-18
Motor Power(kw)12.251015
Battery Capacity180180330440600
Battery Voltage2448487272
Running Time When Full Load4.3243.33.22.9
Running Distance for One Charge(Km)6.54.843.83.2
Max Wheel Load(KN)14.477.7174343.8265.2
Reference Weight(t)2.85.9814.626.8
Recommended Rail ModelP15P24P43QU100QU100
Detailed Images

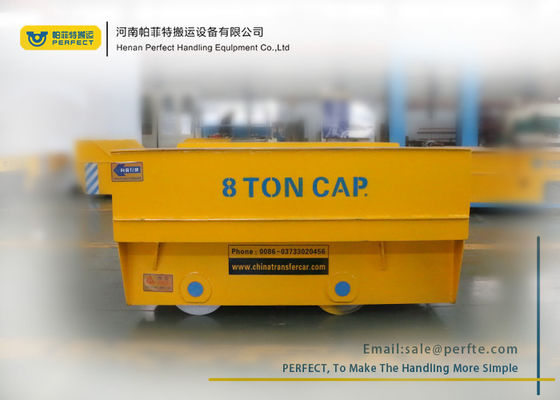

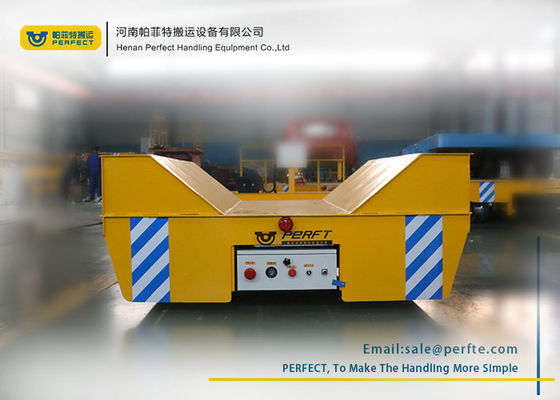

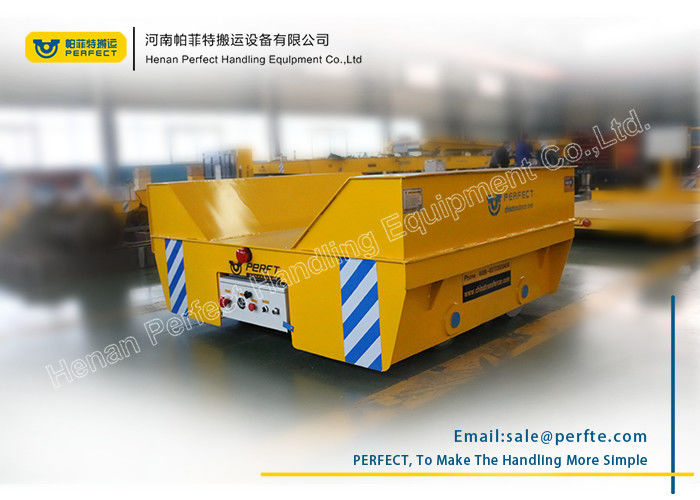

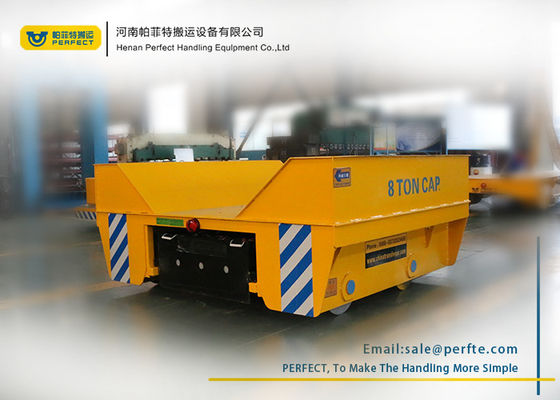

Detailed Image Of Railway Steerable Cart

Railway Steerable Cart





Components Of Railway Steerable Cart

Railway Steerable Cart

Functions & Advantages Of Railway Steerable Cart
  • The Railway Steerable Cartis Anti-high temperature,Anti-high explosion;
  • The Railway Steerable Cartis powered by battery;
  • With lifting holes, Railway Steerable Cartis convenient to shipment;
  • The Railway Steerable Carthas a feature of stable start, big starting power, long lifetime;
  • The Railway Steerable Cartcan run on the C-form track or S-form track and L-form track;
  • Running distance of Railway Steerable Cartis unlimited;
  • Safe and convenient operation is available for this Railway Steerable Cart;
  • High using frequency for Railway Steerable Cart.
Application Site



Application Sites Of Railway Steerable Cart
The Railway Steerable Cartis mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).

Railway Steerable Cart


Packaging & Shipping



  • The Railway Steerable Cartbody is packed with tarp, the Railway Steerable Cartwheel and parts will be packed with wooden case.
  • For lenght is less than 5.9m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container.If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container(20 or 40 ft). If the Railway Steerable Cartis beyond above dimension, It needs to be transported by BB container.Determine the size & material of the box according to the shape & number of products.
  • Price Term: EXW, FOB, CIF, C&F,DDU, DDP.

Railway Steerable Cart

Certifications



Railroad Traverser


Our Services



  • Our commitment: The load bearing safety factor of the Railway Steerable Cartis no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our Railway Steerable Cartcan't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
