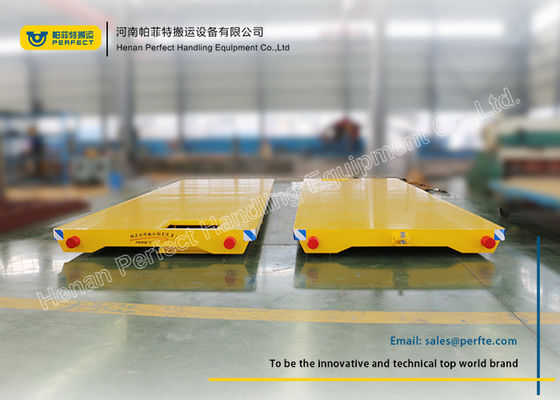

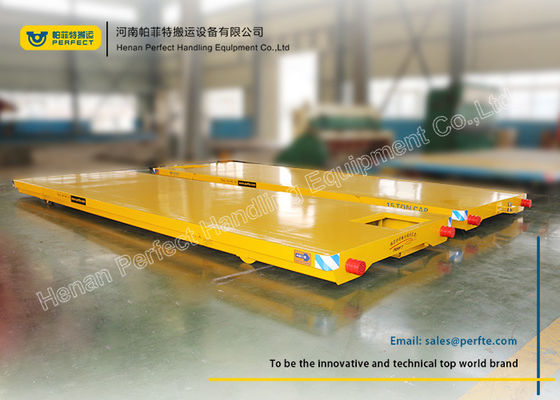

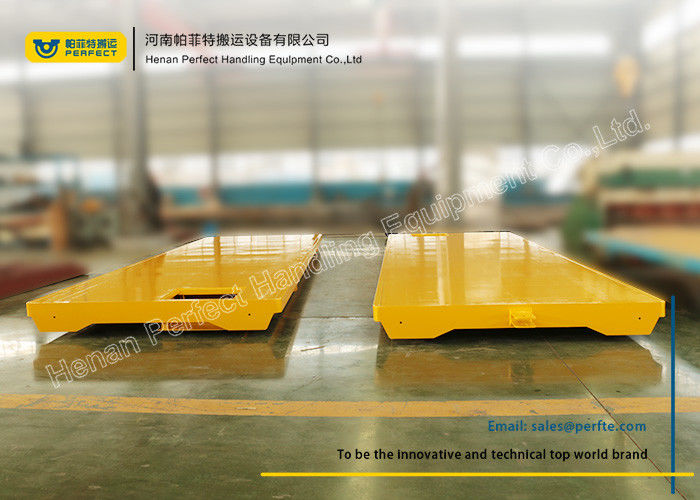

Stainless steel Industrial Transfer Trolley / heavy duty railway motorized transfer trolley

Stainless steel Industrial Transfer Trolley / heavy duty railway motorized transfer trolley
Stainless steel Industrial Transfer Trolley / heavy duty railway motorized transfer trolley Stainless steel Industrial Transfer Trolley / heavy duty railway motorized transfer trolley Stainless steel Industrial Transfer Trolley / heavy duty railway motorized transfer trolley Stainless steel Industrial Transfer Trolley / heavy duty railway motorized transfer trolley

Large Image :  Stainless steel Industrial Transfer Trolley / heavy duty railway motorized transfer trolley

Product Details:
Place of Origin: China(Mainland)
Brand Name: PERFECT
Certification: CE ISO SGS
Model Number: BTL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000~40000 set
Packaging Details: trap and wooden case
Delivery Time: 20 work days after received balance payment
Payment Terms: L/C, T/T
Supply Ability: 100 sets month
Detailed Product Description
Product Name: Steel Heavy Duty Railway Motorized Transfer Trolley Item: Cart
Material: Q235 Capacity: Customized
After-sales Service Provided: Engineers Available To Service Machinery Running Speed: 0-20m/min
Certificates: CE ISO SGS
High Light:

electric transfer cart

,

material transfer trolley

railway motorized transfer trolley



Stainless steel heavy duty railway motorized transfer trolley

Stainless steel heavy duty railway motorized transfer trolleyis usually used at ship yard, plant and factory, certain production line. The railway motorized transfer trolley is powered by trailing cable. The railway motorized transfer trolley was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. railway motorized transfer trolley construction is based on our world renowned die railway motorized transfer trolleys and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our railway motorized transfer trolley is available in a number of configurations specifically designed to suit the needs of our customers.



railway motorized transfer trolley

Technical Parameter of railway motorized transfer trolley
Model BTL-2t BTL-20t BTL-50t BTL-100t BDGS-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 2.5 5.5 11 15
Running Distance(m)
0-20
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.3 5.5 7.6 13.9 26
Recommended Rail Model P15 P24 P43 QU100 QU100
Detial of railway motorized transfer trolley

injection mould transfer cart

NOTES:

  • Flat deck or fixtures for transporting special payload;
  • Custom deck configurations may include lift, tilt, or rotate function;
  • Payload from 1 ton to 300 tons;
  • Fixed speed or variable speed capabilities;
  • With forward or backing driving;
  • Options for automatic control;
  • Available safety equipment includes horn, lights, emergency stop, bumpers and detector.
Components of railway motorized transfer trolley

railway motorized transfer trolley



Technical Process of railway motorized transfer trolley
  • 1. Moving the steel plate from storage area to cutting process area by crane;
  • 2. According to the cutting drawing cutiting steel plate by the numercial control cutting machine;
  • 3. The mobile welding machine is used for precise welding of diferent parts of the frame;
  • 4. Fine grinding and weld inspection of the weld joint;
  • 5. For every car primer spray, toccat, perfect antirust, ensure th ebeauftiful appearance;
  • 6. Installation of the whole internal parts of the wheel and the car body;
  • 7. Commissioning the vehicle operation and electrical parts, then test after completion of commissoning:
  • 8. Zero load test and load test before shipping.

railway motorized transfer trolley

railway motorized transfer trolley

Application Sites of railway motorized transfer trolley
The railway motorized transfer trolley is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).

railway motorized transfer trolley

Customers Visiting

railway motorized transfer trolley

Package of railway motorized transfer trolley
Our railway motorized transfer trolley not only have sold across the country, but also exported to US, Germany, Thailand, Netherlands, South Africa, Syria, Turkey, Nepal etc. The railway motorized transfer trolley body is packed with tarp, and the wheel and parts of the railway motorized transfer trolley will be packed with wooden case. According the table size and quantity, the railway motorized transfer trolley would be transported to clients by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.

railway motorized transfer trolley

Certificates

railway motorized transfer trolley

Our Factory

railway motorized transfer trolley
