Product Details:
Payment & Shipping Terms:
|
Height Of Rail: | Customized | Quantity Of Wheel: | 4.8.10 |
---|---|---|---|
Material: | Carbon Steel | Steering Mode: | 2.4 |
Table Size: | Customized | Product Name: | Non Motor Heavy Duty Plant Trailer Warehousing Material Handling Transfer Carts |
High Light: | eavy duty equipment trailers,heavy duty industrial carts |

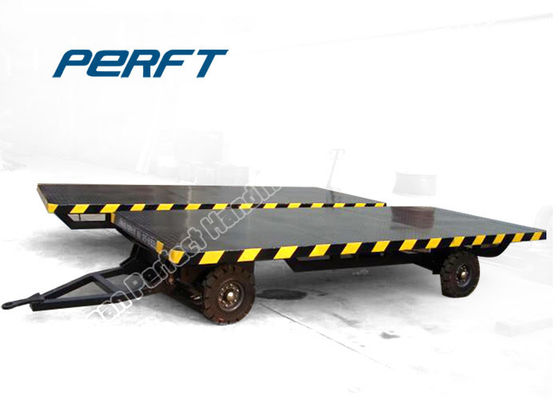

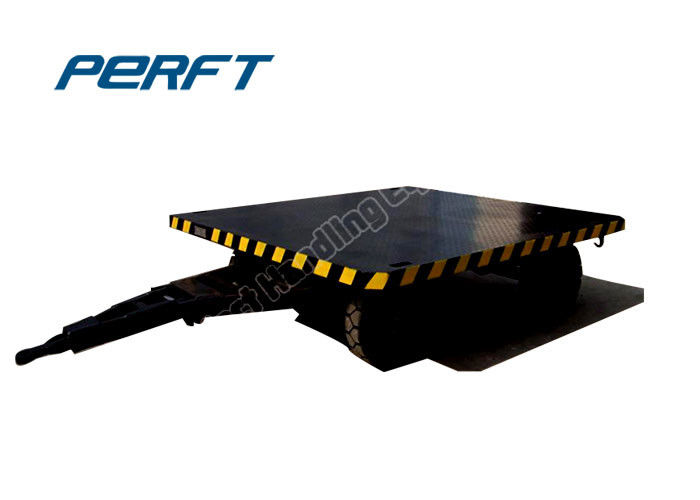

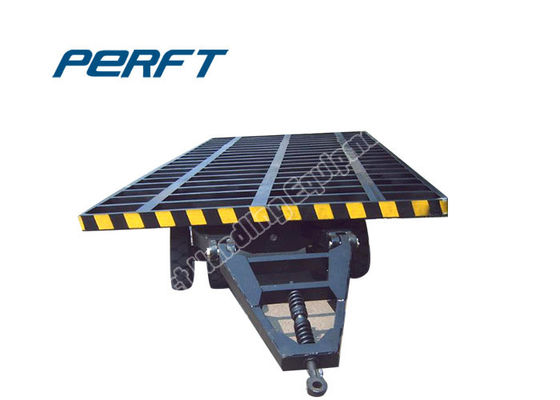

non motor heavy duty Plant Flat Bed Trailer warehousing material handling transfer carts
The non motor heavy duty Plant Flat Bed Trailer warehousing material handling transfer carts is important equipment for modern logistic transportation, which is very effective and simple way to improve the production efficiency. The non motor heavy duty Plant Flat Bed Trailer warehousing material handling transfer carts has several advantages, such as high bearing capacity, high efficiency, and lower cost. Usually one or more Non-power Cart could be towed by one tractor. The Non-power non motor heavy duty Plant Trailer warehousing material handling transfer carts is widely used in a lot of place, such as airports, sea ports, railway stations, factories and large warehouses, which will greatly improve the transportation efficiency and reduce the cost of forklift and labor.
Advantage and Functions of non motor heavy duty Plant Flat Bed Trailer warehousing material handling transfer carts
1.The non-power Plant Flat Bed Trailer will apply pressed-on solid rubber tire, which makes the trailer with low height but heavy load capacity
2.The wheels quantity of the non-power Plant Flat Bed Trailer is from 8-16, and service life of wheels will be over than 5 years, which is very safe, reliable and cost saving
3.Can be customized
4.Can be towed together if need
5.Running distance is no limited
6.The height of towing hook issuitable for different tractor, forklift. There are two springs on the towing device, which will protect the trailer and cargo when it is started or suddenly stopped.
7.The turning device is large rotation support as the fifth wheel, which is usually used in excavating machinery and truck crane.
9.The Table Size and capacity can be customized
10.The Quantity of Wheel is 4,8,10...
Main componence of the non motor heavy duty Plant Flat Bed Trailer warehousing material handling transfer carts

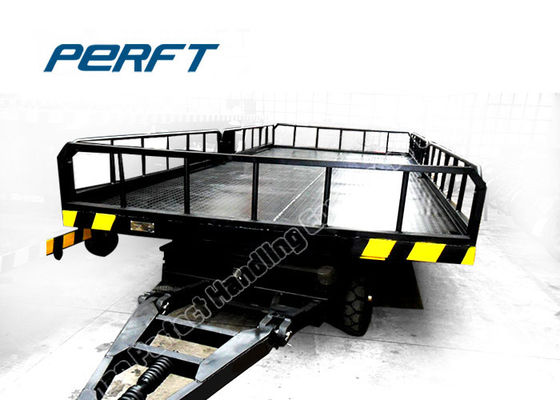

The non motor heavy duty Plant Flat Bed Trailer warehousing material handling transfer carts can be fitted with guardrails according to your requirements,like bellows:
Technical parameters of the non motor heavy duty Plant Flat Bed Trailer warehousing material handling transfer carts
Liad Capacity | 1-30t |
Table Size | Customized |
Quantity of Wheel | 4.8.10 |
Diameter | Design by Load Capacity |
Steering Mode | Two wheels or four wheels |
Shock Busorber | Customized |
Color | Customized |
Tow Device | Hing Joint |
Height of Rail | Customized |
Surface Treatment | Sand-blasting,Anti rust primer |
Application of non motor heavy duty Plant Flat Bed Trailer warehousing material handling transfer carts
The non motor heavy duty Plant Flat Bed Trailer warehousing material handling transfer carts is suitable for a lot of areas, such chemical industry, household appliances, ceramics, metal, machinery, logistics and other industries. And it is widely used for short distance transport of paper making, paint, metallurgy, mound machinery and other industries.
