75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport

75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport
75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport 75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport 75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport 75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport

Large Image :  75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport

Product Details:
Place of Origin: Henan China
Brand Name: Industrial Rail Transfer Trolley
Certification: CE ISO SGS
Model Number: Industrial Rail Transfer Trolley
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Usd2900-5600/set
Packaging Details: Trap and wooden case
Delivery Time: 20 work days after received balance payment
Payment Terms: L/C, T/T
Supply Ability: 30sets/week
Detailed Product Description
Motor Power: 1-15 Material: Carbon Steel
Product Name: 75 Ton Cable Drum Motorized Industrial Rail Transfer Trolley For Factory Material Transport Type: Industrial Rail Transfer Trolley
Rail Inner Gauge(mm): 1200-2000 Wheel Diameter(mm): 270-600
Ground Clearance(mm): 50-75
High Light:

load transfer trolley

,

material transfer trolley

75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport



The 75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport powered by cable drums which is installed at the bottom of the automated transfer track car. The 75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport is designed for transporting cargoes or equipment from one bay to another in factory,from indoor to outdoor. The 75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport has widely applied in the industry transportation field, our company can designed the rail transfer car to meet our customers' demand.



Advantages and functions of 75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport

  • The cable drum motorized Industrial Rail Transfer Trolley can run on the straight railways to carry many material, workpiece, workpiece;
  • The cable drum motorized Industrial Rail Transfer Trolley can be applied in many occasions, such as easy explosion, easy corrasion, high temperature;
  • AC motor,simple structure,not limited for the using time;
  • The cable drum motorized Industrial Rail Transfer Trolley is powered by cable drum, so there is not strict requirement for the construction of the railway ,and the running distance should accord to the length of the cable.
  • Cost is not high, easy to operate and maintenance;
  • The cable drum motorized Industrial Rail Transfer Trolley are customized as per your true demand.

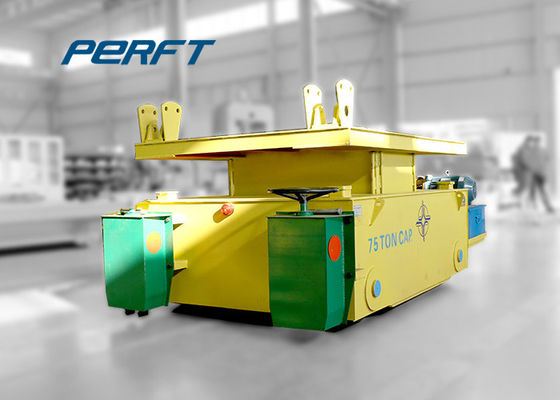

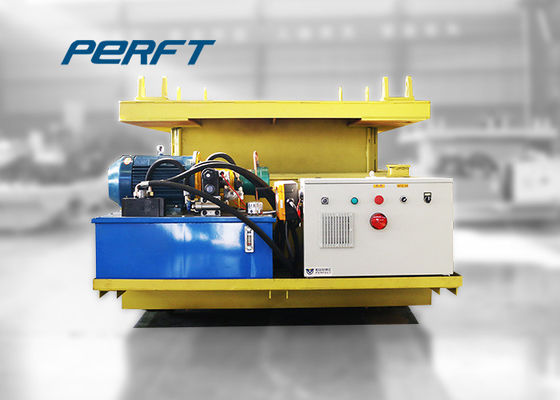

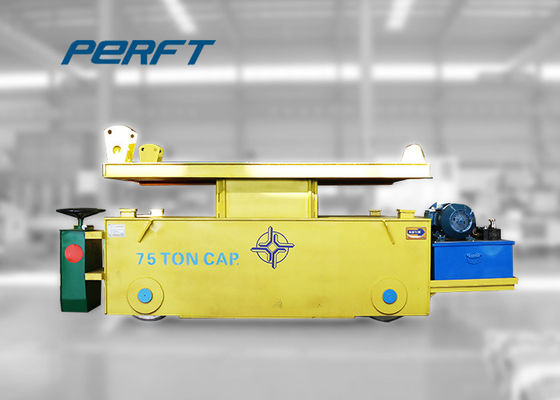

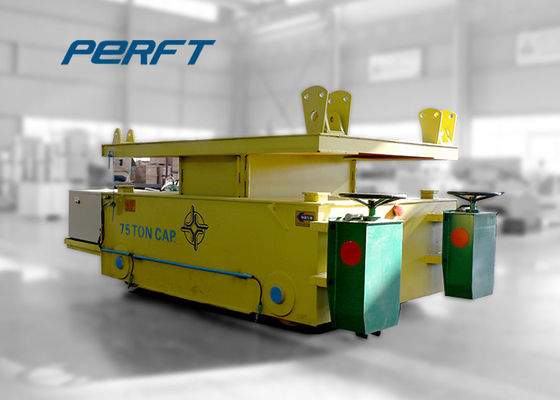

Detailed Image of 75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport

75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport



Technical parameter table of 75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport

Model BJT-2t BJT-20t BJT-50t BJT-100t BJT-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
  Width(W) 1500 2200 2500 2800 3000
  Heigth(H) 500 600 700 1000 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 2.5 5.5 11 15
Running Distance(m) 25 30 50 50 50
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2



Application of 75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport

The 75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport has been widely used with hot market. Any interests and problems, please contact with us in any time.We will try our best to help you. hope rich experience can help you well.

75 ton cable drum motorized Industrial Rail Transfer Trolley for factory material transport
