remote control or push button trackless flatbed transfer car for material transfer

remote control or push button trackless flatbed transfer car for material transfer
remote control or push button trackless flatbed transfer car for material transfer remote control or push button trackless flatbed transfer car for material transfer

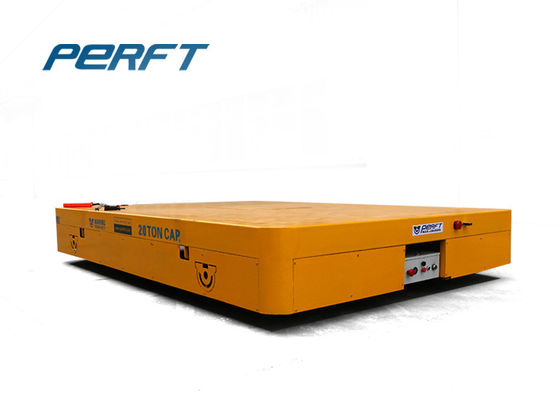

Large Image :  remote control or push button trackless flatbed transfer car for material transfer

Product Details:
Place of Origin: China(mainland)
Brand Name: trackless flatbed transfer car
Certification: CE ISO SGS
Model Number: trackless flatbed transfer car
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 4000~7500 set
Packaging Details: trap and wooden case
Delivery Time: 20 work days after received balance payment
Supply Ability: 100 sets month
Detailed Product Description
Table Size: Customized As Practical Needs Height: Customized
Running Speed: 0-20/min(Adjustable) Capacity: 1-300ton
Application: Industrial Filed After-sales Service Provided: Engineers Available To Service Machinery
High Light:

electric transfer cart

,

material transfer trolley

remote control or push button trackless flatbed transfer car





The trackless flatbed transfer car is our most popular trolley. It is used to move dies,coils or materials between the pressroom and the die storage and maintenance area. This trackless flatbed transfer car has the advantage of moving the entire length of the manufacturing facility, where dies that are moved by cranes are limited to the distance of the crane travel, or must be transferred from crane bay to crane bay. Our standard heavy duty design is controlled by a hand held push button controller with small turning radius.
002002017080916073600021920170810163541500190201712131503470



Technical Parameter of trackless flatbed transfer car​

Model BWP-5t BWP-20t BWP-30t BWP-40t BWP-50t
Rated Load(t) 5 20 30 40 50
Max. Wheel Load (t) 2.8 5.6 7.7 10 12
Ground Requirement Cement floor or Steel plate ground
Ground Clearance(mm) 50 50 50 50 50
Table Size (mm) 3000 X 2000 4500 X 2200 5000 X 2200 5500 X 2300 6000 X 2300
Height (mm) 450 600 650 700 700
Wheel Base (mm) 1500 1700 1700 1800 1800
Axles Distance (mm) 2500 3900 4300 4800 5200
Turning Radius (mm) 2501 3901 4301 4801 5201
Turning Structure Mechanical
Motor Power (KW) 3.5 7 10 12 15
Wheel Diameter (mm) 300 (4) 400 (4) 400 (6) 500 (6) 500 (6)
Wheel Material ZG55+hydropurture
Running Speed (m/min) 0-15 0-12
Brake Principle Electric magnetic brake
Operation Method Raido Remote Control
Battery Maintainance Free of maintainance
Charger's Installation Installed on cart Split-type
Cart Color Customized
Charger's Function Automatically cut off the power when the battery is fully charged
Radar Control 3-0.3 m, Automatic stop for obstacles
Warning Equipment Horn and Flash Light
Other Functions Turning light, night light and power display

 trackless flatbed transfer car
