5 ton Electric Material Handling Trackless Transfer Cart for Industrial Material Handling

5 ton  Electric Material Handling Trackless Transfer Cart for Industrial Material Handling
5 ton  Electric Material Handling Trackless Transfer Cart for Industrial Material Handling 5 ton  Electric Material Handling Trackless Transfer Cart for Industrial Material Handling 5 ton  Electric Material Handling Trackless Transfer Cart for Industrial Material Handling 5 ton  Electric Material Handling Trackless Transfer Cart for Industrial Material Handling

Large Image :  5 ton Electric Material Handling Trackless Transfer Cart for Industrial Material Handling

Product Details:
Place of Origin: Henan china
Brand Name: Electric Trackless Transfer Flat Car
Certification: CE ISO SGS
Model Number: Electric Trackless Transfer Flat Car
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD2000-5000/SET
Packaging Details: Trap and wooden case
Delivery Time: 20 work days after received balance payment
Payment Terms: L/C, T/T
Supply Ability: 30sets/week
Detailed Product Description
Running Speed(m/min): 20 Material: Carbon Steel
Product Name: 5 Ton Electric Material Handling Trackless Transfer Cart For Industrial Material Handling Motor Power(Kw): 3.5-15
Cart Weight(t): 4.3-10.5 Running Speed(m/min): 0-15
Turnning Radius(mm): 2501-5201
High Light:

material transfer trolley

,

industrial motorized carts

5 ton Electric Material Handling Trackless Transfer Cart for Industrial Material Handling

5 ton Electric Material Handling Trackless Transfer Cart for Industrial Material Handling



The 5 ton Electric Material Handling Trackless Transfer Cart for Industrial Material Handling get rid of the limits of the orbit. The supply power of the 5 ton Electric Material Handling Trackless Transfer Cart for Industrial Material Handling can be choose,such as:battery powered,rail powered,cable reel powered,cable drum,etc.The PLC system of the 5 ton Electric Material Handling Trackless Transfer Cart for Industrial Material Handling can be easy to operate.The  capacity and table size can be customized.

5 ton Electric Material Handling Trackless Transfer Cart for Industrial Material Handling



Advantages and functions of 5 ton Electric Material Handling Trackless Transfer Cart for Industrial Material Handling

1.Easy to operate.

2.Body light , easy to control .

3.The capacity can be choose during the 0-150 if need.

4.The Ground Clearance of the trackless transfer cart is 50mm.

5.The Trackless Transfer Cart is suitable for factory material transportation.

6.The Trackless Transfer Cart is required cement ground.

7.The Trackless Transfer Cart can turn to 360 degree.

8.The Trackless Flat Transfer Cart could be a flat table or a fence.(Customizable)

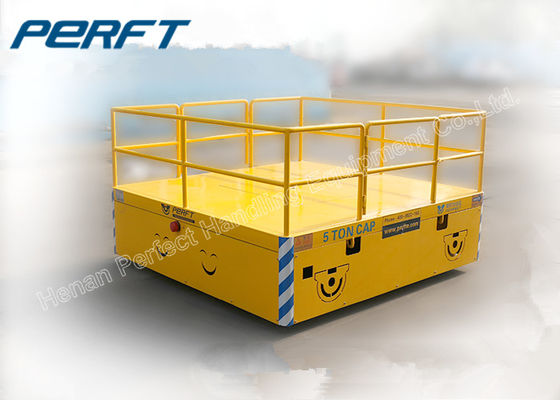

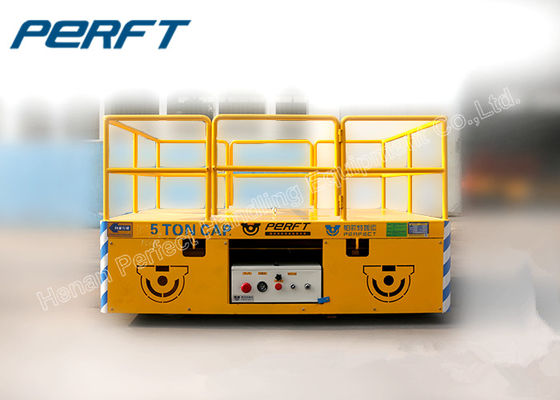

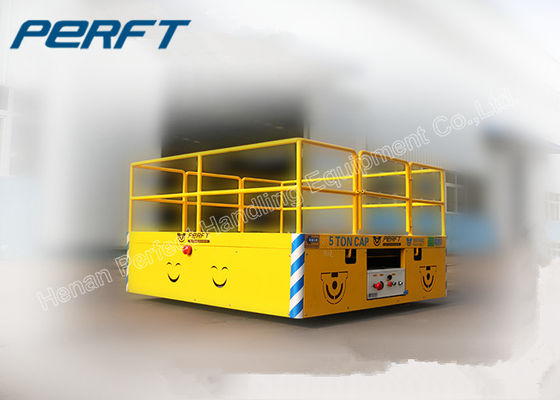

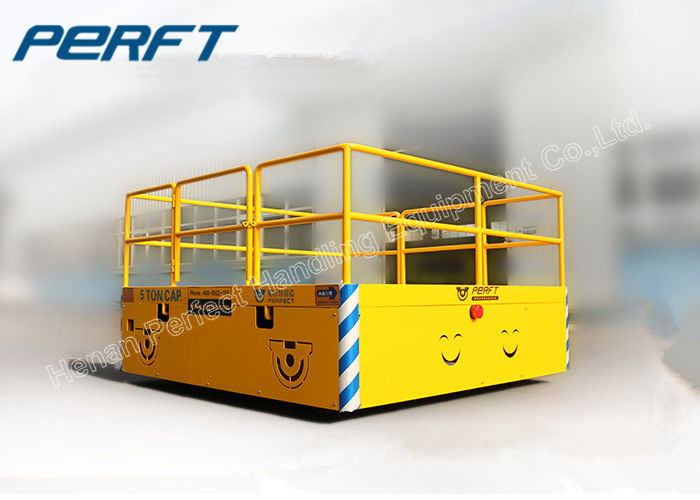

Detailed Image of 5 ton Electric Material Handling Trackless Transfer Cart for Industrial Material Handling

The 5 ton Electric Material Handling Trackless Transfer Cart for Industrial Material Handling consisted of power source,gear train,steel structure bearing frame,steering gear,running gear,control system and fault diagnosis module to better the 5 ton Electric Material Handling Trackless Transfer Cart for Industrial Material Handling.

5 ton Electric Material Handling Trackless Transfer Cart for Industrial Material Handling



Technical parameter table of 5 ton Electric Material Handling Trackless Transfer Cart for Industrial Material Handling

Rated Load(T) 5 10 15 20 30 40 50
Ground Clearance(mm) 50 50 50 50 50 50 50
Wheel Base(mm) 1500 1500 1500 1700 1700 1800 1800
Turnning Radius(mm) 2501 3101 3401 3901 4301 4801 5201
Axles Distance(mm) 2500 3100 3400 3900 4300 4800 5200
Motor Power(Kw) 3.5 5 6 7 10 12 15
Running Speed(m/min) 0-15 0-15 0-15 0-15 0-15 0-12 0-12
Cart Weight(t) 4.3 5.3 6.6 7.9 8.8 10 10.5
Impacted Rated Load(t) 7.5 15 22.5 30 45 60 75
Battery Capacity(Ah) 180 160 180 180 250 300 330
Battery Voltage(v) 36 48 48 48 48 48 48
Wheel Quantity 4 4 4 4 44 4 4
Ground Requirement Cement Floor Cement Floor Cement Floor Cement Floor Cement Floor Cement Floor Cement Floor



Application of 5 ton Electric Material Handling Trackless Transfer Cart for Industrial Material Handling

Stable and flexible during the turning in small space, we have optimized the steering mechanism, wheel press and frame rigidity to make it available for linkage of several trolleys. The 5 ton Electric Material Handling Trackless Transfer Cart for Industrial Material Handling has been highly approved by our customers.

5 ton Electric Material Handling Trackless Transfer Cart for Industrial Material Handling
