Product Details:
Payment & Shipping Terms:
|
| Color: | Customized | Running Speed(m/min): | 20 |
|---|---|---|---|
| Material: | Carbon Steel | Product Name: | 30 T Capacity Type Trackless Industrial Transfer Trailer For Workshop Cargo Transportation |
| Motor Power(Kw): | 3.5-15 | Ground Clearance(mm): | 50 |
| Running Distance For Once Charge(KM): | 6.5 | Type: | Electric Trackless Industrial Transfer Trolley |
| High Light: | electric transfer cart,load transfer trolley |
||
30 T capacity type trackless Industrial Transfer Trailer for workshop cargo transportation
The BWP series 15 T capacity type trackless Industrial Transfer Trailer for workshop cargo transportation is usually battery powered,and the supply power can be customized according to your requirements.The capacity and table size can be customizable.The PLC is also alternative if The 30 T capacity type trackless Industrial Transfer Trailer for workshop cargo transportation is necessary.The running speed of the 30 T capacity type trackless Industrial Transfer Trailer for workshop cargo transportation is 0-25min.
Advantages and functions
1.Do not rely on the operation of the guide rail
2.Double direction run and 360 degree steering
3.C drive, large bearing capacity
4.Small turning radius, flexible operation
5.No rails
6.Safe devices are installed
7.Customization can be supported

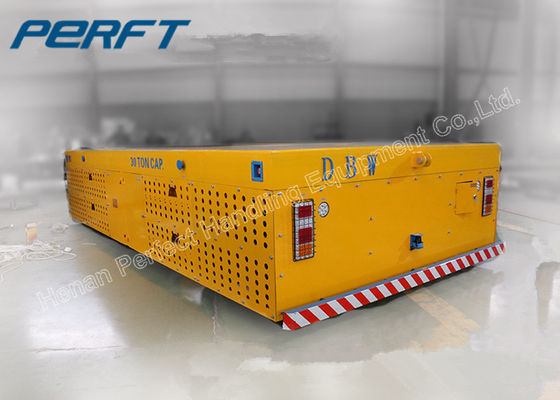

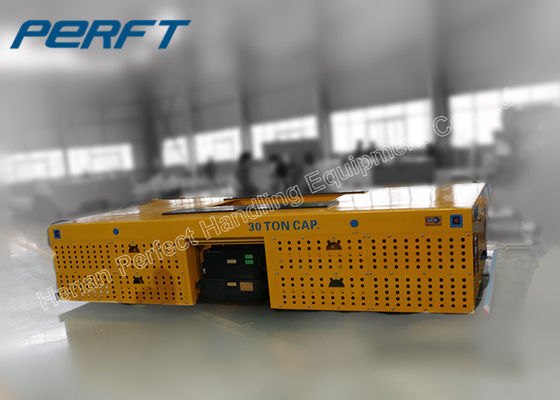

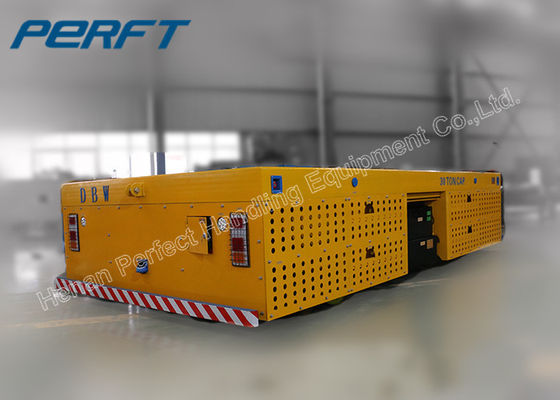

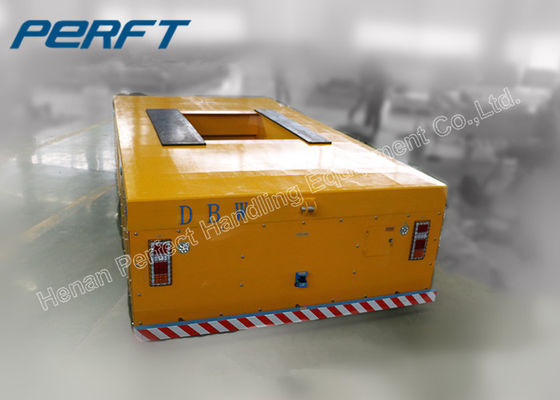

Detailed Image
The 30 T capacity type trackless Industrial Transfer Trailer for workshop cargo transportation consisted of power source,gear train,steel structure bearing frame,steering gear,running gear,control system and fault diagnosis module to better the 30 T capacity type trackless Industrial Transfer Trailer for workshop cargo transportation.
Technical parameter table of 30 T capacity type trackless Industrial Transfer Trailer for workshop cargo transportation
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Battery Voltage(v) | 24 | 48 | 48 | 72 | 72 | |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | |
Application of the 30 T capacity type trackless Industrial Transfer Trailer for workshop cargo transportation
Stable and flexible during the turning in small space, we have optimized the steering mechanism, wheel press and frame rigidity to make it available for linkage of several trolleys. The 30 T capacity type trackless Industrial Transfer Trailer for workshop cargo transportation has been highly approved by our customers.
