Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Henan, China (Mainland) | Product Name: | Cable Powered Transfer Cart |
|---|---|---|---|
| Application: | Industrial Filed | Color: | Customized |
| Capacity: | Customized | Running Speed: | 0-20m/min |
| After-sales Service Provided: | Engineers Available To Service Machinery | ||
| High Light: | electric transfer cart,material transfer trolley |
||
Henan Perfect Handling Equipment Co., Ltd is a collection of research and development, design, manufacturing as one of professional international manufacturing company of cable powered transfer cart Our company has been founded for 13 years and has become enterprise in the cable powered transfer cart business.Rail

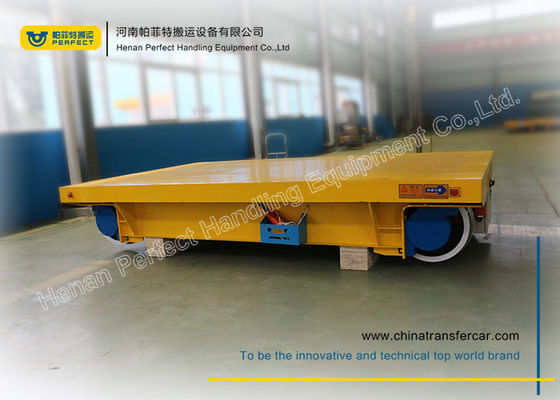

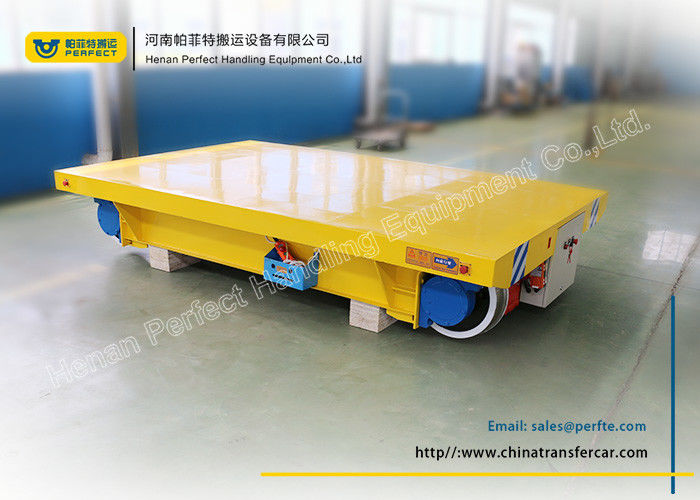

The BHX series cable powered transfer cart. The alterative current is suppiled consistently to the pulling motor by slide knife taken from sliding contact line through electric contrql system , which makes the car start ,stop, move forward and relize other functions.The sale sliding contact line can be installed in the middle of the tracks or by the outside of the tracks or in the trench or under the roof of the plant .Positing fixture ,lifture, lifting platform, clamping device and other auxiliary device are optional to meet different demands on various occasions. The BHX series is suitable in inflammable environment and in high frequency.
Site map for customer use
ler Rail Trailer

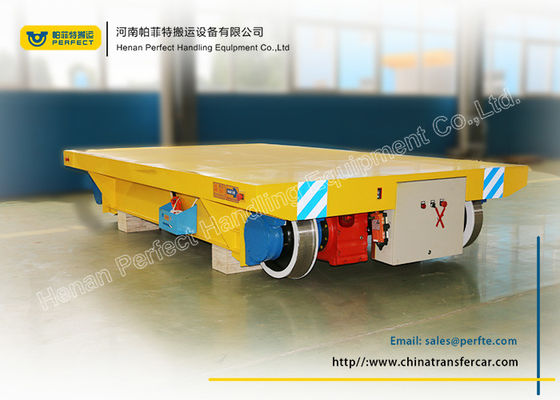

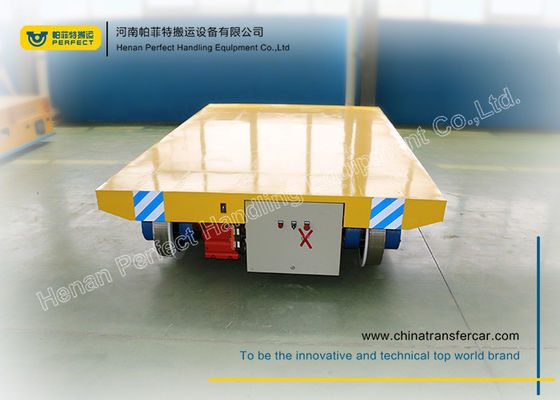

The cable powered transfer cart power source 380Valternating-current is supplied to the traction motor by cable, which is collected and released by coiling device monted underneath the transfer cart. The cable powered transfer cart can realize full automatic operation by PLC system.Rail Trailer Rail Trailer Rail Trailer
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
