| Type: | Die And Mold Transfer Cart | Material: | Carbon Steel |
|---|---|---|---|
| Running Speed(m/min): | 20 | Table Size: | Customized |
| Motor Power(Kw): | 3.5-15 | Product Name: | 100 T Motorized Industrial Standards Mold And Die Transfer Cart For Mold And Die Handling |
| Ground Clearance(mm): | 50 | Wheel Diameter(mm): | 270-600 |
| High Light: | die handling equipment,powered trolley cart,Carbon Steel Motorized Rail Cart |
||
Mold And Die Electric Transfer Cart , 100 T Motorized Rail Cart Industrial Standards
The BWP series 100 t motorized industrial standards mold and Die Transfer Cart for mold and die handling usually,accumulator,mains powered and generator are choose as power source.The current is supplied and generator are choose as power source.Positioning fixture, lift platform and other assistive device are customized to meet different demands on various occasions. The PLC system of the 100 t motorized industrial standards mold and Die Transfer Cart for mold and die handling is also alternative if need.
Advantages and functions of the100 t motorized industrial standards mold and Die Transfer Cart for mold and die handling
1.No rail limitated.
2.No harm to the cement ground because of the Polyurethane rubber wheel.
3.Battery powered, so only charged fully.
4.Run freely without limited distance.
5.Provided getting for your inquiry.
6.Customized as per your true demand.
7.The running distance of the mold and Die Transfer Cart is no limitated.
8.The capacity and table size of the mold and Die Transfer Cart is no limitated.
9. Can add the V/U shape of the mold and Die Transfer Cart is no limitated if need.

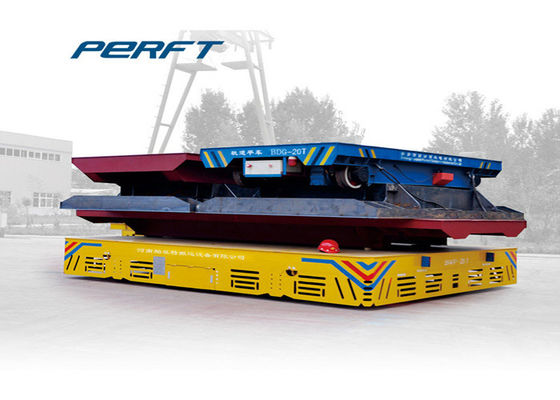

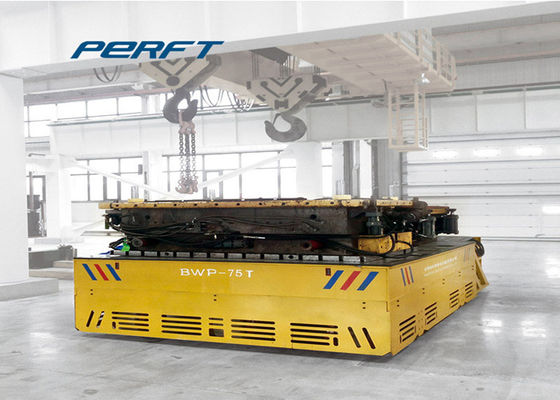

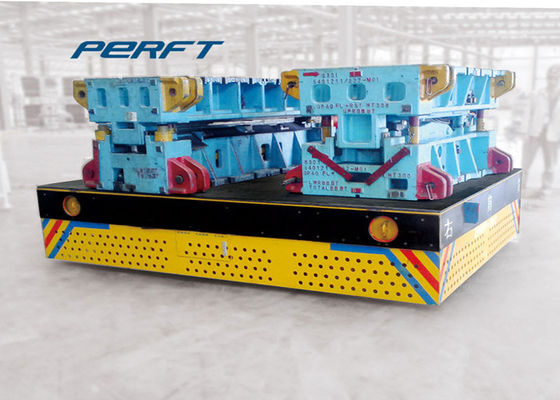

Detailed Image of 100 t motorized industrial standards mold and Die Transfer Cart for mold and die handling
The 100 t motorized industrial standards mold and Die Transfer Cart for mold and die handling consisted of power source,gear train,steel structure bearing frame,steering gear,running gear,control system and fault diagnosis module to better the 100 t motorized industrial standards mold and Die Transfer Cart for mold and die handling.
Technical parameter table of 100 t motorized industrial standards mold and Die Transfer Cart for mold and die handling
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
The Scheme of the 100 t motorized industrial standards mold and Die Transfer Cart for mold and die handling

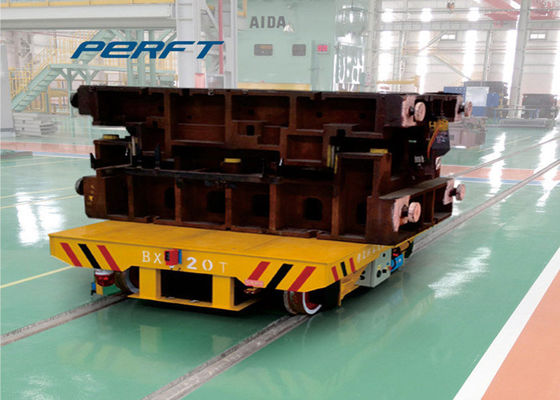

Application of the 100 t motorized industrial standards mold and Die Transfer Cart for mold and die handling
Stable and flexible during the turning in small space, we have optimized the steering mechanism, wheel press and frame rigidity to make it available for linkage of several trolleys. The 100 t motorized industrial standards mold and Die Transfer Cart for mold and die handling has been highly approved by our customers.
