Heavy Load Battery Transfer Cart , Industrial Material Die Handling Equipment

Heavy Load Battery Transfer Cart , Industrial Material Die Handling Equipment
Heavy Load Battery Transfer Cart , Industrial Material Die Handling Equipment Heavy Load Battery Transfer Cart , Industrial Material Die Handling Equipment Heavy Load Battery Transfer Cart , Industrial Material Die Handling Equipment Heavy Load Battery Transfer Cart , Industrial Material Die Handling Equipment

Large Image :  Heavy Load Battery Transfer Cart , Industrial Material Die Handling Equipment

Product Details:
Place of Origin: Henan china
Brand Name: Die and mold Transfer Cart
Certification: CE ISO SGS
Model Number: Die and mold Transfer Cart
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD2000-5000/SET
Packaging Details: Trap and wooden case
Delivery Time: 20 work days after received balance payment
Payment Terms: T/T, L/C
Supply Ability: 30sets/week
Detailed Product Description
Table Size: Customized Motor Power(Kw): 3.5-15
Product Name: Heavy Load Die Transfer Cart For Industrial Material Handling Running Speed(m/min): 20
Material: Carbon Steel Turnning Radius(mm): 2501-5201
Axles Distance(mm): 2500-5200 Running Speed(m/min): 0-15
Cart Weight(t): 4.3-10.5
High Light:

heavy duty die carts

,

powered trolley cart

,

Carbon Steel Battery Transfer Cart





Heavy Load Battery Transfer Cart , Industrial Material Die Handling Equipment



The Heavy Load Die Transfer Cart for industrial material handling on the cemment concrete ground, motor gear reducer as driving system, solid PU wheels can be run on the ground directly and flexibly with no limited running distance. And imported solid PU wheels can reduce the impair for the ground. The Heavy Load Die Transfer Cart for industrial material handling can be suitable for smaller space by 360 degree spot turning, 360 degree protection to guarantee site safety, including dead man stop, emergency stop., anti-collision device... touch-screen, Pry bar device,...this design is humanization and modernization. Automated operation makes the bogie more intelligent.



Advantages

1.The series’ Heavy Load Die Transfer Cart .The battery is installed in the bogie. The batteries supplied the electricity to the DC motor through the electrical control system.By this ways, we can make the die transfer cart to start, stop, go forward , back forward , adjust the speed and so on.



2.Of course, the power supply are chosen as per your working environment, the proper solution will be recommended to you after knowing your plant. hope rich experience (more than 15 years) can help you well.



3.About the die transfer cart'wheels, the material is PU wheels, inside is cast steel, outside is encapsulation. by the design,The Heavy Load Die Transfer Cart for industrial material handling main function is damping. in our trackless bogie , this kinds are also chose. And the wheel are manufactured and assemblied by ourselves.



4.About the battery, The maintenance free type battery also is chosen to export. this kinds are convenient, and long lifetime, we needn't maintain once a regular time. so in this series flat carriaget, it is popular among customers. Generally speaking, the charging time is about 8 hours..



5.Generally speaking, the intelligent charger is chosen to export, it has high frequency, little interference to the grid, and small volume. The charger can not only realize rapid charging, but also no damage to the battery, and prolong battery lifetime.



6.The lifting hole are installed on the trackless bogie for convenient transporting. Especially, it can be lifted and moved after the structure finished.What’s more, it makes the appearance more delicate and beautiful.



Detailed Image

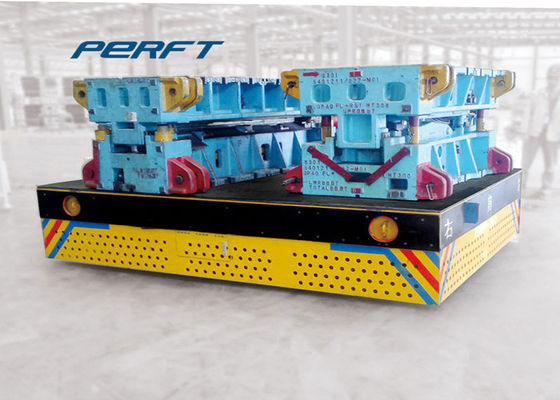

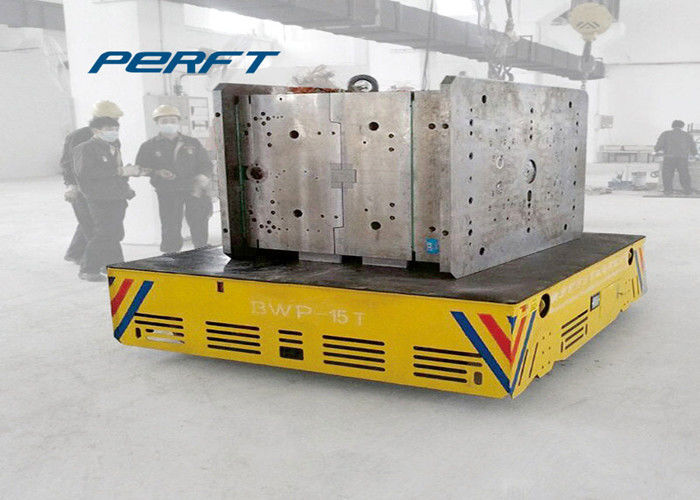

Heavy Load Die Transfer Cart for industrial material handling

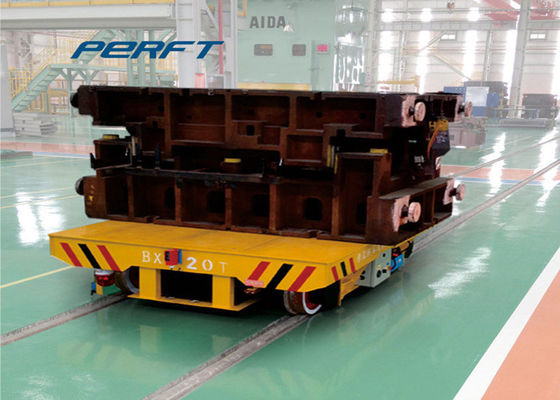

Heavy Load Die Transfer Cart for industrial material handling



Technical parameter table

Rated Load(T) 5 10 15 20 30 40 50
Ground Clearance(mm) 50 50 50 50 50 50 50
Wheel Base(mm) 1500 1500 1500 1700 1700 1800 1800
Turnning Radius(mm) 2501 3101 3401 3901 4301 4801 5201
Axles Distance(mm) 2500 3100 3400 3900 4300 4800 5200
Motor Power(Kw) 3.5 5 6 7 10 12 15
Running Speed(m/min) 0-15 0-15 0-15 0-15 0-15 0-12 0-12
Cart Weight(t) 4.3 5.3 6.6 7.9 8.8 10 10.5
Impacted Rated Load(t) 7.5 15 22.5 30 45 60 75
Battery Capacity(Ah) 180 160 180 180 250 300 330
Battery Voltage(v) 36 48 48 48 48 48 48



Application

The application of the Heavy Load Die Transfer Cart for industrial material handling range includes: mold field, car field, steel, iron, heavy industry, light industry, chemical, mine, ship, project, spaceflight, coal, nuclear energy, hydraulic engineering,etc.

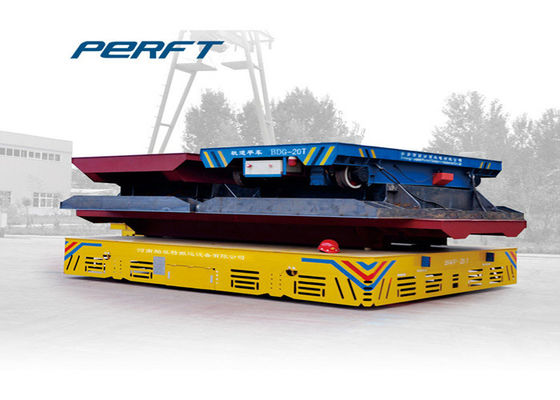

Heavy Load Die Transfer Cart for industrial material handling
