| Product Name: | 30 Ton Electric Battery Operated Four Wheel Coil Transfer Trolley For Aluminium Steel Coils Transportation | Type: | Rail Coil Transfer Trolley |
|---|---|---|---|
| Material: | Carbon Steel | Ground Clearance(mm): | 50-75 |
| Motor Power: | 1-15 | Wheel Base(mm): | 1200-7000 |
| Wheel Quantity: | 4 | ||
| High Light: | heat resistant coil transfer trolley,30 ton coil transfer trolley,heat resistant coil transfer car |
||

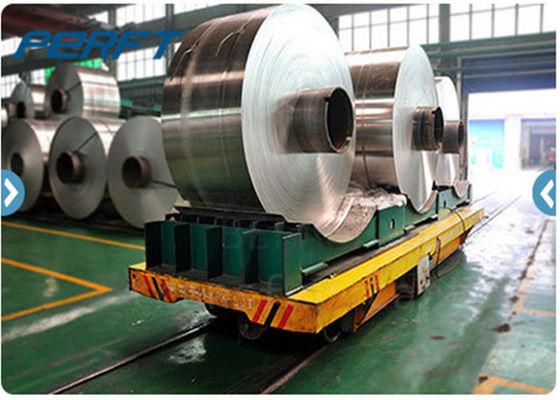

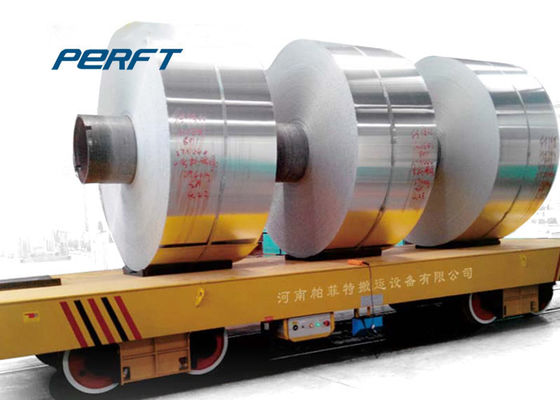

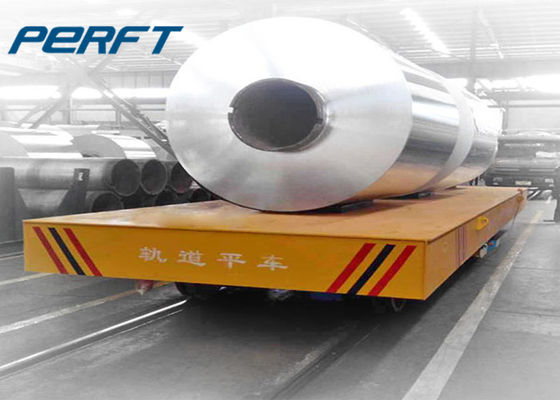

30 ton electric battery operated four wheel Coil Transfer Trolley for aluminium steel coils transportation
The 30 ton electric battery operated four wheel Coil Transfer Trolley for aluminium steel coils transportation This powered 30 ton electric battery operated four wheel Coil Transfer Trolley are used to handle any type of load, also very big and heavy, on a run time constrained.The 30 ton electric battery operated four wheel Coil Transfer Trolley is a represent, therefore, the best solution in case of regular production cycle.Further, the cost of the 30 ton electric battery operated four wheel Coil Transfer Trolley, for the same dimensions and capacity load, 30 ton electric battery operated four wheel Coil Transfer Trolley is lower than tired self-propelled trailers which must dispose of steering systems and greater powers.
Advantage and functions of the 30 ton electric battery operated four wheel Coil Transfer Trolley for aluminium steel coils transportation
Main Componences of the 30 ton electric battery operated four wheel Coil Transfer Trolley for aluminium steel coils transportation
Technical Table of the 30 ton electric battery operated four wheel Coil Transfer Trolley for aluminium steel coils transportation
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Battery Voltage(v) | 24 | 48 | 48 | 72 | 72 | |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | |
Application and Usage of the 30 ton electric battery operated four wheel Coil Transfer Trolley for aluminium steel coils transportation
