| Product Name: | Heavy Duty Trackless Battery Transfer Cart Material Handling Equipment For Industry Used In Warehouses | Type: | Battery Transfer Cart |
|---|---|---|---|
| Ground Requirement: | Cement Floor | Ground Clearance(mm): | 50 |
| Wheels Base(mm): | 1500-1800 | Motor Power(Kw): | 3.5-15 |
| Running Speed(m/min): | 0-15 | Table Size: | Customized |
| Battery Capacity(Ah): | 180-600 | Battery Voltage(v): | 24-72 |
| High Light: | battery operated cart,battery powered cart |
||
Heavy duty trackless Battery Transfer Cart material handling equipment for industry used in warehouses
The Heavy duty trackless Battery Transfer Cart material handling equipment for industry used in warehouses usually,accumulator,mains powered and generator are choose as power source.The current is supplied and generator are choose as power source.The Heavy duty trackless Battery Transfer Cart material handling equipment for industry used in warehouses is supplied to pulling motor through electric control system,which makes the Heavy duty trackless Battery Transfer Cart material handling equipment for industry used in warehouses start,stop,move background,turn around and realize other functions.Also, the capacity and table size can be customized.The hydraulic lifting and V/U shape can be added if need.
Advantages and functions of the Heavy duty trackless Battery Transfer Cart material handling equipment for industry used in warehouses
1.Gets rid of relying for the rails.
2.No impairment for the cement ground, and can run freely, go forward, back forward, turning.etc.
3.Battery powered,and the cable reel,battery powered,
4.Run freely without limited distance.
5.Provided getting for your inquiry.
6.Customizable.

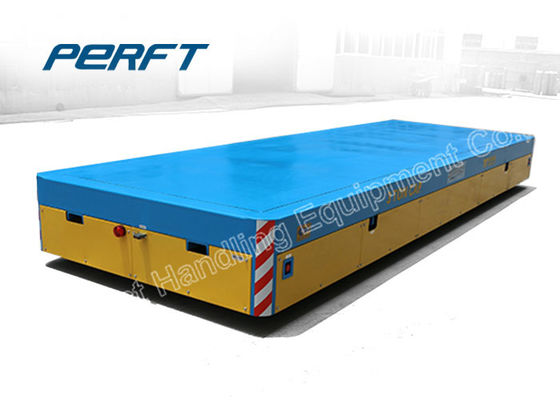

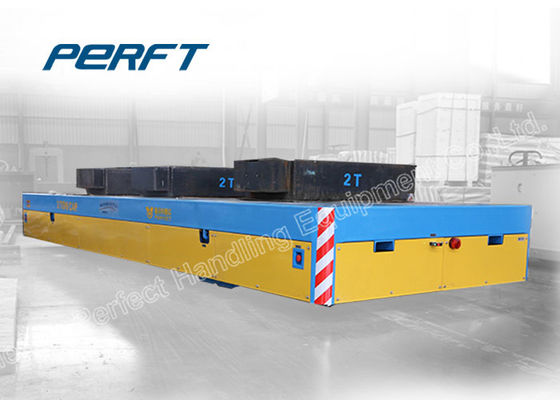

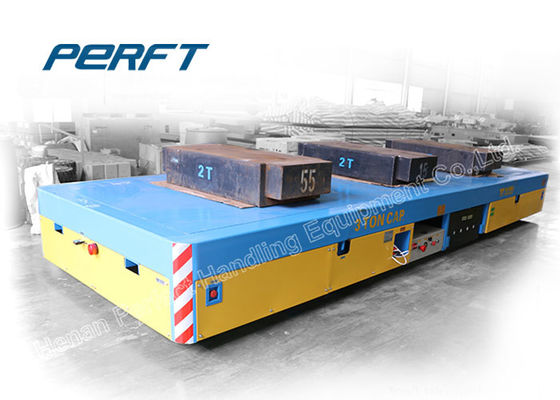

Detailed Image of Heavy duty trackless Battery Transfer Cart material handling equipment for industry used in warehouses
The Heavy duty trackless Battery Transfer Cart material handling equipment for industry used in warehouses consisted of power source,gear train,steel structure bearing frame,steering gear,running gear,control system and fault diagnosis module to better the Electric Trackless Transfer Flat Car.
Technical parameter table of Heavy duty trackless Battery Transfer Cart material handling equipment for industry used in warehouses
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 180 | 250 | 300 | 330 |
| Battery Voltage(v) | 36 | 48 | 48 | 48 | 48 | 48 | 48 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 44 | 4 | 4 |
| Ground Requirement | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor |
Cement Floor
|
Application of the Heavy duty trackless Battery Transfer Cart material handling equipment for industry used in warehouses
Stable and flexible during the turning in small space, we have optimized the steering mechanism, wheel press and frame rigidity to make it available for linkage of several trolleys. The Heavy duty trackless Battery Transfer Cart material handling equipment for industry used in warehouses has been highly approved by our customers.
