Product Details:
Payment & Shipping Terms:
|
| Product Name: | Heavy Load Industrial Turntable Rail Transfer Car For Factory Material Crossing Transportation In Warehouse | Type: | Material Handling Turntable |
|---|---|---|---|
| Rail Inner Gauge(mm): | 1200-2000 | Wheel Base(mm): | 1200-7000 |
| Color: | Customized | Table Size: | Customized |
| High Light: | powered pallet turntable,motorized pallet turntable |
||

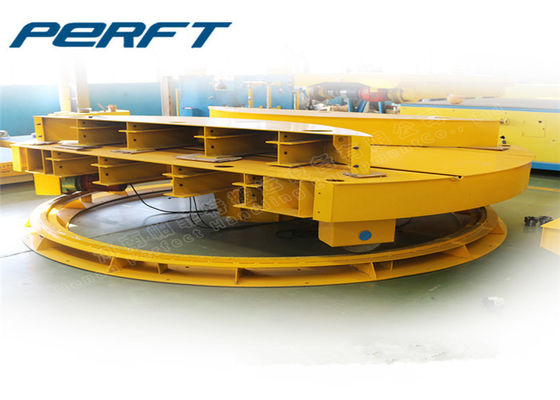

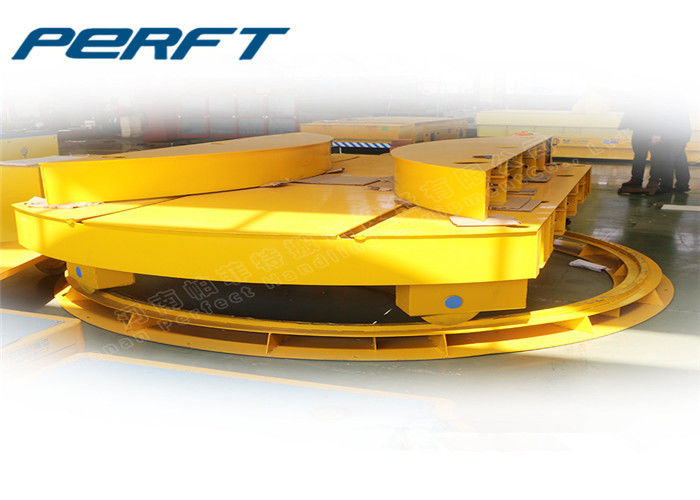

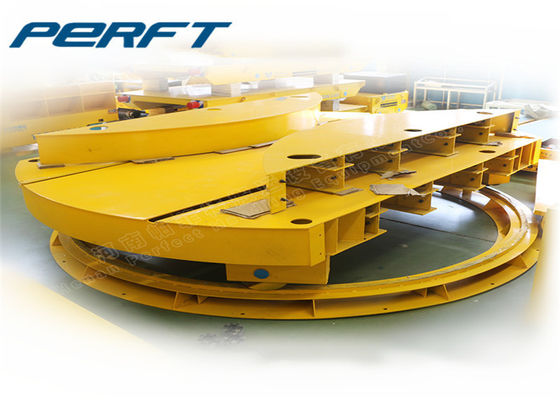

Heavy load industrial turntable rail transfer car for factory material crossing transportation in warehouse
The Heavy load industrial turntable rail transfer car for factory material crossing transportation in warehouse turning free is a device that turns and changes direction for the rail transfer cart on the rail, or material, equipment. It is installed in the position where the two rails are crossed, one or more rails are laid on its table. The upper surface of the Heavy load industrial turntable rail transfer car for factory material crossing transportation in warehouse as same high as the upper surface of the track on the ground, and also has the same rail gauge.
Main Components of the Heavy load industrial turntable rail transfer car for factory material crossing transportation in warehouse
The principle of the Heavy load industrial turntable rail transfer car for factory material crossing transportation in warehouse is to rotate the gear by the motor to achieve the rotation of the turntable. When the Heavy load industrial turntable rail transfer car for factory material crossing transportation in warehouse is completely running on the turntable, the turntable car starts to rotate to the desired angle and the connect with the ground rails completely, then the turntable car can starts again and runs along the rails.
The scheme of the Heavy load industrial turntable rail transfer car for factory material crossing transportation in warehouse
Technical parameters of the Heavy load industrial turntable rail transfer car for factory material crossing transportation in warehouse
| Model | BXC-2T | BXC-20T | BXC-50T | BXC-100T | BXC-150T |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 |
| Running Time | 4.32 | 4 | 3.3 | 3.2 | 2.9 |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 |
| Running Distance(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 |
Application of the Heavy load industrial turntable rail transfer car for factory material crossing transportation in warehouse
Advantage of the Heavy load industrial turntable rail transfer car for factory material crossing transportation in warehouse
The Heavy load industrial turntable rail transfer car for factory material crossing transportation in warehouse for Transfer is a patented product in perfte's company, which can run on the 90 degree turning railway. Wherever your cart is, only the turnplate exist, your cart an start in every direction,especially in working line or warehouse. it is convenient to transport your production. According to the way, our enterprise design the turnplate to satisfy others' demand.the feature as it follows:
1.Stable driving during the crossingv cargo transportation
2.High accuracy of rail connection
3.Totally automatically operated
4.Convenient and flexible of the turntable car
5.Control panel with wire or romote control
6.A very common device in the rail transportation system
7.We can design the capacity, rotation degree as requirement
Packaging & Shipping of the Heavy load industrial turntable rail transfer car for factory material crossing transportation in warehouse
Q & A
1.Q:What is the MOQ of the Turntable Transfer Cart for custom industrial material handling carts uses in warehouse?
A: At present, our MOQ is 1 set.
2. Q: What is the size and load of this turntable Rail Transfer Cart ?
A:The size and load of our this turntable Rail transfer cart is customized design according to your requirement.
3. Q:Can choose the power supply of the Turntable Transfer Cart for custom industrial material handling carts uses in warehouse?
4. Q: What is the leading time, delivery term, and payment term ?
A: Usually our leading time is 45 days, for some special rail coil transfer cart, such as rail coil transfer cart, it maybe longer to 60 days. About the delivery term, we accept EXW, FOB, CIF, DDU. About the payment, we accept T/T or L/C.
