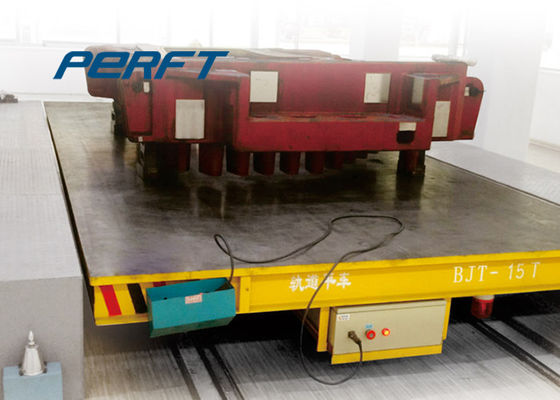

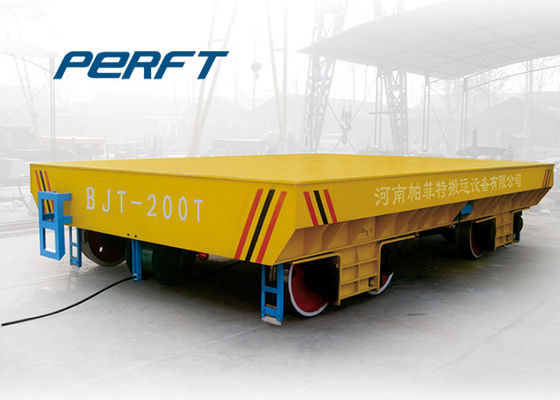

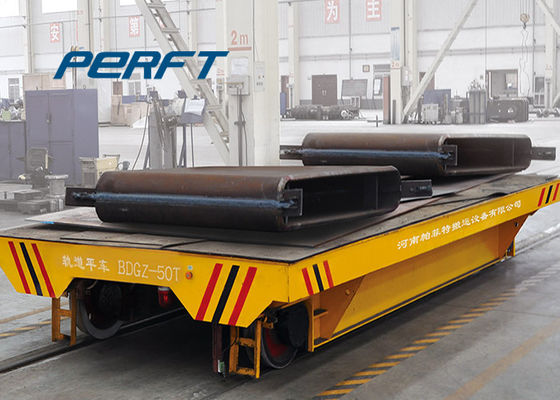

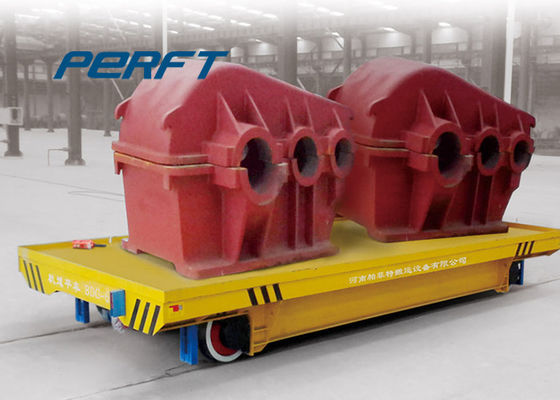

Motorized Flat Bed Transport Wagon , Industry Transfer Rail Automated Guided Vehicles

Motorized Flat Bed Transport Wagon , Industry Transfer Rail Automated Guided Vehicles
Motorized Flat Bed Transport Wagon , Industry Transfer Rail Automated Guided Vehicles Motorized Flat Bed Transport Wagon , Industry Transfer Rail Automated Guided Vehicles Motorized Flat Bed Transport Wagon , Industry Transfer Rail Automated Guided Vehicles Motorized Flat Bed Transport Wagon , Industry Transfer Rail Automated Guided Vehicles

Large Image :  Motorized Flat Bed Transport Wagon , Industry Transfer Rail Automated Guided Vehicles

Product Details:
Place of Origin: China(Mainland)
Brand Name: motorized flat bed transport wagon
Certification: CE ISO SGS
Model Number: industry transfer rail vehicles
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 3000~7000 set
Packaging Details: trap and wooden case
Delivery Time: 20 work days after received balance payment
Supply Ability: 100 sets month
Detailed Product Description
Place Of Origin: Henan, China (Mainland) Product Name: Motorized Flat Bed Transport Wagon For Industry Transfer Rail Vehicles
Application: Industrial Filed Workshop Warranty: 12 Months
Capacity: 1-300ton Running Speed: 0-20m/min
After-sales Service Provided: Engineers Available To Service Machinery Dimension: Customized
High Light:

rail transfer car

,

load transfer trolley

motorized flat bed transport wagon for industry transfer rail vehicles



motorized flat bed transport wagon for industry transfer rail vehicles, it makes the AC electricity power is transformed into AC 36v two-phas and are respectively connected to the two rails.Then the motorized flat bed transport wagon for industry transfer rail vehicles the AC 36v on rail into the electrical appliance box at the bottom of the motorized flat bed transport wagon for industry transfer rail vehicles , And then the AC 36v is transformed into DC 36v and then control the DC motor through the DC control system to make the motorized flat bed transport wagon for industry transfer rail vehicles tart, stop, go forward and backward and adjust the speed and so on.

motorized flat bed transport wagon for industry transfer rail vehicles



Model
BXC-2T
BXC-5T
BXC-20T
BXC-50T
BXC-100T
Rated Load(T)
2
5
20
50
100
Length(mm)
2000
3500
4000
5500
6500
Width(mm)
1500
2000
2200
2500
2800
Height(mm)
450
500
550
650
900
Wheel Base(mm)
1200
2500
2800
4200
4900
Rail Inner Gauge(mm)
1200
1435
2000
Wheel Diameter(mm)
270
300
350
500
600(heavy)
Ground Clearance(mm)
50
75
Running Speed(m/min)
0-25
0-20
Motor Power(Kw)
1
1.2
2.2
5
10
Max Wheel Load(KN)
14.4
25.8
77.7
174
343.8
Reference Weight(t)
2.8
3.6
5.9
8
14.6
Recommedded Rail Model
P15
P18
P24
P43
QU100

Other Product
motorized flat bed transport wagon for industry transfer rail vehiclesmotorized flat bed transport wagon for industry transfer rail vehicles


motorized flat bed transport wagon for industry transfer rail vehicles



Packaging & Shipping



motorized flat bed transport wagon for industry transfer rail vehicles
