Industry Heavy Duty Steel Ladle Handling Equipment 25 Ton Easy Operated

China Industry Heavy Duty Steel Ladle Handling Equipment 25 Ton Easy Operated supplier
Industry Heavy Duty Steel Ladle Handling Equipment 25 Ton Easy Operated supplier Industry Heavy Duty Steel Ladle Handling Equipment 25 Ton Easy Operated supplier Industry Heavy Duty Steel Ladle Handling Equipment 25 Ton Easy Operated supplier Industry Heavy Duty Steel Ladle Handling Equipment 25 Ton Easy Operated supplier Industry Heavy Duty Steel Ladle Handling Equipment 25 Ton Easy Operated supplier Industry Heavy Duty Steel Ladle Handling Equipment 25 Ton Easy Operated supplier

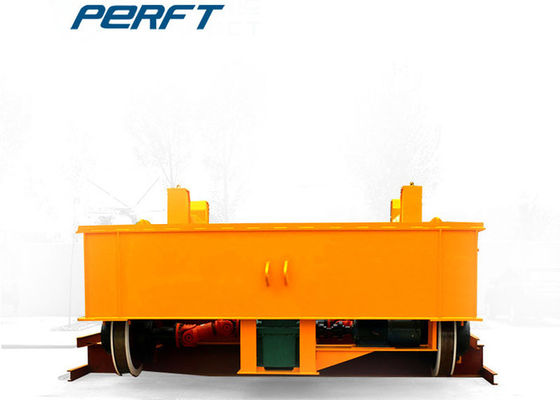

Large Image :  Industry Heavy Duty Steel Ladle Handling Equipment 25 Ton Easy Operated

Product Details:

Place of Origin: Xinxiang-Henan-China
Brand Name: perfte
Certification: ISO 9001,CE,CCPIT
Model Number: steel ladle handling equipment

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $7000-$12000
Packaging Details: The cart's body is packed with a tarp, and the wheel and parts of the cart will be packed with wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 60 set per month
Contact Now
Detailed Product Description
Rated Load (T): 1-150t Table Size: Customize
Running Speed: 0-20 Ground Requirement: Cement Floor
Control Mode: Push Button Control, Wireless Remold Motor Power (Kw): 1.5
Battery Capacity(Ah): 180-600 Charger Function: Automatic Charging
Power: Customize Color: Customize



25 ton easy operated industry heavy duty steel ladle handling equipment



Description

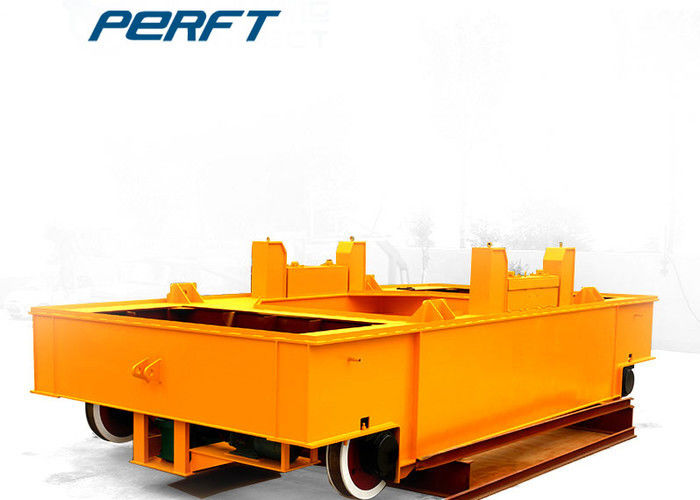

The ladle transfer car is specially designed to transfer the high-temperature ladle, this kind of car has strict requirements on safety and ability of anti-high temperature, so the materials, driving system and electrical control of the car should be specially designed. The heat insulating material is used in the car to resist the high temperature.

ladle transfer car is specially designed to transfer the- temperature ladle. This kind of car has strict requirements on safety and ability of anti-high temperature, so the materials, driving system and electrical control of the car should be specially designed. The traction motor is designed in slow start and stop to reduce the inertia of the car and avoid molten steel or slag from splashing. The heat insulating material is used in the car to resist the high temperature. Usually, two motors are prepared, so when one is damaged by the ladle’s high temperature the other can be used to continue the work.

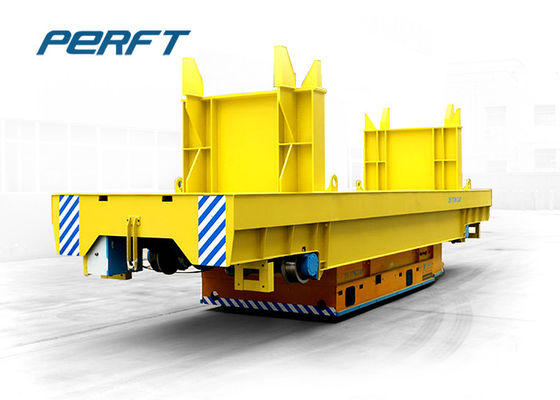

rail power cart

Advantages



The ladle transfer cart is can be customized, the customs can choose a track or trackless, battery power or cable power. The ladle transfer cart heavy duty transport cart, which can carry molten metal runs on rail smooth with v frame in case of splashing in a steel mill. It adopted stainless steel, because of the hot metal roller has Corrosive.



Application

The series handling equipment is suitable for heavy-duty load, high using frequency and high-temperature environment. It can be used transport steel ladle to prevent the molten steel and steel slag from splashing.

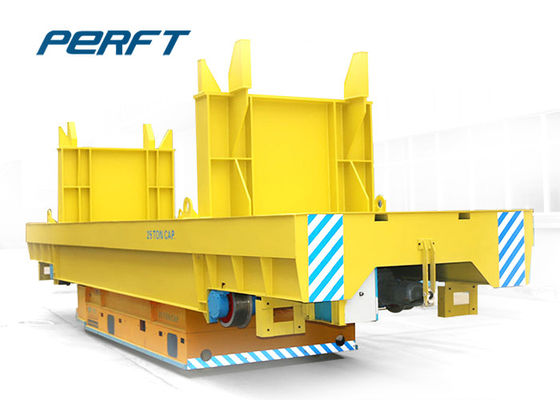

rail power cart

Technical parameters:

Capacity(t) 25
Table Size(mm) 4500*2200*600
Wheel Base(mm) 3200
Rail Inner Gauge(mm) 1435
Wheel Diameter(mm) 400
Wheel Quantity 4
Ground Clearance(mm) 50
Running Speed(m/min) 0-20
Traveling Length(m) 30
Max Wheel Load(KN) 94.5
Reference Weight(t) 6.2
Recommended Rail P38



Other function

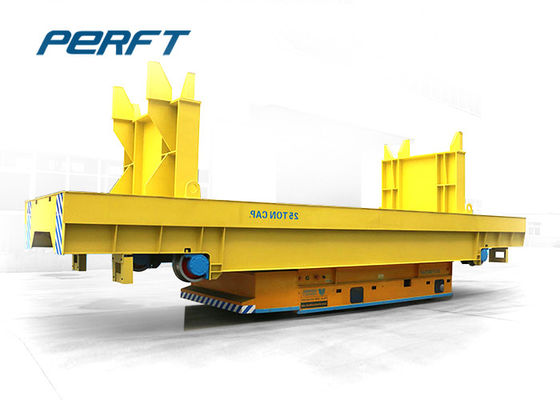

The weighing track flatbed is to transfer goods which require accurate weight and is not easy to handle. The track flatbed shown below is the BJT-80T, which is used to transport the ladle. It can show the weight of the ladle until reached the required weight. At the same time, omitted the reweighing step and shortened the next step. To a large extent, it saves a lot of manpower and time and realizes the state which the transportation and weighing are synchronized.

The application of weighing track flatbeds is mostly found in metal smelting enterprises. It is used to weigh some large metal objects such as molten steel and molten iron and is an indispensable transportation tool in the smelting industry.
