Product Details:
Payment & Shipping Terms:
|
| Warranty: | 12 Month Long Guarantee | Capacity: | 1-300T |
|---|---|---|---|
| Power Supply: | Battery | Running Speed: | 0-25m/min(Adjustable) |
| Material: | Q235 Steel | Color: | Customized |
| Brand Name: | Perfte | After-sales Service: | Field Maintenance And Repair Service |
| High Light: | rail transfer car,load transfer trolley |
||

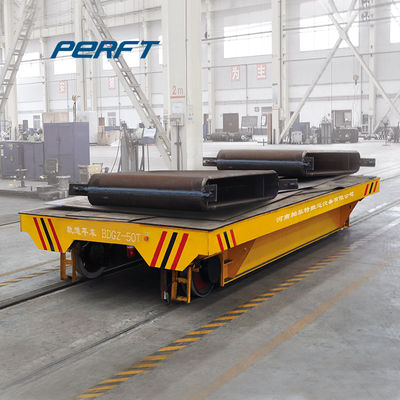

20Ton Battery Power Coil Rail Transfer Cart Trolley for industrial
Description
rail transfer cart is a kind of battery power rail cart. It can get rid of the restraint of cable and the running distance is not limited. It can be wired and wireless remote control, which is more convenient, safe and practical.
Product parameters
Technical parameters of some models(Customizable)
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Our service
We offer a full range of customized services
We can customize the transfer cart according to your needs for the tonnage, shape, color, safety device and the way of operation.
