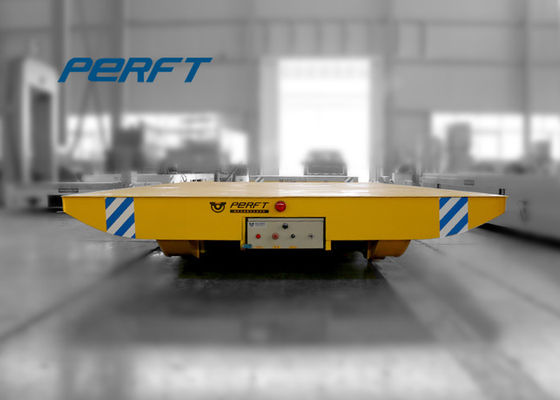

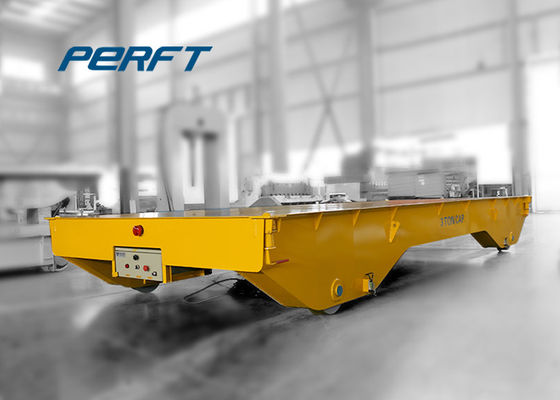

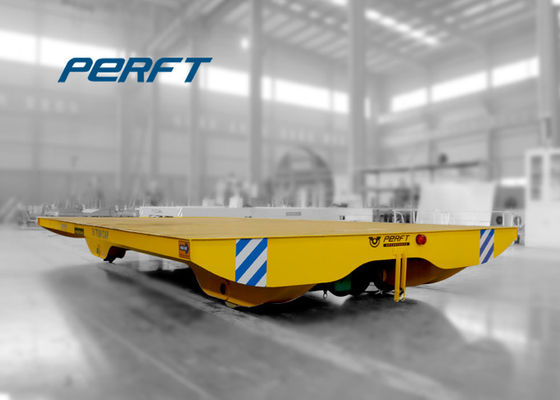

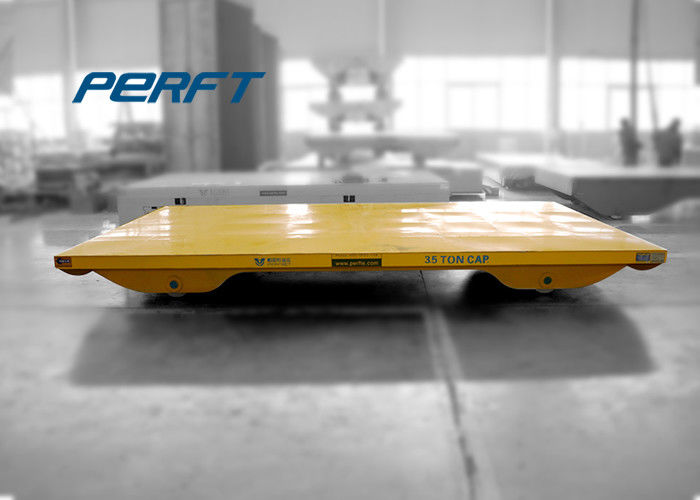

Rail Heavy Duty Flat Car / Heavy Duty Trailer With Electrical Control System

Rail Heavy Duty Flat Car / Heavy Duty Trailer With Electrical Control System
Rail Heavy Duty Flat Car / Heavy Duty Trailer With Electrical Control System Rail Heavy Duty Flat Car / Heavy Duty Trailer With Electrical Control System Rail Heavy Duty Flat Car / Heavy Duty Trailer With Electrical Control System Rail Heavy Duty Flat Car / Heavy Duty Trailer With Electrical Control System

Large Image :  Rail Heavy Duty Flat Car / Heavy Duty Trailer With Electrical Control System

Product Details:
Place of Origin: CHINA
Brand Name: PERFTE
Certification: SGS\CE\ISO
Model Number: BTL FLAT CART
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD3500~8000
Packaging Details: trap and wooden case
Delivery Time: 30 work days after received balance payment
Payment Terms: L/C, T/T
Supply Ability: 100 sets month
Detailed Product Description
POWER SUPPLY: Battery Size: Customization
Feature: Easy Opration Color: Customization
Brand Name: Perfte Model: BTL
High Light:

eavy duty equipment trailers

,

heavy duty industrial carts



Workshop rail heavy duty flat car



Product description:

The workshop rail heavy duty flat car introduces the 380V cable directly into the flat car electrical control system to control the start, stop, forward and reverse of the flat car. The workshop rail heavy duty flat car is powered by the cable that is placed on the ground by the movement of the flat car.The cable is placed in the center of the two tracks, and the operating system is controlled by a low voltage 36V power supply. A hydraulic lifting system can be installed on the flat car, which is suitable for long distance transportation in harsh, high temperature, explosion proof and other environments. The requirements for track laying are not high.

Rail Heavy Duty Flat Car / Heavy Duty Trailer With Electrical Control System 0

A hydraulic lifting system can be installed on the flat car, which is suitable for long distance transportation in harsh, high temperature, explosion proof and other environments. The requirements for track laying are not high.



ADVERTAGES:

  • Flat deck or fixtures for transporting special payload;
  • Custom deck configurations may include lift, tilt, or rotate function;
  • Payload from 1 ton to 300 tons;
  • Fixed speed or variable speed capabilities;
  • The flat car can run on the C-form track or S-form track and L-form track;
  • Running distance of flat car is unlimited;
  • With forward or backing driving;
  • Options for automatic control;
  • Available safety equipment includes horn, lights, emergency stop, bumpers and detector.

Rail Heavy Duty Flat Car / Heavy Duty Trailer With Electrical Control System 1


ModelBTL-2TBT-20TBTL-63TBTL-100TBTL-150T
Rated Load(t)22063100150
Table Size(mm)(L)200040005600650010000
(W)15002200250028003000
(H)4505007509001200
Wheel Base(mm)12002800430049007000
Rail Inner Gauge(mm)12001435143520002000
Wheel Diameter(mm)270350600600600
WheelQuantity44444
Ground Clearance(mm)5050757575
Running Speed(min)0-250-200-200-200-18
Motor Power(kw)0.82.57.51115















Q&A
1. Q: What is the size and load of this flat car ?
A:The size and load of our this flat car is customized design according to your requirement.
2. Q: How should I operate this flat car ?
A: The flat car is controlled by pendant & remote radio control. The controller could be push button or joy-sticker.
3. Q: Is there any braking system on this flat car ?
A: Yes, there are electromagnetic brakes on the flat car. When the flat car is power off, the brake will work automatically. And there are emergency stop buttons on the remoter and the flat car, you can push it for emergency stop.
4. Q:What is the warranty period? What kind of service do you offer in the warranty period?
A: The warranty period for our product is 12 months from the time we delivery, during the warranty period, we will send spare parts to you on our own cost if damaged because of bad quality, and we will guide you how to replace it. If necessary, our engineer is available to your factory for maintenance.
5. Q: How do you transport the flat car and what is the package ?
A: For the big part, we will pack it with tarpaulin and wood pallet on the bottom of the flat car to prevent it from moving. For the small part, we will pack it in wood case.
6. Q: What is the leading time, delivery term, and payment term ?
A: Usually our leading time is 45 days, for some special flat car, such as hydraulic lifting flat car, it maybe longer to 60 days. About the delivery term, we accept EXW, FOB, CIF, DDU. About the payment, we accept T/T or L/C.
