Product Details:
Payment & Shipping Terms:
|
| Warranty: | 12 Months | Capacity: | 1-300ton |
|---|---|---|---|
| Type: | Transfer Cart | After-sales Service: | Yes |
| Height: | Customized | Feature: | Easy Opration |
| High Light: | flatbed ladle transfer cart,flatbed ladle transfer trolley,motorized ladle transfer trolley |
||

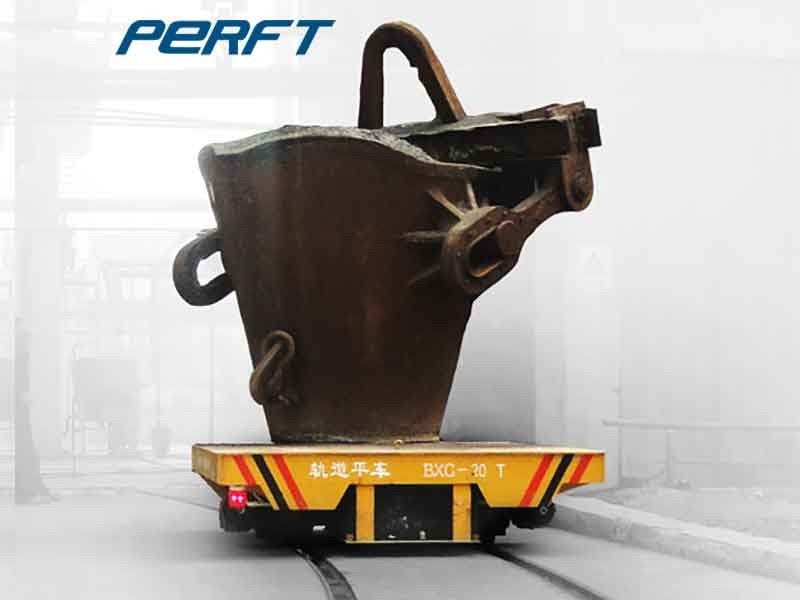

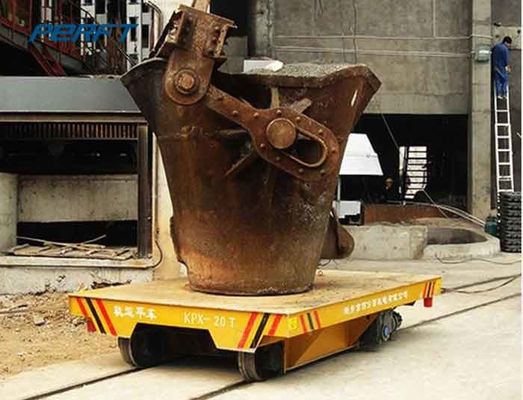

Hot ladle transport roller
Hot ladle transport roller are specially designed for the smelting industry. The car is equipped with a high temperature sensor, a large LCD screen and a remote printing device for remote operation and printing. Insulation material is installed in the car body to avoid the influence of high temperature on the electric control and transmission parts. The model adopts dual power drive. Even if one motor is damaged, the other motor can still ensure the normal operation of the flat car. With electronic scale, large screen LED display, remote printing equipment.
Electric Motorized Ladle Transfer Cars are commonly used models in smelting steel mills. With its special use environment, its design and manufacture are very different from ordinary track electric flat cars.
1. To prevent the heat radiation of the ladle, the inside of the car body is provided with high temperature insulation material to protect the electric and transmission mechanism;
2. To prevent the splash of molten steel or steel slag, the car must run slowly and slowly stop.
| Model | BTL-2T | BT-20T | BTL-63T | BTL-100T | BTL-150T | |
|---|---|---|---|---|---|---|
| Rated Load(t) | 2 | 20 | 63 | 100 | 150 | |
| Table Size(mm) | (L) | 2000 | 4000 | 5600 | 6500 | 10000 |
| (W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| (H) | 450 | 500 | 750 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4300 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 600 | 600 | 600 | |
| WheelQuantity | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 75 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 7.5 | 11 | 15 | |
Electric Motorized Ladle Transfer Cars is easy to disassemble, easy to disassemble, has strong load carrying capacity, long service life, small deformation of the table surface, does not pollute the environment, and can effectively ensure the flatness of the table steel.
There is a connecting hook before and after the ladle car water tank converter truck, and if necessary, it can pull other flat cars or be towed. Lifting holes are provided on both sides of the flat car for lifting.
The ladle car water tank converter truck has the ability to form an assembly line and a turning flat car. The structure of the electric flatbed will vary according to different usage environments to meet the requirements of users.
