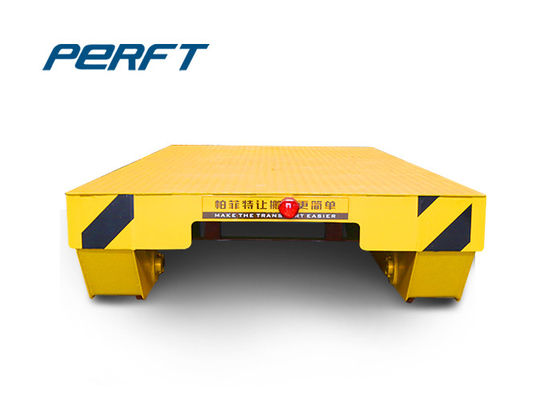

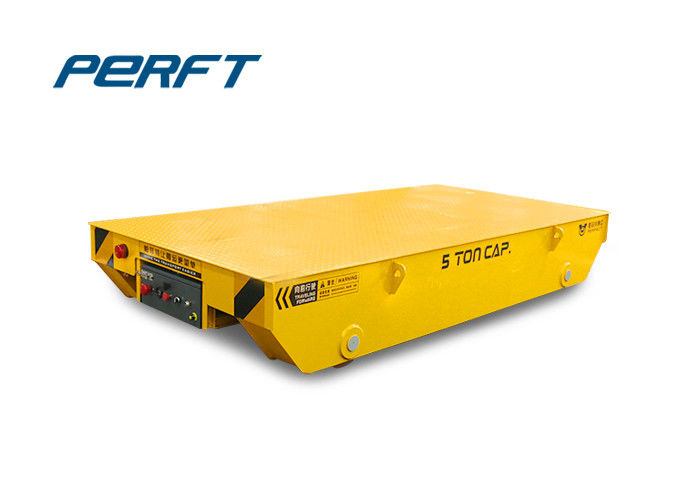

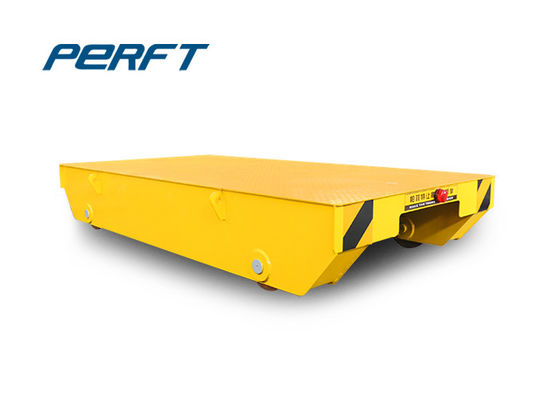

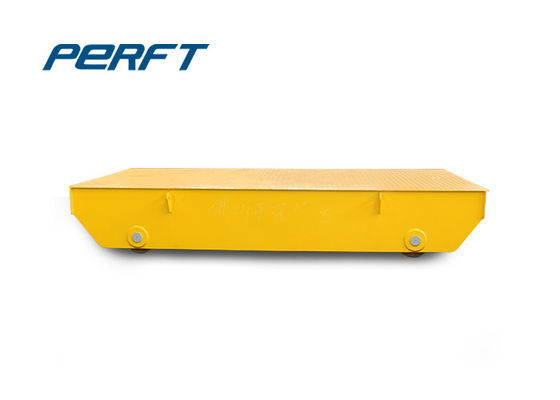

High Frequency Rail Transfer Cartwith Low Height Customized Load Capacity

High Frequency Rail Transfer Cartwith Low Height Customized Load Capacity
High Frequency Rail Transfer Cartwith Low Height Customized Load Capacity High Frequency Rail Transfer Cartwith Low Height Customized Load Capacity High Frequency Rail Transfer Cartwith Low Height Customized Load Capacity High Frequency Rail Transfer Cartwith Low Height Customized Load Capacity

Large Image :  High Frequency Rail Transfer Cartwith Low Height Customized Load Capacity

Product Details:
Place of Origin: China(Mainland)
Brand Name: PERFECT
Certification: CE ISO SGS
Model Number: Flatbed Transfer Freight Cart
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 1000~15000 SET
Packaging Details: trap and wooden case
Delivery Time: 35 work days after received balance payment
Payment Terms: D/P, D/A, MoneyGram, Western Union
Supply Ability: 70 Sets Per Month
Detailed Product Description
Power Source: Battery Running Speed: 0~20m Per Minute
Load Capacity: Customized Usage: Heavy Duty
Application: Transfer Materials
High Light:

rail transfer car

,

load transfer trolley





Customized High Frequency Flatbed Transfer Freight Carts with Low Height



This series of flatbed transfer freight carts is suitable for occasions where the driving distance is less than 20 meters, the frequency of use is high, and the height of the vehicle is low. Because of transfer freight carts' simple structure and low cost, it is a common track flat car across the workshop. Streamers can be used to reduce cable wear at low speeds. The running distance of this series of flatbed transfer freight carts should not be too long, generally less than 20 meters. Due to the simple mechanism and low cost, it is a common track flatbed in the workshop.

transfer freight cart





Reducer

1. The gears of the reducer are hard tooth surfaces.

2. Steady Gear Drive of Reducer

3. The installation of reducer is very convenient.

4. Electric flat car can achieve any speed

5. Operation speed of electric flat car: 20m/min

6. Reducer adopts SEW



Technical Parameters Of Customized High Frequency Flatbed Transfer Freight Carts with Low Height

Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(Km) 6.5 4.8 4 3.8 3.2
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100

QU100



Wheel

1. The surface hardness of the wheel reaches: HB320-380.

2. Wheels with single rim

3. Flexible rotation of single wheel

An electric appliance

1. The control device has the function of speed regulation.

2. The control device has the function of sound and light alarm.

3. The control device is operated by a wired handle.



transfer freight cart



Advantage

This series of electric transfer freight carts can be used for ordinary rail transportation with high frequency, harsh and high temperature environment, unlimited working time and 24-hour uninterrupted work. This series of track flat cars have no restrictions on the use time, high frequency, frequent start and stop, and can add frequency converter endless speed regulation device.



transfer freight cart
