Yellow Die Transfer Cart With I Beam Welded 6-7 Hours Working Time

Yellow Die Transfer Cart With I Beam Welded 6-7 Hours Working Time
Yellow Die Transfer Cart With I Beam Welded 6-7 Hours Working Time Yellow Die Transfer Cart With I Beam Welded 6-7 Hours Working Time Yellow Die Transfer Cart With I Beam Welded 6-7 Hours Working Time Yellow Die Transfer Cart With I Beam Welded 6-7 Hours Working Time

Large Image :  Yellow Die Transfer Cart With I Beam Welded 6-7 Hours Working Time

Product Details:
Place of Origin: China(Mainland)
Brand Name: PERFECT
Certification: SGS\CE\ISO
Model Number: billet transfer car
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 2000~14000 SET
Packaging Details: trap and wooden case
Delivery Time: 37 work days after received balance payment
Payment Terms: D/P, D/A, MoneyGram
Supply Ability: 90 Sets Per Month
Detailed Product Description
Running Speed: 0~20m Per Minute Warranty: 24 Month Long Guarantee
Color: Yellow/Customized Special Function: Anti-Explosion, Heat-Resistant, Lifting, Dumpling
Working Time: 6~7 Hours
High Light:

die handling equipment

,

powered trolley cart

,

Yellow Die Transfer Cart

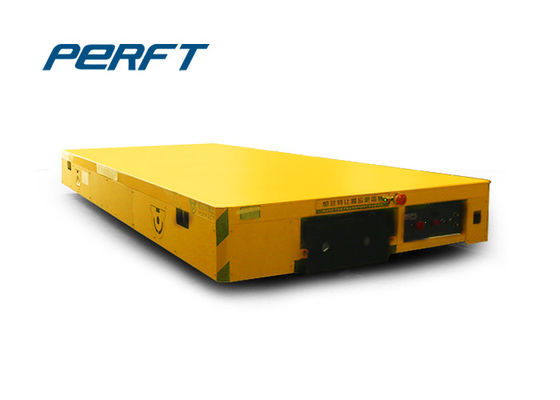

Customized Billet Transfer Car with I-beam Welded into a Frame



The frame adopts the frame structure. It is made of I-beam welded into a frame, in which the longitudinal beam, the cross beam and the countertop are paved with steel plates.



Customized Billet Transfer Car with I-beam Welded into a Frame

Transmission system of billet transfer car:
(1) The reducer of the transmission is a three-in-one reducer of the electric flat car. The output shaft, that is, the axle of the drive wheel and the main wheel pair form a transmission assembly, which facilitates the assembly assembly and disassembly and inspection.
(2) The accuracy grade of gear reducer of gearbox conforms to grade 8-8-7 of GB10096. Tooth surface hardness: the pinion gear is not lower than 240HB, and the large gear is not lower than 180HB. Tooth surface roughness: When the normal modulus m is less than or equal to 8 mm, the surface roughness parameter R is 3.2 μm; when m is greater than 8 mm, the surface roughness parameter R is 6.3 μm. Tooth surface hardness of a pair of meshing gears: the pinion gear is not lower than 240HB; the large gear forgings are not lower than 187HB, and the castings are not lower than 179HB. The tooth has no defects and no weld repair. The assembled reducer is flexible and has no oil leakage. The noise of the reducer is no more than 80dB (A) when it is running.
(3) The noise when the reducer is running is not more than 80 decibels. The advantage of this type of transmission is that there are fewer parts. The decoration is convenient, the starting is easy, the operation is stable, the noise is low, and the whole transmission device can be installed as an assembly underneath. Then push under the frame, screw the eight bolts on both sides and the hanging nuts at the ends.



Parameters of Motorized Heavy Transporter

Model BWP-5t BWP-20t BWP-30t BWP-40t BWP-50t
Rated Load(t) 5 20 30 40 50
Impacted rated load(t) 5 20 30 40 50
Structure of Frame Steel plates welded, beam
thickness of the steel plate 8 14 14 16 16
Cart weight(t) 4.3 7.9 8.8 10 10.5
Max. wheel load (t) 2.8 5.6 7.7 10 12
Ground requirement Cement floor or Steel plate ground
Ground Clearance(mm) 50 50 50 50 50
Table size (mm) 3000*2000 4500*2200 5000*2200 5500*2300 6000*2300
Height of the whole cart (mm) 450 600 650 700 700
Wheel base (mm) 1500 1700 1700 1800 1800
Axles distance (mm) 2500 3900 4300 4800 5200
Turning radius (mm) 2501 3901 4301 4801 5201
Turning type Turning while driving with no stop
Control method for turning Control button
Turning structure Mechanical
Motor power (KW) 3.5 7 10 12 15
Wheel diameter (mm) 300 (4) 400 (4) 400 (6) 500 (6) 500 (6)
Wheel material ZG55+hydropurture
Running speed (m/min) 0-15 0-12
Brake principle Electric magnetic brake
Ground balance mechanical automatic adjustment
Operation method With wire or no wire
Battery model D-250 24pieces D-440 24pieces D-250 36pieces D-330 36pieces D-440 36pieces
Battery maintenance Free of maintenance
Charger's installation Installed on cart Split-type
Cart color Yellow and warning sign
Charger's function Automatic stop for obstacles
Radar control 3-0.3 m, Automatic stop for obstacles
Warning equipment Sound and light
Other functions Turning light, night light and power display

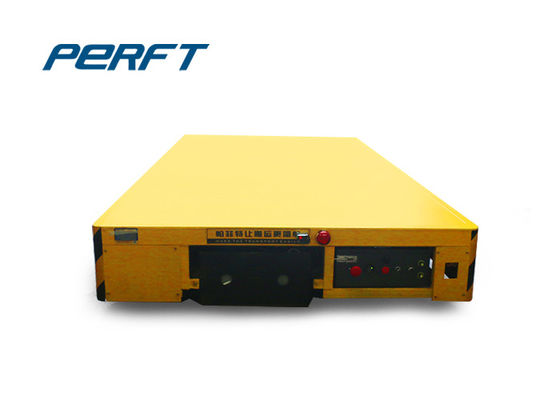

Yellow Die Transfer Cart With I Beam Welded 6-7 Hours Working Time 1


Electrical and electronic control systems of billet transfer car:
(1) Manipulation mode The operation of the button switch is carried out by hand, and the forward and backward jog buttons are provided. The main electrical components of the control box are made of well-known brand products.
(2) The on-board control box is located on the side of the flat car and is mounted in a recessed wall.
(3) The main electrical components of the control box are made of well-known brand products, made of steel plate, beautiful and practical, the surface of billet transfer car is sprayed with anti-corrosion treatment, the thickness of the box is not less than 2 mm, the heat sink is good, the door lock is firm and reliable, easy to use. do not interfere.
(4) Each electrical component is firmly installed on the vehicle, and the operation is not loose; the wiring inside the frame is piped, and the pipe is fastened with the pipe clamp; the bending radius of the threading pipe is not less than 1.5 times of the pipe diameter; No joint; use copper core rubber insulated wire; temperature rise of motor and other components does not exceed 80 °C.

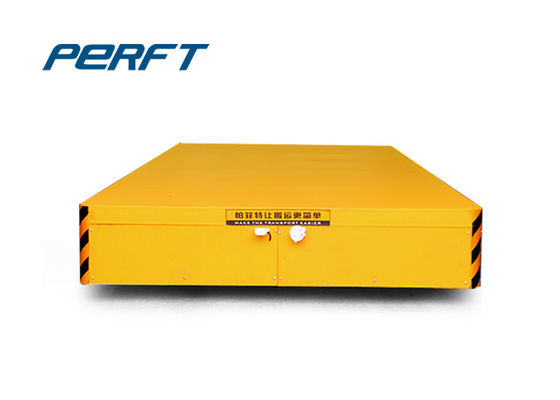

Yellow Die Transfer Cart With I Beam Welded 6-7 Hours Working Time 2

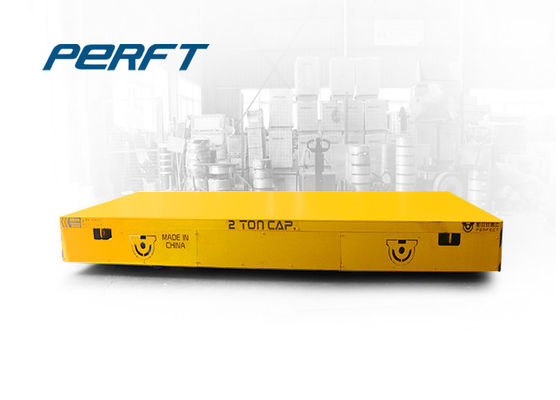

Yellow Die Transfer Cart With I Beam Welded 6-7 Hours Working Time 3
