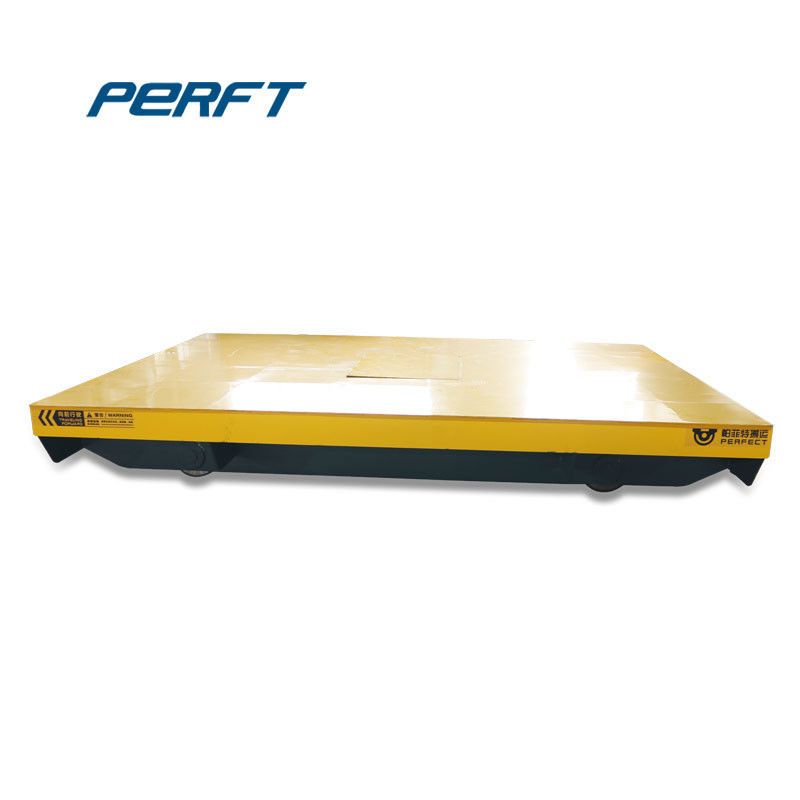

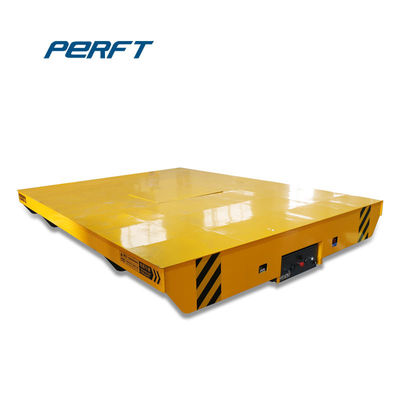

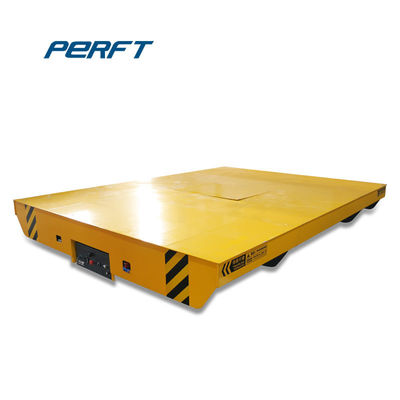

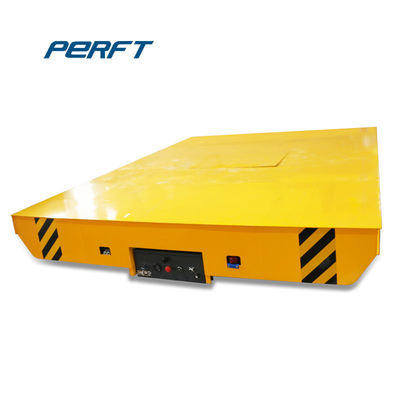

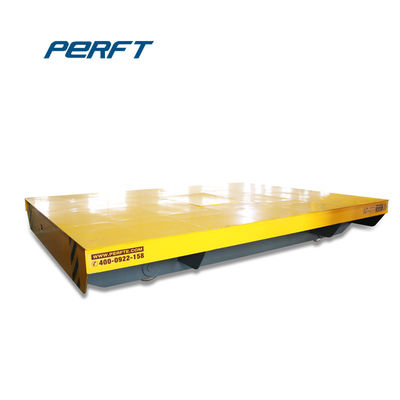

4 Rubber Wheels Automatic Busbar Powered Rail Transfer Cart 20m/Min

4 Rubber Wheels Automatic Busbar Powered Rail Transfer Cart 20m/Min
4 Rubber Wheels Automatic Busbar Powered Rail Transfer Cart 20m/Min
video play

Large Image :  4 Rubber Wheels Automatic Busbar Powered Rail Transfer Cart 20m/Min

Product Details:
Place of Origin: China(mainland)
Brand Name: Busbar Powered Transfer Car
Certification: CE ISO SGS
Model Number: Busbar Powered Transfer Car
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000~9000
Packaging Details: trap and wooden case
Delivery Time: 20 work days after received balance payment
Supply Ability: 100 sets month
Detailed Product Description
Place Of Origin: Henan, China (Mainland) Color: Customized
Material: Q235 Capacity: 1-300ton
Running Speed: 0-20m/min After-sales Service Provided: Engineers Available To Service Machinery
High Light:

busbar powered rail transfer cart

,

SGS 4 wheels rail transfer cart

,

rail transfer cart 20m/min



4 Rubber wheels Automatic Busbar Powered Rail transfer Trailer



product presentation

The BHX series transfer car is powered by the busbar. The alterative current is suppiled consistently to the pulling motor by slide knife taken from sliding contact line through electric contrql system , which makes the car start ,stop, move forward and relize other functions.The sale sliding contact line can be installed in the middle of the tracks or by the outside of the tracks or in the trench or under the roof of the plant .Positing fixture ,lifture, lifting platform, clamping device and other auxiliary device are optional to meet different demands on various occasions. The BHX series is suitable in inflammable environment and in high requency.



4 Rubber Wheels Automatic Busbar Powered Rail Transfer Cart 20m/Min 0



Production support details


1.Load capacity,table size and rail gauge can be customized.



2.Options:slid line(slid line with seamless slid line)



3.Automatic stop when detacting obstacle or person ,limit switches



4. Operation way(hand held control pendant, remote radio control or operation platform with the cart.



5.Electrical parts(imported or made in China).



6.Slide line installation(in the trench on the ground, on the wall and on the ceiling)



7.Variable speed device



8.Can be desiged to meet special working environment  such as high temprature.



Technical Parameters

Model BHX-2t BHX-20t BHX-50t BHX-100t BHX-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 25 20 20 20 18
Motor Power(kw) 0.8 2.5 5.5 11 15
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.3 5.5 7.6 13.9 26
Recommended Rail Model P15 P24 P43 QU100 QU100





Packing and Transportation



Our electric transfer cart not only have sold across the country, but also exported to US, Germany, Thailand, Netherlands, South Africa, Syria, Turkey, Nepal etc. The coil carriage body is packed with tarp, and the wheel and parts of the electric flat cart will be packed with wooden case. According the table size and quantity, the electric plate transfer cart would be transported to clients by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.


4 Rubber Wheels Automatic Busbar Powered Rail Transfer Cart 20m/Min 1





Why choose us

  Henan Perfect Handling Equipment Co., Ltd is a professional & international manufacturing factory specialized in researching, developing, producing and selling material handling equipment.Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-1300 tons.Our company specialized 16 years, getting 8 national patents, so we have the best quality and the lower price.



busber powered transfer car
