Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel | Running Speed(m/min): | 20 |
|---|---|---|---|
| Product Name: | Heavy Duty Hydraulic Lifting Reel Powered Trackless Transfer Flat Cart | Motor Power(Kw): | 3.5-15 |
| Rail Inner Gauge(mm): | 1200-2000 | Wheel Quantity: | 4 |
| Wheel Diameter(mm): | Ø270-Ø600 | Ground Clearence(mm): | 50-75 |
| High Light: | heavy duty trackless transfer cart,hydraulic lifting trackless transfer cart,reel powered trackless transfer cart |
||

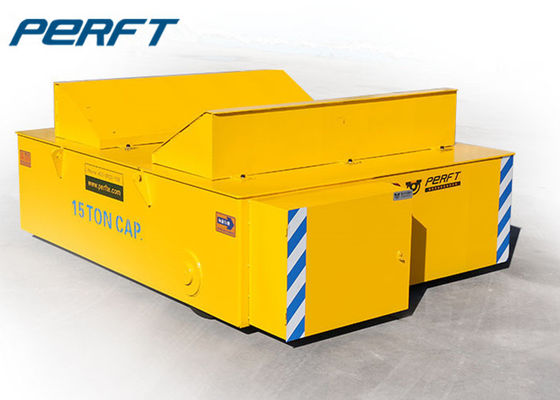

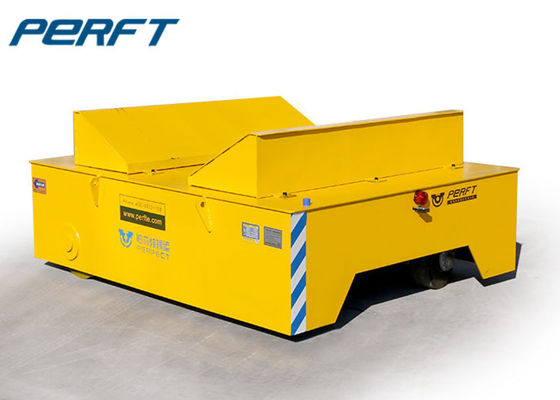

Heavy duty Lifting Reel powered Trackless Industrial Transfer Flat Cart
Product Descraption
Heavy duty Hydraulic Lifting Reel powered Trackless Transfer Flat Cart is cable reel powered .Cable is collected and released bycoiling device mounted underneath the car , and the supply power ways can be customized,such as battery,rail,cable drum... The series car canrun freely with no limitation of distance and lifting frequency.The car has such advantages like convenient operating and easy lifing ,besides, two cars of this type can lift the heavy equipment together.
More details
1.The series car can be applied in the environment such as low temperature environment.
2. The series car is powered by the cable reel. The cable reel is the magnetic coupling to ensure the cable can operate smoothly without pressure.
2. The electric industrial Transfer Trolley can run automatically when the cable reel rolled up or released.
3. The general maximum running distance is less than 200m because of the limited cable. And you should add the line device to make the cable smooth when the distance is over 30m.
4. The series electric industrial Transfer Trolley mainly includes the car frame, motor, reducer, wheel, cable reel etc.
5. Industrial Transfer Trolley is designed for transporting heavy cargoes or equipment from factory.
0
Technical parameter table
|
Rated Load(t) |
2 |
10 |
20 |
30 |
40 |
50 |
63 |
80 |
100 |
150 |
|
Wheel Base(mm) |
1200 |
2600 |
2800 |
3200 |
3800 |
4200 |
4300 |
4700 |
4900 |
7000 |
|
Rail Inner Gauge(mm) |
1200 |
1435 |
1435 |
1435 |
1435 |
1435 |
1435 |
1800 |
2000 |
2000 |
|
Wheel Quantity |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
|
Wheel Diameter(mm) |
Ø270 |
Ø300 |
Ø350 |
Ø400 |
Ø500 |
Ø500 |
Ø600 |
Ø600 |
Ø600 |
Ø600 |
|
Ground Clearence(mm) |
50 |
50 |
50 |
50 |
50 |
50 |
75 |
75 |
75 |
75 |
|
Running Speed(m/min) |
0-25 |
0-25 |
0-20 |
0-20 |
0-20 |
0-20 |
0-20 |
0-20 |
0-20 |
0-18 |
