Product Details:
Payment & Shipping Terms:
|
| Warranty: | 12 Month Long Guarantee | Capacity: | 1-300T |
|---|---|---|---|
| Power Supply: | Battery | Running Speed: | 0-25m/min(Adjustable) |
| Material: | Q235 Steel | Color: | Customized |
| Product Name: | Trackless Battery Power Electric Transfer Cart | After-sales Service Provided: | Field Maintenance And Repair Service |
| High Light: | trackless motorized carts,customization motorized carts heavy duty,25m/min motorized carts |
||

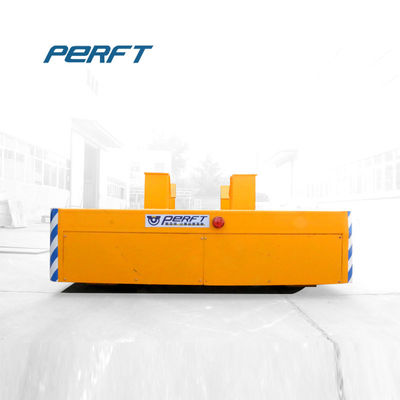

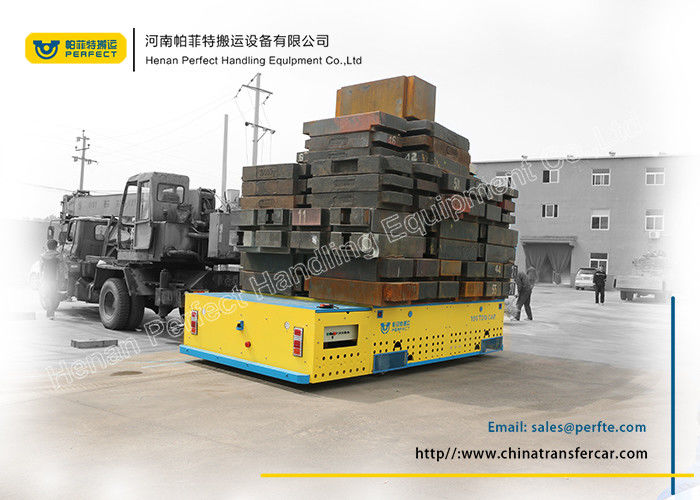

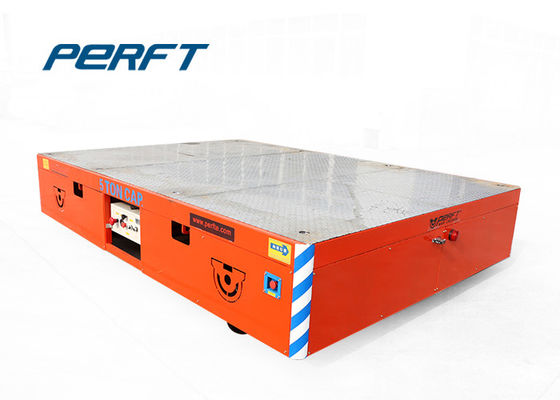

Customization Trackless Battery powered Heavy duty Transfer cart
Why choose trackless Battery powered Heavy duty Transfer cart
1.Lowest cost:
Compared with the traditional way of handing cranes and forklifts , the trackless transfer car is not only the lowest cost of purchase, but also the lowest of operation and the easier maintenance.
Parameter of Trackless Battery powered Heavy duty Transfer cart| Model | BWP-2t | BWP-20t | BWP-50t | BWP-100t | BWP-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 | |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Henan Perfect Handling Equipment Co., Ltd has been devoting to development Manufacture & Sale Of Material Handling System for more than 15 years. We Invest a large amount of money each year for product innovation. Therefore, our products are in a leading position in the industry.
