Flat Table Battery Powered 15kw Motorized Transfer Cart

China Henan Perfect Handling Equipment Co., Ltd. certification
China Henan Perfect Handling Equipment Co., Ltd. certification
Generally we are very satisfy with functionality of trailers and I would like to thank you for your good support and communication!

—— Tomislav Blazeka

Your solution is very convincing to me and we are looking forward to build the experimental and commercial drying plant with your equipment.

—— Veronica Cardenas

The experience we had was really remarkable and the equipment is found very good.

—— FAO Adam Fisher

I'm Online Chat Now

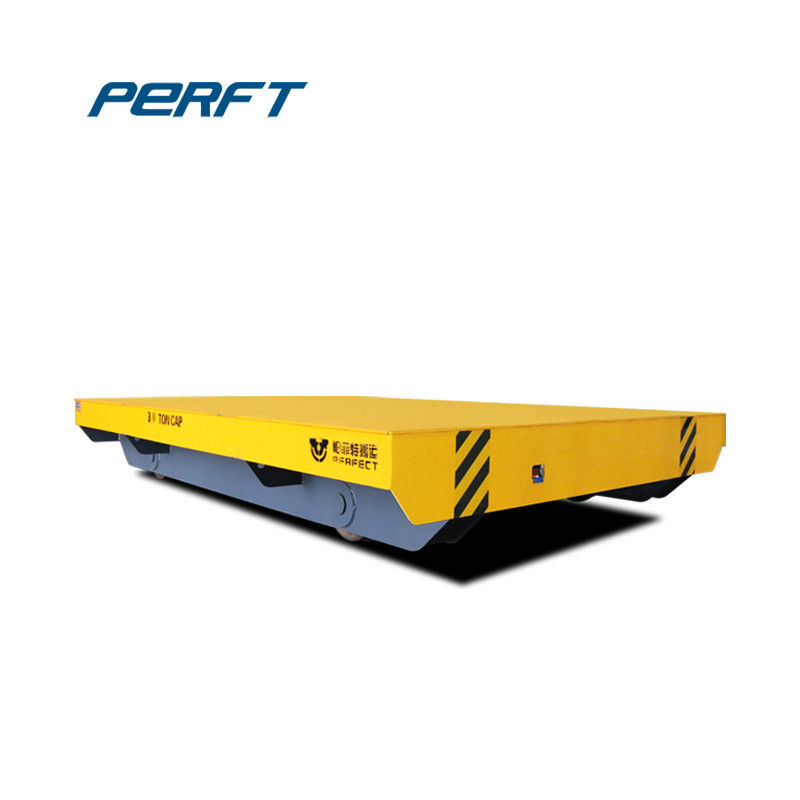

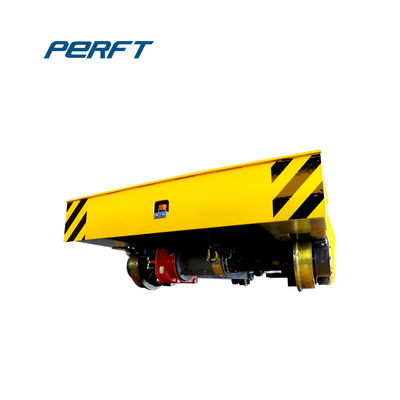

Flat Table Battery Powered 15kw Motorized Transfer Cart

Flat Table Battery Powered 15kw Motorized Transfer Cart
Flat Table Battery Powered 15kw Motorized Transfer Cart
video play

Large Image :  Flat Table Battery Powered 15kw Motorized Transfer Cart

Product Details:
Place of Origin: Henan China
Brand Name: Rail Transfer Cart
Certification: CE ISO SGS
Model Number: Rail Transfer Cart
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Usd1800-5000/set
Packaging Details: Trap and wooden case
Delivery Time: 20 work days after received balance payment
Supply Ability: 30sets/week
Detailed Product Description
Type: Rail Transfer Cart Product Name: Heavy Duty Battery Powered Flat Rail Transfer Cart For Factory Warehousing And Industrial Material Handling Trailer
Ground Clearance(mm): 50 Running Speed(min): 0-25
Battery Capacity: 600 Motor Power(kw): 15
Running Distance For One Charge(Km): 6.5 Battery Voltage: 24-72
Running Time When Full Load: 2.9-4.32
High Light:

heat resistant motorized transfer cart

,

heat resistant motorized transfer trolley

,

CE motorized transfer carts



High quality motorized Flat table Rail Battery power Electric Cart



Why choose This Series car

1.The car can be applied in the environment such as severe enviornment , high temperature , anti explosive.

2.The series car can be applied in the occasion with any loading capacity and high using frequency.

3.The transport distance is unlimitade .

4.The car is smmoth high torque and low voltage.

Flat Table Battery Powered 15kw Motorized Transfer Cart 0





Analytical graph



 heavy duty battery powered flat rail transfer cart  for factory warehousing and industrial material handling trailer



Technical Table

Model

BXC-2t

BXC-20t

BXC-50t

BXC-100t

BXC-150t

Rated Load(t)

2

20

50

100

150

Table Size(mm)

Length(L)

2000

4000

5500

6500

10000



Width(W)

1500

2200

2500

2800

3000



Heigth(H)

450

550

650

900

1200

Wheel Base(mm)

1200

2800

4200

4900

7000

Rail Inner Gauge(mm)

1200

1435

1435

2000

2000

Wheel Diameter(mm)

270

350

500

600

600

Wheel Quantity

4

4

4

4

8

Ground Clearance(mm)

50

50

50

75

75

Running Speed(min)

0-25

0-20

0-20

0-20

0-18

Motor Power(kw)

1

2.2

5

10

15

Battery Capacity

180

180

330

440

600

Battery Voltage

24

48

48

72

72

Running Time When Full Load

4.32

4

3.3

3.2

2.9

Running Distance for One Charge(Km)

6.5

4.8

4

3.8

3.2

Max Wheel Load(KN)

14.4

77.7

174

343.8

265.2

Reference Weight(t)

2.8

5.9

8

14.6

26.8

Recommended Rail Model

P15

P24

P43

QU100

QU100



Company

Flat Table Battery Powered 15kw Motorized Transfer Cart 2

Henan Perfect Handling Equipment Co., Ltd is a professional & international manufacturing factory specialized in researching, developing, producing and selling material handling equipment.Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-1300 to
ns, our main products including BDG conductor rail transfer cart, BJT cable drum transfer cart, BHX safety sliding line transfer cart, BXC battery type transfer cart, BTL towed cable type transfer cart, BP non-power type transfer cart, BQY train towed type transfer cart, BWP trackless type and special type transfer cart, such as turning, trackless,ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
