Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Henan, China (Mainland) | Product Name: | Transfer Cars Run On A Turntable To Achieve 90 Degree Rotation |
|---|---|---|---|
| Application: | Industrial Filed | Capacity: | 1-300ton |
| Running Speed: | 0-20m/min | After-sales Service Provided: | Engineers Available To Service Machinery |
| High Light: | 300t transfer turntable,300t Remote Control transfer turntable,Factory Use transfer turntable |
||

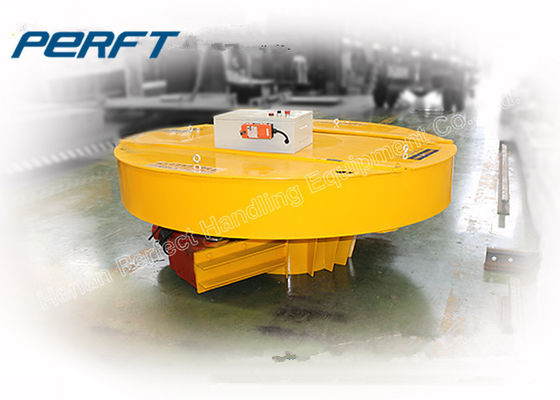

Electric System Remote control Factory use transfer cars run on a turntable
DESCRAPTION

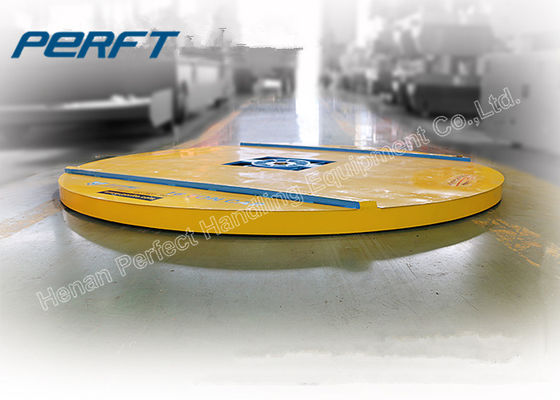

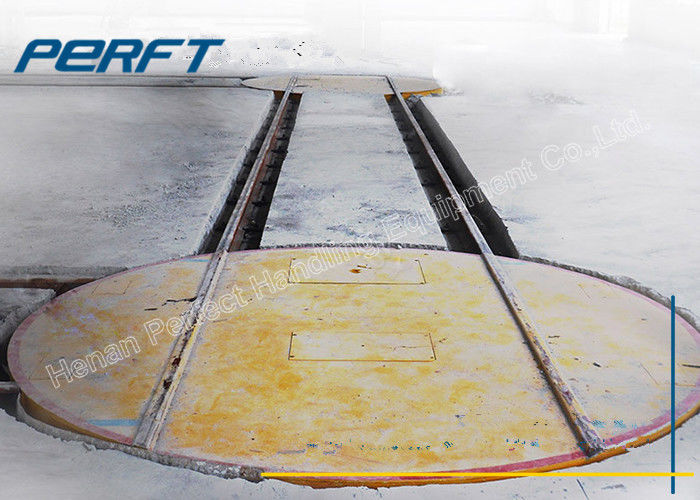

The transfer cars run on a turntable is a kind of handing system ,which can make the rail car turn 90 degree on rails .Principle: transfer cars runs on the turntable ,which will automatically rotate or manually rotate to realize the joint with vertical rails .After turnable rotating ,the transfer cars run on a turntable can run along the vertical rails .The handing solution can be applied in the occasion such as ring rails ,etc. The turnable system runs steadily and has the features such as high rail jointing accuracy and can meet full automatic electrical control.
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
|
Wheel Base(mm) |
1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 25 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
