| Type: | Ladle Rail Transfer Cart | Ground Clearance(mm): | 50 |
|---|---|---|---|
| Product Name: | Hot Molten Steel Ladle Electric Rail Flat Transfer Cart With High Temperature Resistance Material | Wheel Diameter(mm): | 270-600 |
| Running Time When Full Load: | 2.9-4.32 | Rail Inner Gauge(mm): | 1200-2000 |
| Turnning Radius(mm): | 2501-5201 | ||
| High Light: | 150 ton ladle transfer car,150t ladle transfer car,1t ladle rail transfer cart |
||

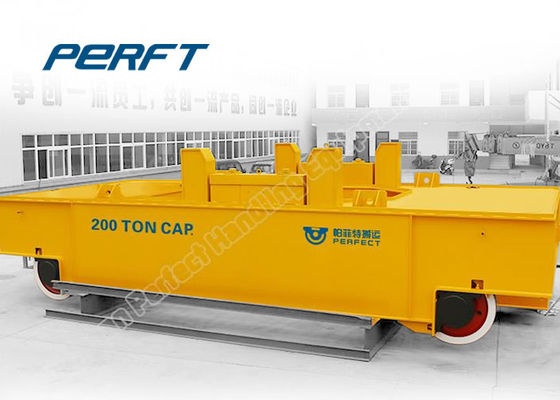

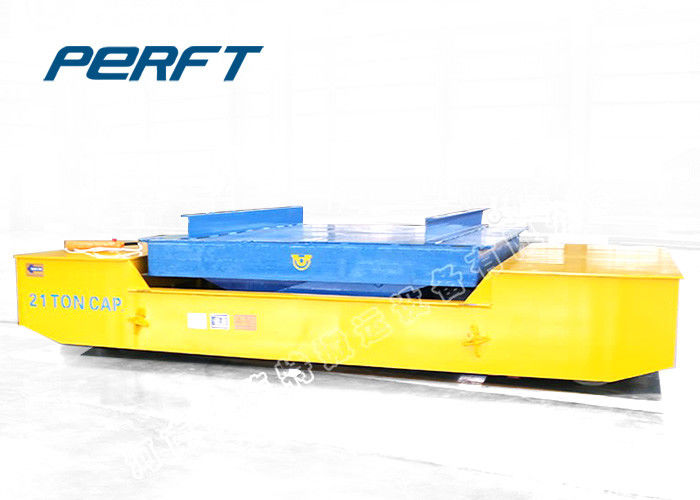

1-150T Stone mine use Top Quality Heavy load Electric Ladle rail transfer cart
details
The Electric Ladle cart is a rail electric cart and running on the rails.due to its power supply, the rail ladle transfer cart get rid of the limitation of cable, and has no strict requirement for the rails. The kinds of Electric Ladle cart running on rail can be operated via remote control, which makes the Electric Ladle cart more convenient and safety. What’s more, due to this power. Electric Ladle cart can run without limited distance as long as charged fully!
Why we choose Electric Ladle cart
1.Ladle electric rail flat transfer cart with High temperature resistance material.
2.The traction motor of the ladle electric rail flat transfer cart is designed in slowly start and stop to reduce the inertia of the ladle transfer cart and avoid molten steel or slag from splashing.
3.In order to prevent the high temperature,the ladle electric rail flat transfer cart's body is provided with heat insulation material.
4.The automatic stop device is installed inside the ladle electric rail flat transfer cart body.
5.The traction motor of the ladle electric rail flat transfer cart is designed to start and stop slowly, free from turning and road conditions
.DC motor controlled, The speed can be adjusted.
6.The running distance of this kinds ladle electric rail flat transfer cart running on rail is not limited.
Product Parameter
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
FAQ:
1. Q: What is the size and load of this Rail Coil Transfer Car?
A:The size and load of our this rail coil transfer car is customized design according to your requirement.
2. Q: How do you transport the Rail Coil Transfer Car and what is the package ?
A: For the big part, we will pack the rail coil transfer car with tarpaulin and wood pallet on the bottom of the rail coil transfer car to prevent it from moving. For the small part, we will pack it in wood case.
Industry Rubber Wheel Electric Trackless Transfer Cart Manufacturers
3. Q: What is the leading time, delivery term, and payment term?
A: Usually our leading time is 45 days, for some special rail coil transfer car, such as rail coil transfer car, it maybe longer to 60 days. About the delivery term, we accept EXW, FOB, CIF, DDU. About the payment, we accept T/T or L/C.
Industry Rubber Wheel Electric Trackless Transfer Cart Manufacturers
4. Q: What is your MOQ?
A: At present, our MOQ is 1 set.
5. Q:Can choose the power supply?

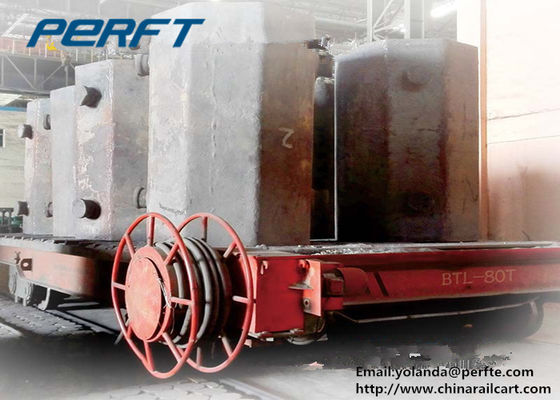

A:Yes,such as the cable drum, rail powered, busbar powered ,trailing cable powered, etc.
