Product Details:
Payment & Shipping Terms:
|
| Product Name: | Coil High Temperature Steel Ladle Workshop Handling Tractor | Table Size: | Customized |
|---|---|---|---|
| Color: | Customized | Running Speed: | 0-20m/min |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | ||
| High Light: | customization ladle transfer car,trackless ladle transfer car,battery powered ladle transfer car |
||

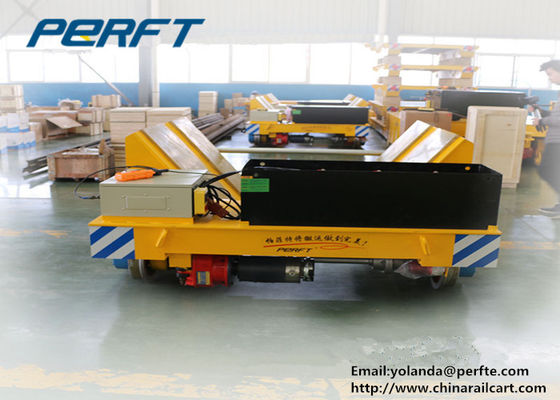

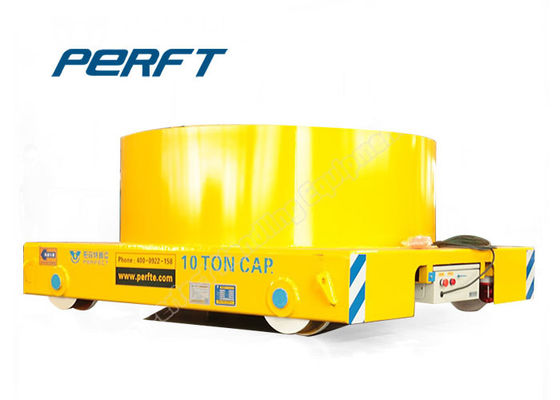

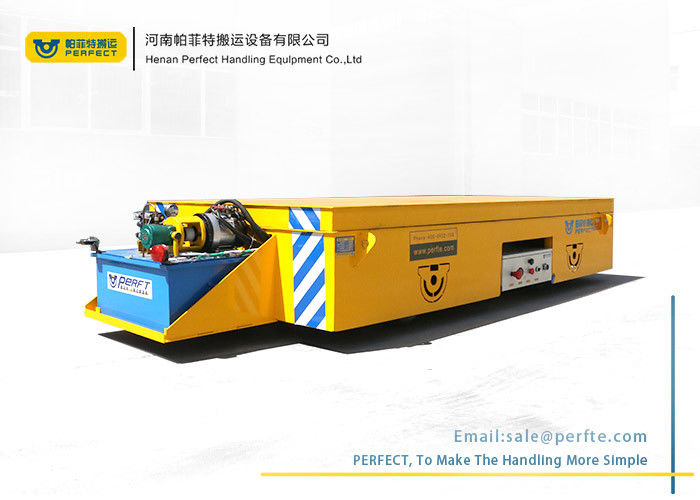

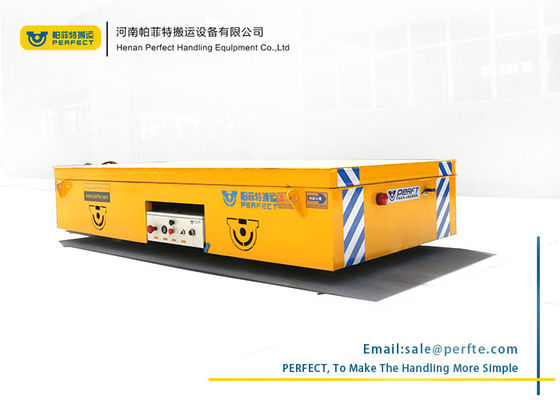

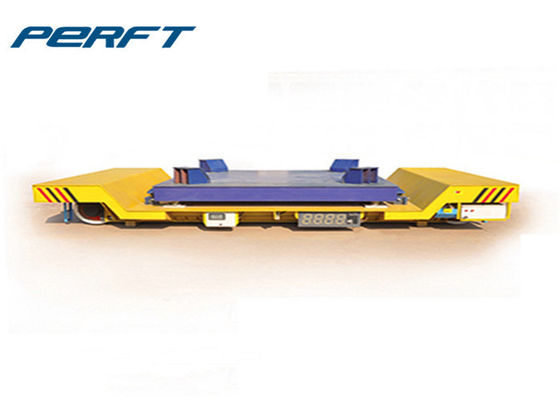

Customization Trackless Battery powered Heavy duty High temprature Ladle transfer cart
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Max. Wheel Load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground Requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table Size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 |
| Height (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel Base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles Distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning Radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning Structure | Mechanical | ||||
| Motor Power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel Diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel Material | ZG55+hydropurture | ||||
| Running Speed (m/min) | 0-15 | 0-12 | |||
| Brake Principle | Electric magnetic brake | ||||
| Operation Method | Raido Remote Control | ||||
| Battery Maintainance | Free of maintainance | ||||
| Charger's Installation | Installed on cart | Split-type | |||
| Cart Color | Customized | ||||
| Charger's Function | Automatically cut off the power when the battery is fully charged | ||||
| Radar Control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning Equipment | Horn and Flash Light | ||||
| Other Functions | Turning light, night light and power display | ||||
Our products have gotten 8 patents and exported to more than 50 countries and regions. Our main products include battery operated transfer trolley, hydraulic motor driven mobile trolley, cable operated transfer trolley, industrial trailers, non-powered transfer cart, electric rail car, motorized transporter, coils transport trolley, high temperature resistance steel ladle transfer cart and so on.
