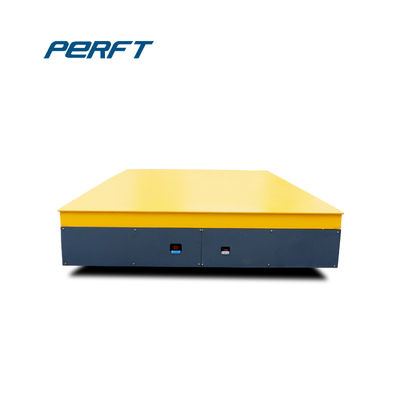

Stone Mine Heavy Material Handling Industry Q235b Die Transfer Cart

Stone Mine Heavy Material Handling Industry Q235b Die Transfer Cart
Stone Mine Heavy Material Handling Industry Q235b Die Transfer Cart Stone Mine Heavy Material Handling Industry Q235b Die Transfer Cart Stone Mine Heavy Material Handling Industry Q235b Die Transfer Cart Stone Mine Heavy Material Handling Industry Q235b Die Transfer Cart Stone Mine Heavy Material Handling Industry Q235b Die Transfer Cart

Large Image :  Stone Mine Heavy Material Handling Industry Q235b Die Transfer Cart

Product Details:
Place of Origin: Xinxiang, China
Brand Name: PERFECT
Certification: CE, SGS, ISO
Model Number: BWP
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: The body will be packed with tarp, and other parts will be packed with wooden cases.
Delivery Time: 45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 Sets per month
Detailed Product Description
Product Name: Industry Die Transfer Cart Powered Source: Battery
Operation Mode: Pandent And Remote Controller Cart Frame: Q235B
Load Capacity: 1-200T (Customized) Color: Yellow, Customized
Working Time: 6~7 Hours Wheel Type: Polyurethane Coated Wheel
Safrty Device: Buffer, Alarm Light, Emergency Stop Buttons Special Function: Anti-Explosion, Heat-Resistant, Lifting, Dumpling
High Light:

q235b rail transfer cart

,

q235b die transfer cart

,

cast iron workshop die transfer cart

Stone Mine use heavy Marerial handing Rail Industry Die Transfer Cart



Introductions



Our trackless transfer trolleies are powered by battery. It's trackless and consists of steel structure bearing frame. When the current get in the electric control system, the machine is powered to make the trolley stop, start, move forward and move backward. According to clients' requests, we can provide different kinds of products you want.

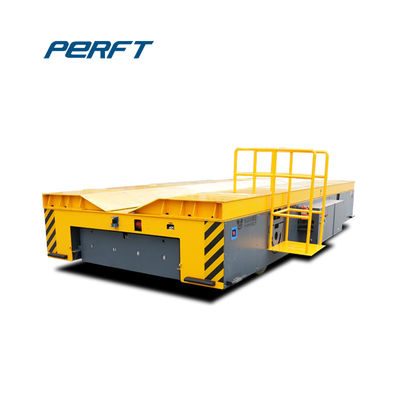

Stone Mine Heavy Material Handling Industry Q235b Die Transfer Cart 0



Customization



Appearance

Table size, Table material, Table type, Rated load, Color, Wheel base,Detachable structure, etc.
Special Function
Hydraulic lift table, Dumpling, Climbing, V shape, PLC control system, Automatic positioning, clamping device, Anti-explosion, Heat-proof function, Weighting system, etc.
Safety Device
Alarm light, Emergency stop button, Radar detector, Buffer, V shape support, Guardrails, etc.
Special Design

Round corner, Hold pendant box, Lifting hole, etc.

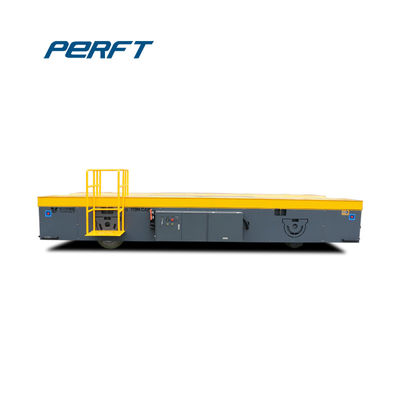

Stone Mine Heavy Material Handling Industry Q235b Die Transfer Cart 1





Parameters



Model BWP-5t BWP-20t BWP-30t BWP-40t BWP-50t
Rated Load(t) 5 20 30 40 50
Impacted rated load(t) 5 20 30 40 50
Structure of Frame Steel plates welded, beam
thickness of the steel plate 8 14 14 16 16
Cart weight(t) 4.3 7.9 8.8 10 10.5
Max. wheel load (t) 2.8 5.6 7.7 10 12
Ground requirement Cement floor or Steel plate ground
Ground Clearance(mm) 50 50 50 50 50
Table size (mm) 3000*2000 4500*2200 5000*2200 5500*2300 6000*2300
Height of the whole cart (mm) 450 600 650 700 700
Wheel base (mm) 1500 1700 1700 1800 1800
Axles distance (mm) 2500 3900 4300 4800 5200
Turning radius (mm) 2501 3901 4301 4801 5201
Turning type Turning while driving with no stop
Control method for turning Control button
Turning structure Mechanical
Motor power (KW) 3.5 7 10 12 15
Wheel diameter (mm) 300 (4) 400 (4) 400 (6) 500 (6) 500 (6)
Wheel material ZG55+hydropurture
Running speed (m/min) 0-15 0-12
Brake principle Electric magnetic brake
Ground balance mechanical automatic adjustment
Operation method With wire or no wire
Battery model D-250 24pieces D-440 24pieces D-250 36pieces D-330 36pieces D-440 36pieces
Battery maintenance Free of maintenance
Charger's installation Installed on cart Split-type
Cart color Yellow and warning sign
Charger's function Automatic stop for obstacles
Radar control 3-0.3 m, Automatic stop for obstacles
Warning equipment Sound and light
Other functions Turning light, night light and power display

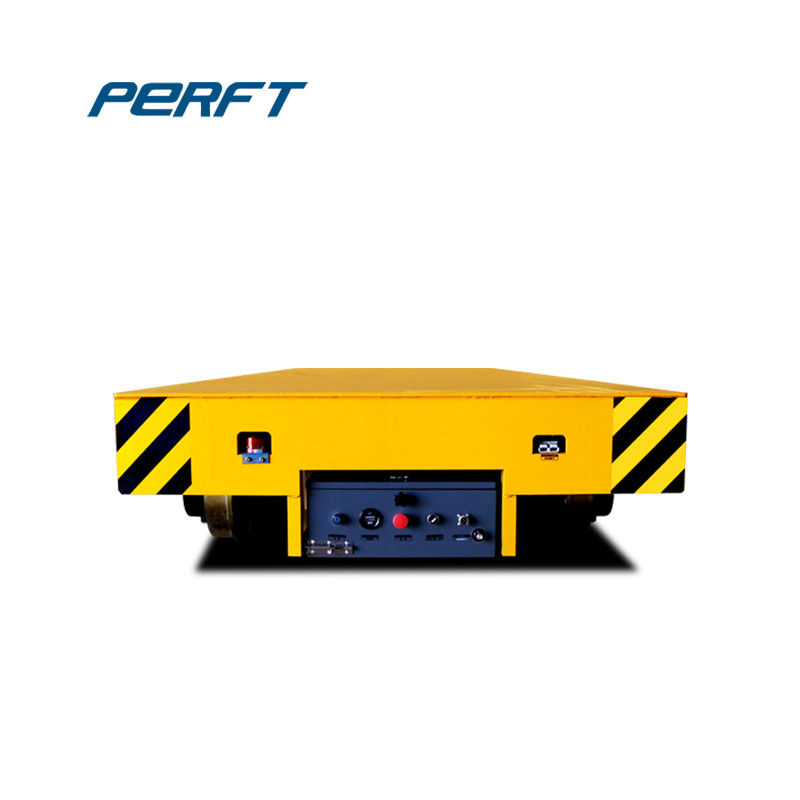

Stone Mine Heavy Material Handling Industry Q235b Die Transfer Cart 2

Why have to choose us



We are a collection of research and development, design, manufacturing as one of professional international company of handling equipment.
Our company specialized 16 years, getting 8 national patents, so we have the best quality and the lower price.

We make sure that the load bearing safety factor of the trolley is no less than 120%.Technical service and drawing material can also be provided.

Stone Mine Heavy Material Handling Industry Q235b Die Transfer Cart 3







Contact Information



Help you to choose the most suitable cart

Thank you very much for looking through the information above. If you are interested in our products, please send us an E-mail and tell us the following information. Thank you!

  • What material/cargo are you going to transfer?
  • What kind of ground does the transfer cart operate on? (rails or cement floor)
  • What’s the specification table size ? (length, width and height)
  • How long is the running distance?
  • How many working hours do you have everyday?
