Product Details:
Payment & Shipping Terms:
|
| Product Name: | Battery Powered Electric Flat Cars On Rail | Powered Source: | Battery |
|---|---|---|---|
| Capacity: | 1-300T | Warranty: | 12 Months |
| Color: | Customized | Application: | Industrial Filed |
| Feature: | Easy Operation | ||
| High Light: | Customization Ladle Battery Powered Transfer Carts,2t Battery Powered Transfer Carts,Customization Ladle Battery Powered Carts |
||

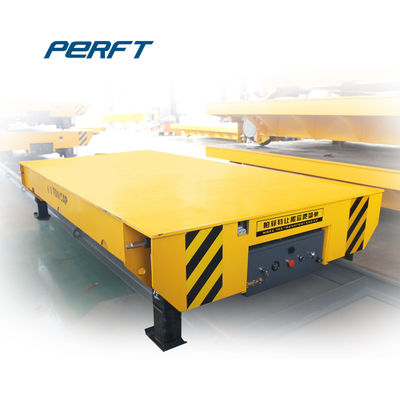

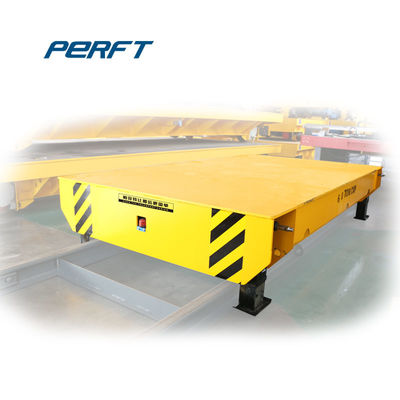

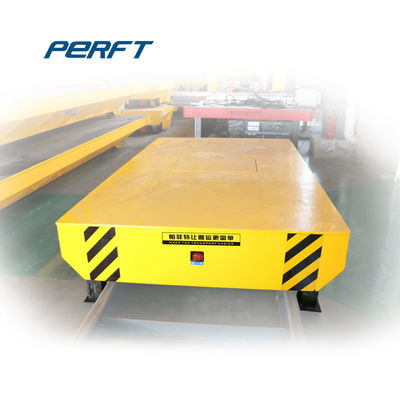

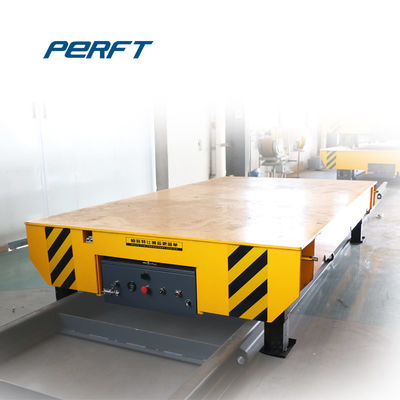

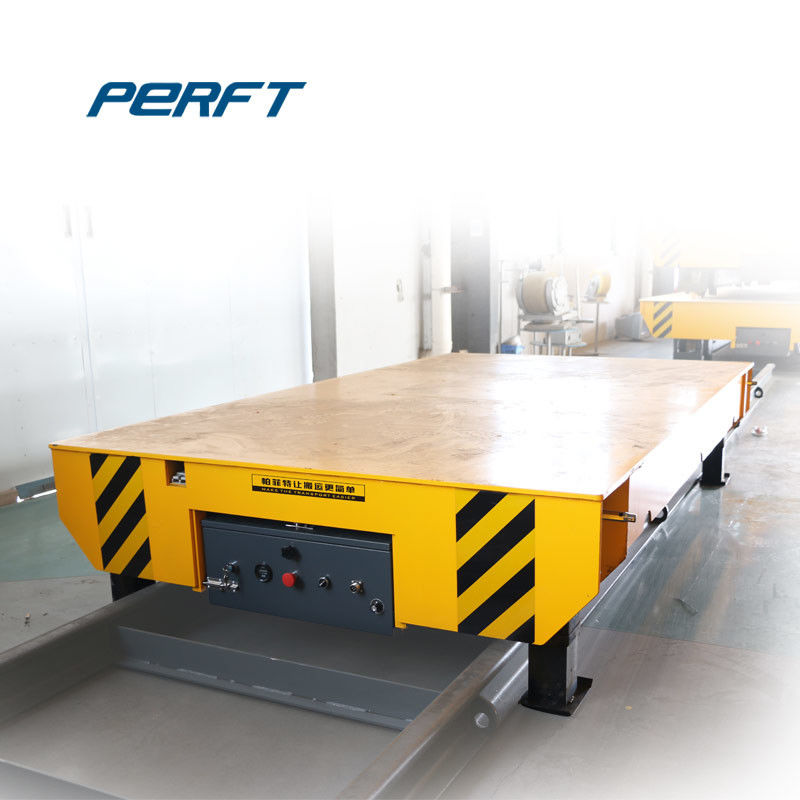

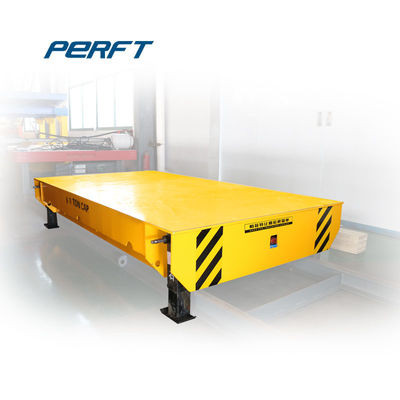

This battery powered electric flat cars on rail is usually used at ship yard, plant and factory, certain production line. The electric molten steel transfer car get power from the storage battery. The battery is installed inside the battery powered electric flat cars on rail. The battery powered electric flat cars on rail was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. It is usually used to transport the heavy and over sized loads such as dies, coils, equipment and other heavy materials.
Why choose our product
Our company has been founded for 13 years and has become enterprise in the motorized handling Railway Conveyer business.This battery powered electric flat cars on rail is powered by battery.The battery is installed inside the car.The current is supplied to pulling motor through electric contric system,which makes the Railway Conveyer start,stop,move forward,move backward,turn around,change speed,etc.RailwayConveyer Railway Conveyer
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
About our company
Henan Perfect Handling Equipment Co., Ltd is a professional & international manufacturing factory specialized in researching, developing, producing and selling material handling equipment.Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-1300 tons, our main products including BDG conductor rail transfer cart, BJT cable drum transfer cart, BHX safety sliding line transfer cart, BXC battery type transfer cart, BTL towed cable type transfer cart, BP non-power type transfer cart, BQY train towed type transfer cart, BWP trackless type and special type transfer cart, such as turning, trackless,ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
