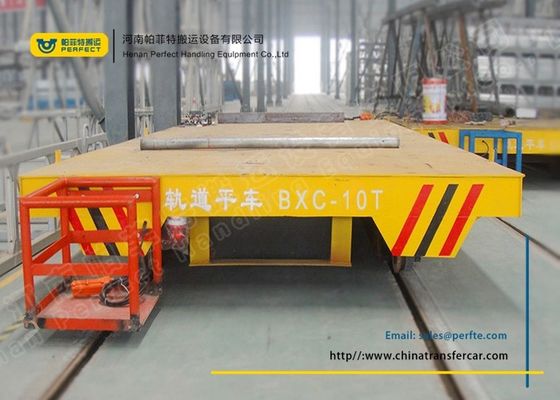

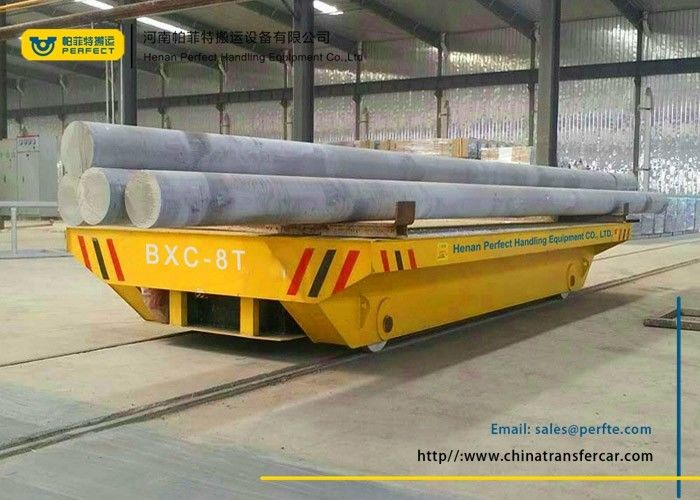

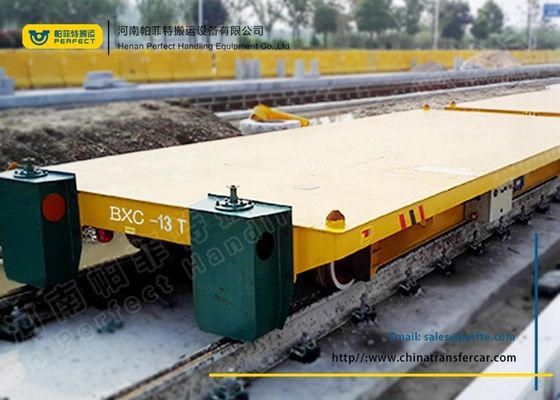

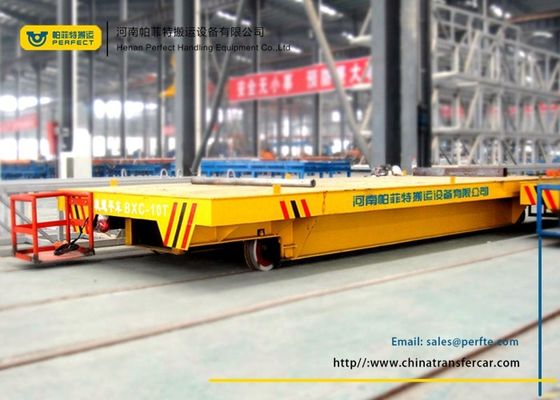

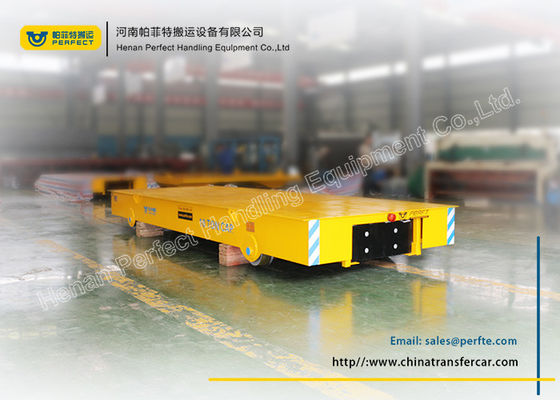

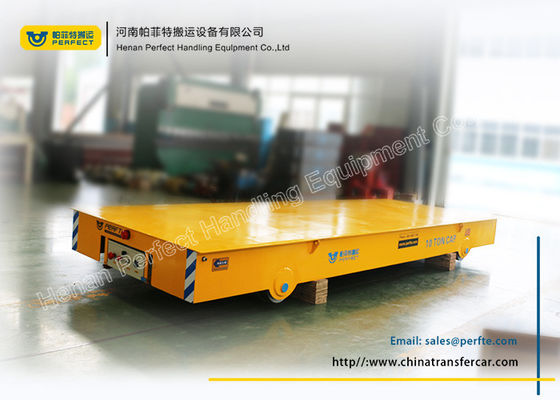

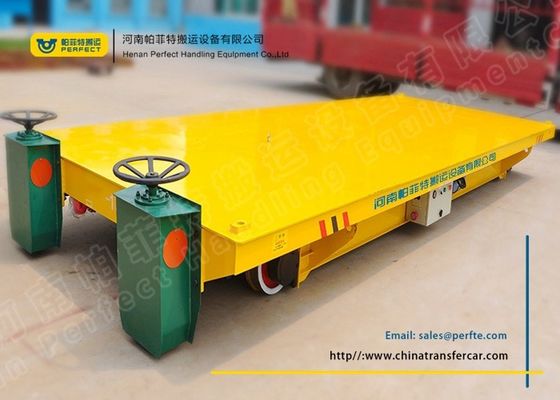

Customization Electric Coil Steel 1-100t Motorized Transfer Cart

Customization Electric Coil Steel 1-100t Motorized Transfer Cart
Customization Electric Coil Steel 1-100t Motorized Transfer Cart
video play

Large Image :  Customization Electric Coil Steel 1-100t Motorized Transfer Cart

Product Details:
Place of Origin: Xinxiang, China
Brand Name: PERFECT
Certification: CE, SGS, ISO
Model Number: BXC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: The whole cart is package with tarp, and parts will be packed by wood case
Delivery Time: 45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 75 Sets per month
Detailed Product Description
Load Capacity: Customized Operation Mode: Pandent And Remote Controller Or PLC
Application: Factory, Warehouse, Port, Construction, Steel Structure Rail Gauge: Customized
Wheel Type: Cast Steel Wheel Safrty Device: Buffer, Alarm Light, Emergency Stop Buttons
Special Function: Anti-Explosion, Heat-Resistant, Lifting, Dumpling Dimension: Customized
Usage: Heavy Duty Material Transportation Power Source: Battery
High Light:

1t Motorized Transfer Cart

,

100t Motorized Transfer Cart

,

1t Motorised Transfer Trolley

1-100t Customization High Quality Elctric Coil Steel Motorized Transfer Cart




Appliciation:

The transfer machine is designed for transporting cargoes or equipment from one bay to another in industry. It can be used indoor or outdoor. Such as metallurgy, manufacture,oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coil industry, paper mills, metal working, warehouse, building construction and so on. Its load capacity can up to 300Ton. We will supply you a suitable scheme according your specific appliciation.



Customization Electric Coil Steel 1-100t Motorized Transfer Cart 0



Our Brand VS Other Brand



trailer



Process Technology



First step, we choose high quality steel plate send to CNC cutting workshop for cuttingAfter that, our workers put the cut steel plate together according to the design drawing and weld them together, Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress. Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint. Assemble the structure parts after spraying primer with wheels, motors and gear box, etc. Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish. The last step is debugging, After the inspection, the cart will be transported to storage area



Parameter Table of Coil Steel Pallet Transfer Cart



Model BXC-2t BXC -10t BXC -20t BXC-50t BXC -100t
Rated Load(t) 2 10 20 50 100
Table Size (mm) Length(L) 2000 3600 4000 5500 6500
Width(W) 1500 2000 2200 2500 2800
Height(H) 450 500 550 650 900
Wheel Base(mm) 1200 2600 2800 4200 4900
Rail Inner Gauge(mm) 1200 1435 1435 1435 2000
Wheel Diameter(mm) 270 300 350 500 600
Wheel Quantity 4 4 4 4 4
Ground Clearance(mm) 50 50 50 50 75
Running Speed(min) 0-25 0-25 0-20 0-20 0-20
Motor Power(kw) 1 1.6 2.2 5 10
Max Wheel Load(KN) 14.4 42.6 77.7 174 343.8
Reference Weight(t) 2.8 4.2 5.9 8 14.6
Recommended Rail Model P15 P18 P24 P43 QU100



Customization Electric Coil Steel 1-100t Motorized Transfer Cart 2



Why choose this serise cart



1. It causes low noise level and give workers a good working environment.

2. All of our products are easy for operation.

3. It  could be operated in the harsh environment.

4. It can realize full automation operation.

5. High temperature and explosion proof;

6. With simple structure and cost effective;

7. Running distance is unlimited.



FAQ

1. Q: How to operate the electric transport cart?

A: It’s equipped with a remote controller that is used by the operator to control the transfer car movement .

2. Q: How do you guarantee the quality of the products?

A: The cart will be tested before delivery,also we got the CE SGS SASO certificates.Don’t worry,We supply after-sale service worldwide.

3. Q: What is the leading time, delivery term, and payment term?
A: Usually our leading time is 45 days.About the delivery term, we accept , FOB, CIF. About the payment, we accept T/T or L/C, etc.
4. Q: Can we choose the power supply for battery powered flat cart?
A: Yes,such as the cable drum, battery powered ,low voltage powered, busbar powered ,trailing cable powered, etc.

Customization Electric Coil Steel 1-100t Motorized Transfer Cart 3
