Product Details:
Payment & Shipping Terms:
|
| Capacity: | 1-300ton | Product Name: | 40 Ton Heavy Duty Electric Rail Transfer Cart Rail Guided Die And Mold Vehicle |
|---|---|---|---|
| Operation Mode: | Pendant And Remote Controller | Rated Load: | 2-150t |
| Running Speed: | 0-30m/min | Type: | Rail Transfer Cart |
| Max Wheel Load(KN): | 265.2 | Battery Capacity(Ah): | 180-600 |
| High Light: | customization electric transfer cart,stuff hanging electric transfer cart,warehouse electric transfer trolley |
||
Warehouse use Stuff handing Customization Electric Rail Transfer cart
Descraptions
The service cart is powered by cable reel or dragged cables. The traction motor that accepts power from electrical control system makes commands for the flat transfer cart, like moving forward and backward, or start, stop and so on.The cart can work within short and medium distance, flammable and combustible places and ports, etc. The cable type cart can be equipped with hydraulic lift system for more purpose. The whole machine has long service life and excellent performance in workshops.
Functions

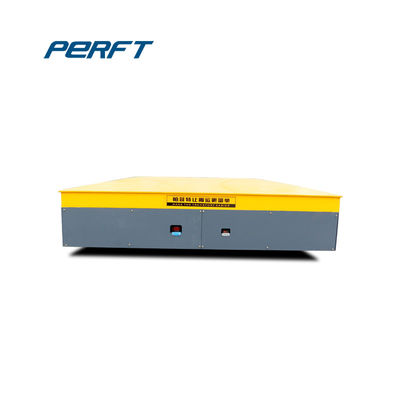

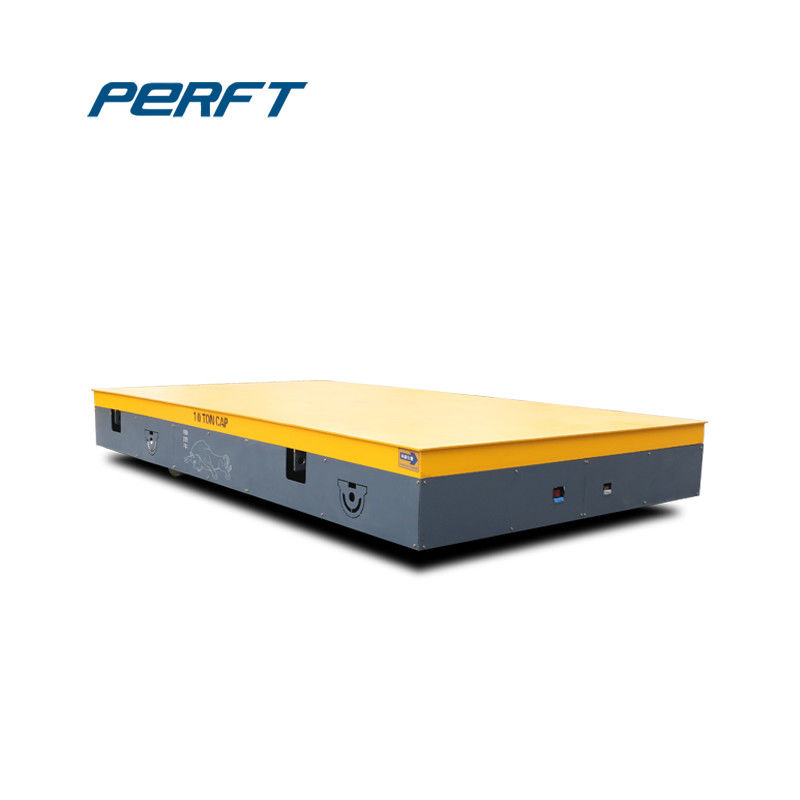

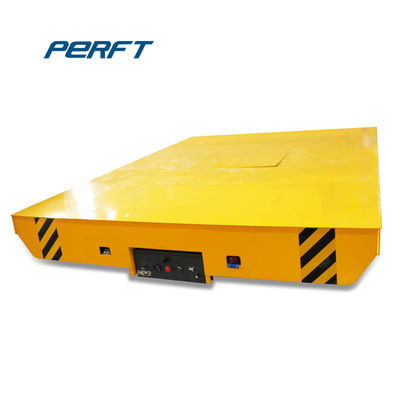

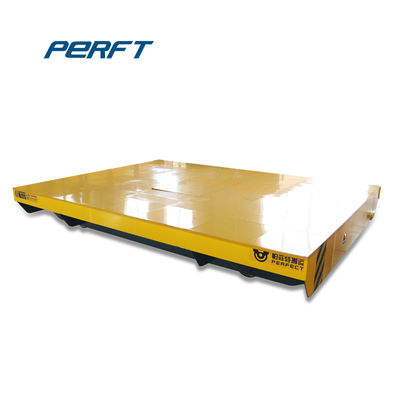

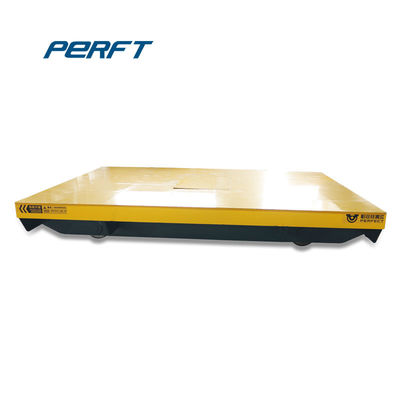

Detailed Image
Technical parameter table of 40 ton Heavy duty electric rail transfer cart rail guided die and mold vehicle
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Battery Voltage(v) | 24 | 48 | 48 | 72 | 72 | |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | |
Why have to choose us
1.Our commitment: The load bearing safety factor of the Coil Handling Vehicle is no less than 120%;
2.Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material;
3.16 hours engineering service and 24 hours internet service for our customers;
4.During the warranty period, if our Coil transfer cart can't work normally, we can support you repair technology or replace relevant parts for you within 48 hours;
5.Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company;
