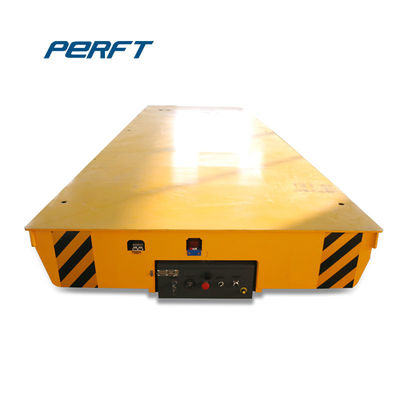

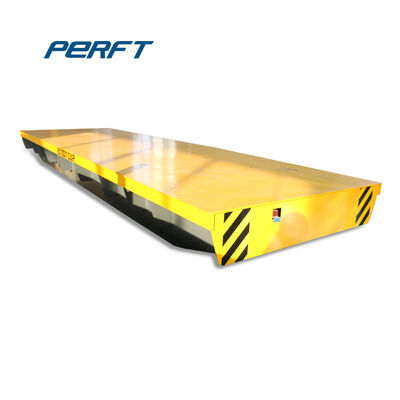

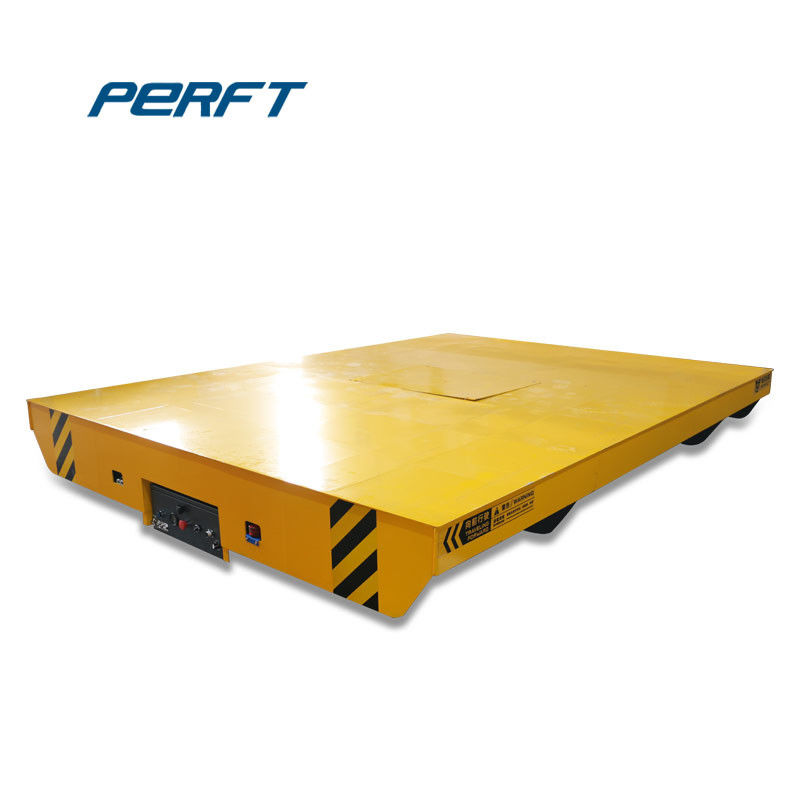

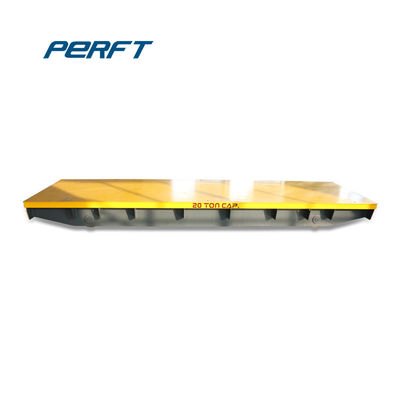

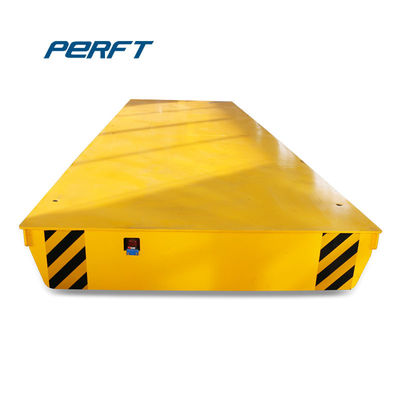

Motorized Electric Battery Powered 20m/Min Rail Material Transfer Cart

Motorized Electric Battery Powered 20m/Min Rail Material Transfer Cart
Motorized Electric Battery Powered 20m/Min Rail Material Transfer Cart
video play

Large Image :  Motorized Electric Battery Powered 20m/Min Rail Material Transfer Cart

Product Details:
Place of Origin: China(mainland)
Brand Name: heavy load transfer trolley
Certification: CE ISO SGS
Model Number: heavy load transfer trolley
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000~7200set
Packaging Details: trap and wooden case
Delivery Time: 20 work days after received balance payment
Supply Ability: 100sets month
Detailed Product Description
Product Name: Heavy Load Transfer Trolley On Track After-sales Service Provided: Engineers Available To Service Machinery Overseas
Place Of Origin: Henan, China (Mainland) Table Size: Customized
Running Speed: 0-20m/min Hight: Customized
High Light:

20m/min material transfer cart

,

material transfer cart flatbed

,

flatbed motorized transfer cart

Factory use Electric motorized Battery powered Rail transfer cart

Descraptions

The transfer trolley on track is powered by battery. The BXC series transfer car is able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track.

Motorized Electric Battery Powered 20m/Min Rail Material Transfer Cart 0



Technical Parameters Of transfer trolley on track
Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(Km) 6.5 4.8 4 3.8 3.2
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100

Motorized Electric Battery Powered 20m/Min Rail Material Transfer Cart 1

FAQ

  • 1.Q: What term of payment do you accept?
  • A: we accept 30% T/T as deposit, 70% T/T before delivery. we also accept L/C.
  • 2.Q: What is you delivery time?
  • A: We will delivery the transfer cart according to you order in 45 days, after we accept the prepayment.
  • 3.Q: How do transfer cart been shipped?
  • A: We export the transfer cart by sea or train with full container, LCL or in Bulk.
  • 4.Q: Do you have quality assurance for transfer cart?
  • A: Yes, we have 2 year of assurance.

Motorized Electric Battery Powered 20m/Min Rail Material Transfer Cart 2



Our team



Workshop Transfer Injection Die Mold Transport Cart On Rail

Our factory is located in Xinxiang City, Henan province. We cooperate with the Nanjing Engineering Institute all the year round and a senior welding engineer personally directs the production. Our company passed ISO9001 Quality management system and got the CE, SASO, SGS certificate.

we can produce all kinds of transfer cart from 1-1300 tons, our main products including BDG series Transfer cart BJT cable drum series Transfer cart , BHX safety sliding line series Transfer cart , BXC battery series Transfer cart , BTL towed cable series Transfer cart , BP non-power series Transfer cart , BQY train towed series Transfer cart , BWP trackless series Transfer cart and special Transfer cart , such as turning, trackless, ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
