Product Details:
Payment & Shipping Terms:
|
| Product Name: | Large Capacity Rail Transfer Flat Table Cart | Material: | Q235 |
|---|---|---|---|
| Capacity: | 1-300T | Warranty: | 12 Months |
| Dimension: | Customized As Practical Needs | After-sales Service Provided: | Engineers Available To Service Machinery |
| High Light: | remote control rail transfer cart,rail transfer cart 300t,electric transfer cart 300t |
||
Product Descraptions

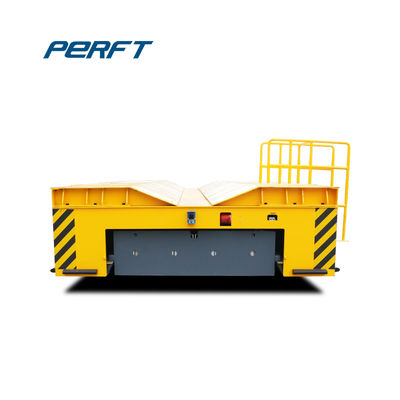

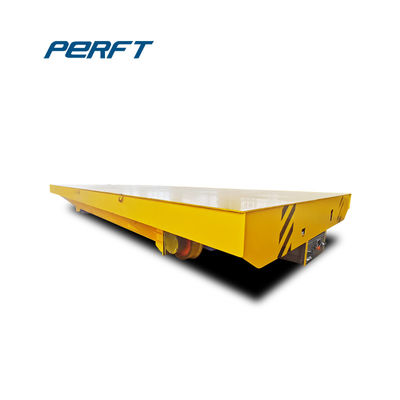

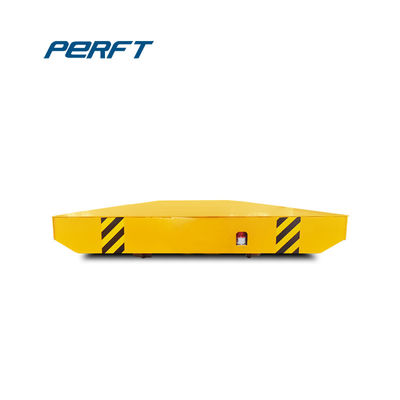

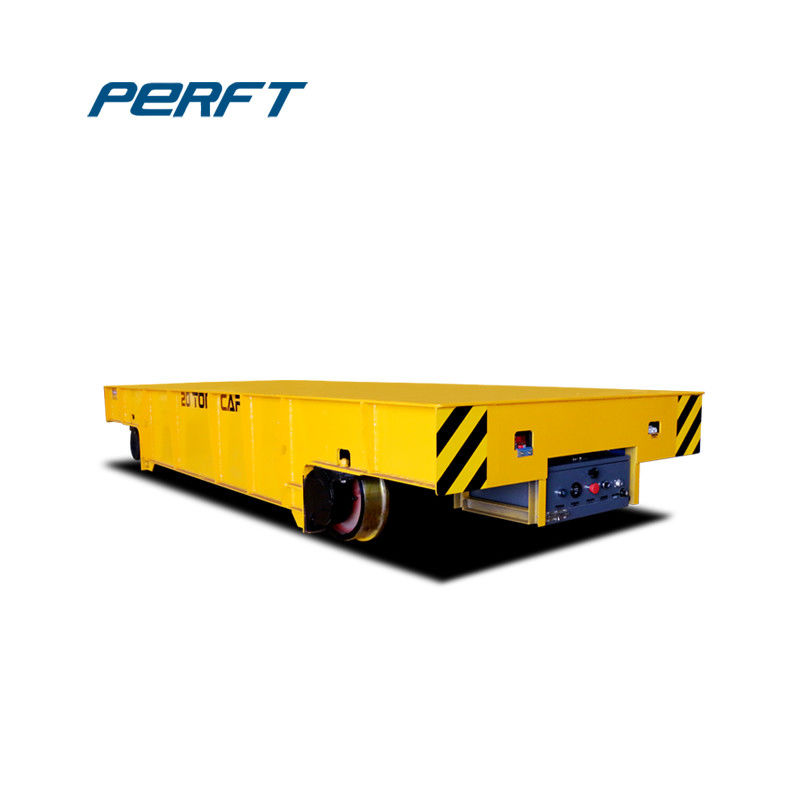

This large capacity rail transfer flat table cart is usually used at ship yard, plant and factory, certain production line. The large capacity rail transfer flat table cart could get power from the battery. The battery is installed inside the large capacity rail transfer flat table cart. The wide gauge rail trolley was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. wide gauge rail trolley construction is based on our world renowned large capacity rail transfer flat table cart and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our large capacity rail transfer flat table cart is available in a number of configurations specifically designed to suit the needs of our customers.
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
NOTES:
1. Q: What term of payment do you accept ?
A: For the first time we cooperate, we accept 50% T/T as depoist, 50% T/T before delivery. For the return customer, we could deal with 30% T/T as depoist, 70% T/T before delivery. Also, we accept L/C.
2. Q: What is you delivery time ?
A: We will delivery the carts you ordered 45 days after we accept the prepayment.
3. Q: How do product been shipped ?
A: We export the Industrial Handling Vehicle by sea or train with full container, LCL or in Bulk.
4. Q: Do you have quality assurance for Industrial Handling Vehicle ?
A: Yes, we have one year of assurance.
