Product Details:
Payment & Shipping Terms:
|
| Warranty: | 12 Month Long Guarantee | Capacity: | 1-300T |
|---|---|---|---|
| Power Supply: | Battery | Running Speed: | 0-25m/min(Adjustable) |
| Material: | Q235 Steel | Color: | Customized |
| Product Name: | Battery Operated Steel Coil Transfer Cart | After-sales Service: | Field Maintenance And Repair Service |
| High Light: | flatbed coil transfer car,300t coil transfer car,flatbed coil transfer trolley |
||
Top quality Heavy load Electric Rial Coil transfer Trolley for Factories

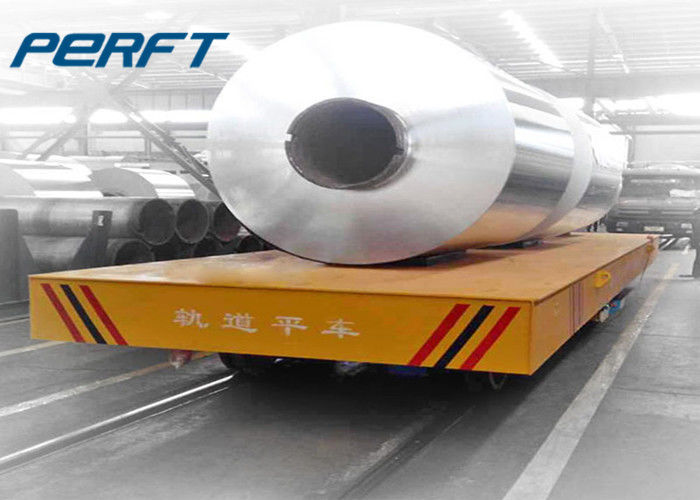

The Custom Battery operated steel coil material handling transfer cart is mainly adopted to transport metal coils, pipes, beam, or other round materials. We can design the cart’s capacity, table size, power supply style due to your working condition.
Technical parameters of Battery operated steel coil transfer cart (Customizable)
| Model | BXC-2T | BXC-10T | BXC-20T | BXC-30T | BXC-50T | BXC-63T | BXC-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
Uses of Rail Transport Bogie:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.
Henan Perfect Handling Equipment Co., Ltd is a professional & international manufacturing factory specialized in researching, developing, producing and selling material handling equipment.Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-1300 tons, our main products including BDG conductor rail transfer cart, BJT cable drum transfer cart, BHX safety sliding line transfer cart, BXC battery type transfer cart, BTL towed cable type transfer cart, BP non-power type transfer cart, BQY train towed type transfer cart, BWP trackless type and special type transfer cart, such as turning, trackless,ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
