Automotive 1t Die Transfer Cart Handling Trailer Mould Transferring Q235

Automotive 1t Die Transfer Cart Handling Trailer Mould Transferring Q235
Automotive 1t Die Transfer Cart Handling Trailer Mould Transferring Q235
video play

Large Image :  Automotive 1t Die Transfer Cart Handling Trailer Mould Transferring Q235

Product Details:
Place of Origin: China(Mainland)
Brand Name: PERFECT
Certification: CE ISO SGS
Model Number: BXC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1000~20000
Packaging Details: trap and wooden case
Delivery Time: 20 work days after received balance payment
Payment Terms: L/C, T/T
Supply Ability: 100 sets month
Detailed Product Description
Place Of Origin: Henan, China (Mainland) Brand Name: PERFECT
Capacity: 1-300ton Material: Q235
Type: Electric Power Source: Battery
Speed: 20m/min Warranty: 12 Months
High Light:

q235 die transfer cart

,

1t die transfer cart

,

300t die transfer trolley

       Automotive Die Handling Trailer Mould Transferring Q235 Rail Transfer Vehical

Description of Battery Powered Transfer Cart


This Battery Powered Transfer Cart is usually used at ship yard, plant and factory, certain production line. The Battery Powered Transfer Cart could get power from the battery. The battery is installed inside the cart. The Battery Powered Transfer Cart was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. Battery Powered Transfer Cart construction is based on our world renowned die Battery Powered Transfer Carts and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our Battery Powered Transfer Cart is available in a number of configurations specifically designed to suit the needs of our customers.

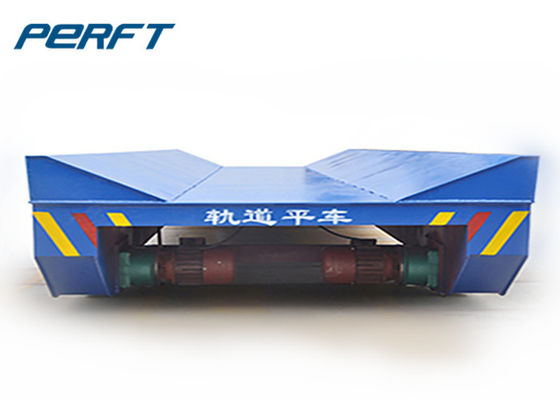

Automotive 1t Die Transfer Cart Handling Trailer Mould Transferring Q235 0

Application of mould transferring vehicle


Uses of heavy duty motorized industrial transfer flat carts:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.

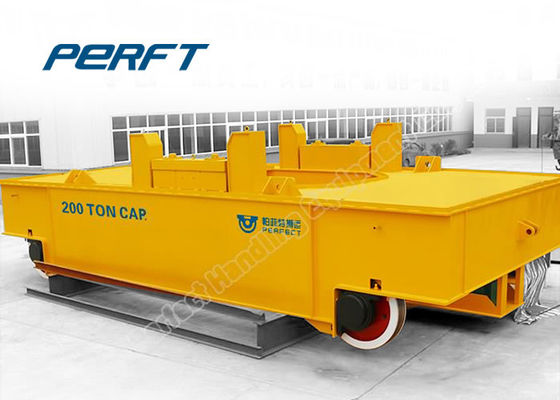

Automotive 1t Die Transfer Cart Handling Trailer Mould Transferring Q235 1



Machinery parts



1.DC controller

2.Explosion-proof DC motor

3.Angle box wheels

4.Lead acid battery or Maintenance- free battery.

5.F-series reducer

6.Charger on board



Automotive 1t Die Transfer Cart Handling Trailer Mould Transferring Q235 2







Technical Parameter of Battery Powered Transfer Cart

Model 2t 20t 50t 100t 150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Running time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for Once Charge(KM) 6.5 4.8 4 3.8 3.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100



Q&A

Will A Transfer Cart Be A Good Solution?

A good question to ask since there are many material handling solutions on the market! Which one is the right choice? For starters, transfer carts are moveable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.

What Are The Advantages of Using a Transfer Cart?

For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.

What Product Handling Applications Use Transfer Carts?

1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)

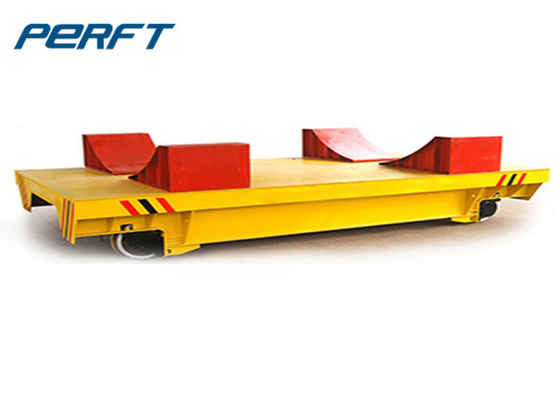

Automotive 1t Die Transfer Cart Handling Trailer Mould Transferring Q235 3
