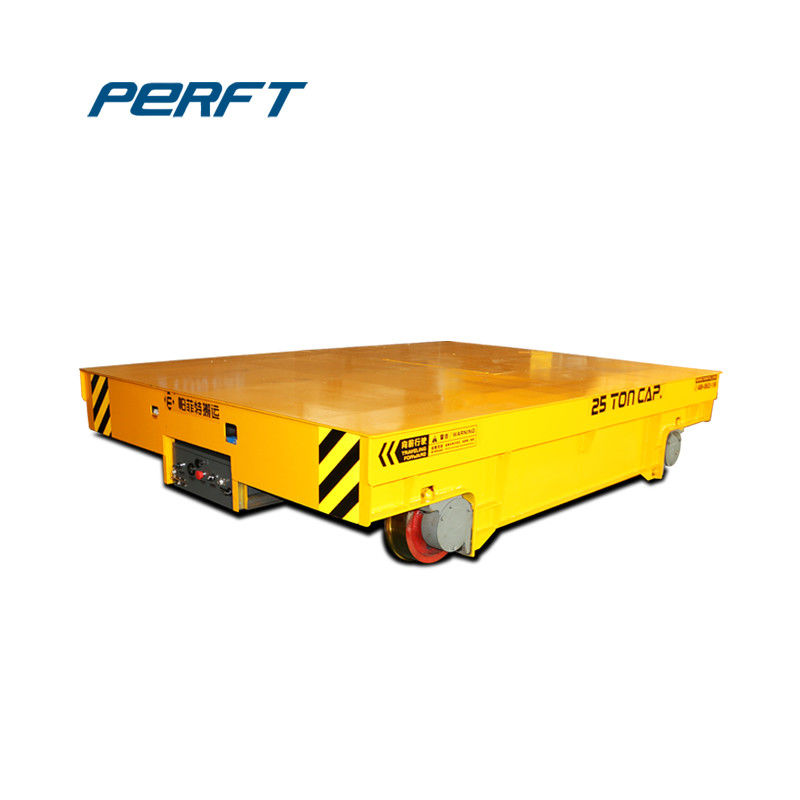

Precise Ladle Electric Motorised Transfer Trolley Heavy Duty Handling

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Precise Ladle Electric Motorised Transfer Trolley Heavy Duty Handling

Product Details:
Place of Origin: China(mainland)
Brand Name: steel ladle transfer cart
Certification: CE ISO SGS
Model Number: steel ladle transfer cart
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 3000~9000 set
Packaging Details: trap and wooden case
Delivery Time: 20 work days after received balance payment
Supply Ability: 100sets month
Detailed Product Description
Product Name: Heavy Load High Temperature Resistance Steel Ladle Transfer Cart Table Size: Customized
Color: Customized Running Speed: 0-20m/min
After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

ladle motorised transfer trolley

,

customization motorised transfer trolley

,

customization ladle transfer cart

Precise Ladle Electric Heavy Duty Handling Cart Motorized Rail Vehicle





Introduction of Motorized Rail Vehicle



Our line of Industrial Transfer Cars are designed to accommodate the needs of a wide range of industries such as steel, aluminum, automotive, stamping, heavy manufacturing and several others. These units are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.

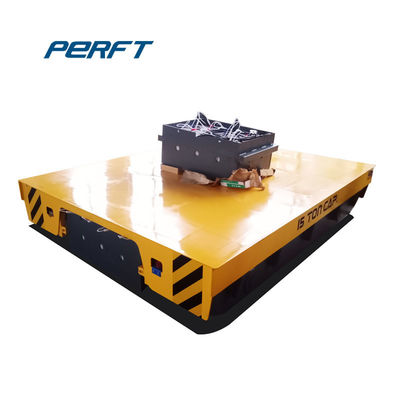

Precise Ladle Electric Motorised Transfer Trolley Heavy Duty Handling 0





Working prociple Motoriezd Vihicles



This Motorized Rail Vehicle is powered by dragging cable. The power source 380-690v alternating if leaded into electrical control cabinet by cable, which controls the motor to make the cart start, stop, move forward and move backward. Hydraulic lifting system can be mounted on the car to meet the demand for car lifting. The Motorized Rail Vehicle is suitable for running distance less than 20m, high using frequency.

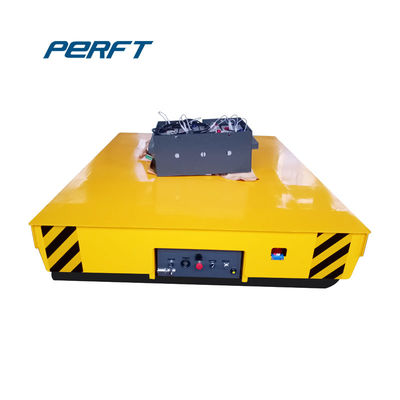

Precise Ladle Electric Motorised Transfer Trolley Heavy Duty Handling 1





Parameter



Model BTL-2t BTL -20t BTL -50t BTL -100t BTL -150t
Rated Load(t) 2 20 50 100 150
Table Size (mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Height(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 2.5 5.5 11 15
Recommended Rail Model P15 P24 P43 QU100 QU100



Certificalt

 high temperature resistance steel ladle transfer cart
