Product Details:
Payment & Shipping Terms:
|
Product Name: | Industrial Transfer Trolley | Powered Source: | Storaged Battery |
---|---|---|---|
Operation Mode: | Pandent And Remote Controller | Cart Frame: | Q235B |
Rail Gauge: | Customized | Color: | Customized |
Working Time: | 4-5 Hours | Wheel Type: | Cast Steel Wheel |
Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
High Light: | 50t battery transfer trolley,remote controller battery transfer trolley,customization battery transfer trolley |

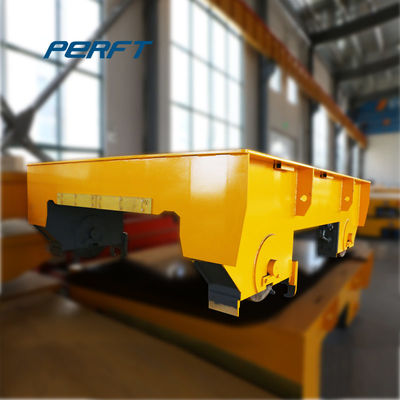

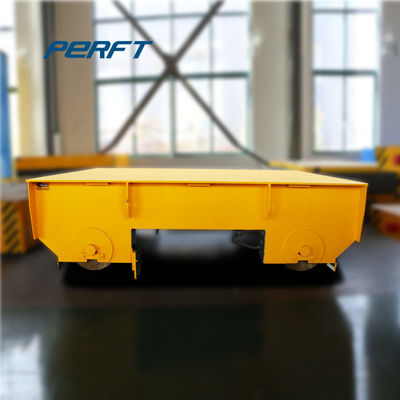

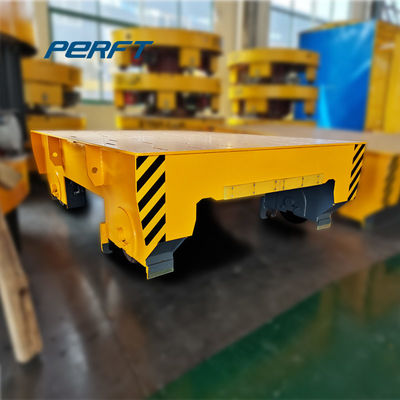

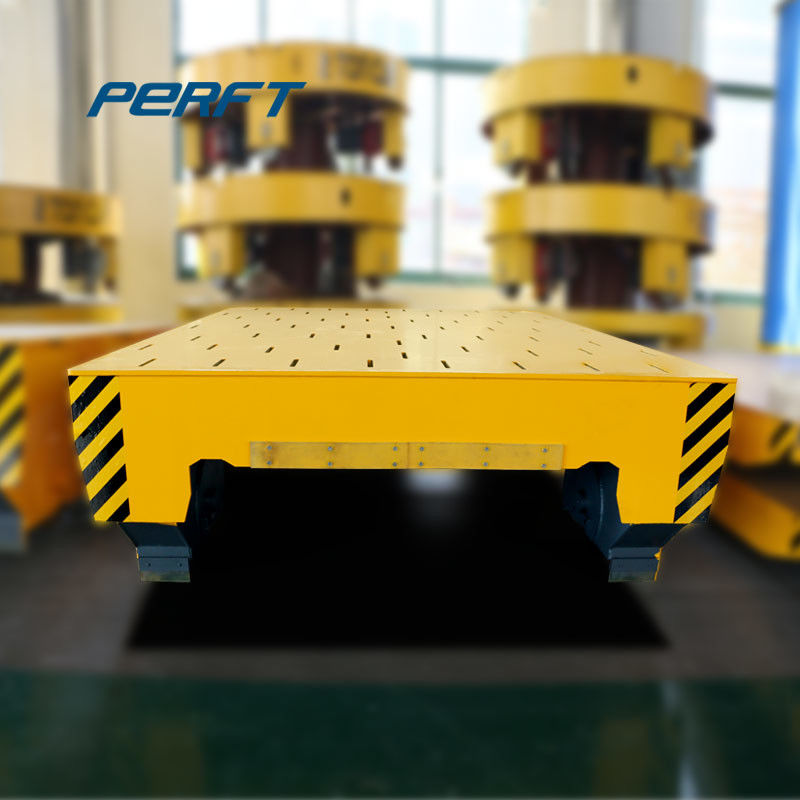

Introduction of Rail Transfer Cart
Perfect Material Handling offers a wide range of Die Transfer Wagon specifically designed for the unique needs of both stamping and molding. These products include Die Transport Equipment, Die Cart, and Die Transfer Trolleys and Die Trailers Systems.
This Die Transfer Wagon could run on railways or cement floor which is chosen according to the transportation route or clients' project plan. The selecting concept: the rail transport cart is mainly used for fixed route no need of rotation; while the trackless transfer trolley on cement floor can realize 360° direction turning.
Process of Rail Transfer Cart
CNC Cutting
Transport the steel plate from raw material warehouse to CNC cutting workshop for cutting. After the cutting, the workers will do some simple processing such as chip moving and setting out.
Preliminary Assembling
Put the cut steel plate together according to the design drawing
Welding
Weld the steel plate with automatic welding machine after the preliminary assembling
Post weld treatment
Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress
Spray Primer
Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint. The primer is to two layers
Assembling
Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
Paint finish
Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish
Debugging
Debugging the cart after painting the finish with electric control system, after the debugging, the cart will test without load. And after the no load test, the cart will be tested with load. After the inspection, the cart will be transported to storage area.
Parameters of Rail Transfer Cart
Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | |
Rated Load(t) | 2 | 20 | 50 | 100 | |
Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 |
Width(W) | 1500 | 2200 | 2500 | 2800 | |
Height(H) | 450 | 550 | 650 | 900 | |
Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | |
Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | |
Wheel Diameter(mm) | 270 | 350 | 500 | 600 | |
Wheel Quantity | 4 | 4 | 4 | 4 | |
Ground Clearance(mm) | 50 | 50 | 50 | 75 | |
Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | |
Motor Power(kw) | 1 | 2.2 | 5 | 10 | |
Battery Capacity | 180 | 180 | 330 | 440 | |
Battery Voltage | 24 | 48 | 48 | 72 | |
Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | |
Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | |
Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | |
Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | |
Recommended Rail Model | P15 | P24 | P43 | QU100 |
