Product Details:
Payment & Shipping Terms:
|
| Product Name: | 20 Ton Cable Drum Power Electric Flat Rail Transfer Cart On Factory Warehouse Rails | Load: | 10 T |
|---|---|---|---|
| Material: | Steel Carbon | Load Capacity: | 150t |
| Type: | Cable Drum Rail Transfer Cart | Wheel Base(mm): | 1200-7000 |
| Rail Inner Gauge(mm): | 1200-2000 | Ground Clearance(mm): | 50 |
| High Light: | 30ton coil transfer trolley,cable drum power coil transfer trolley,railway transportation coil transfer cart |
||

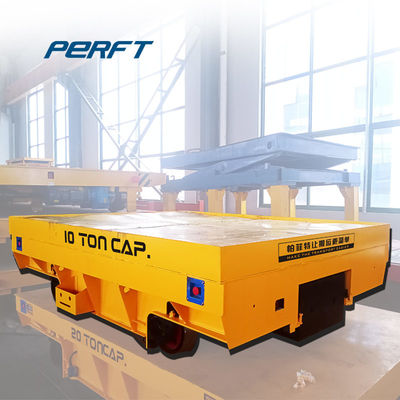

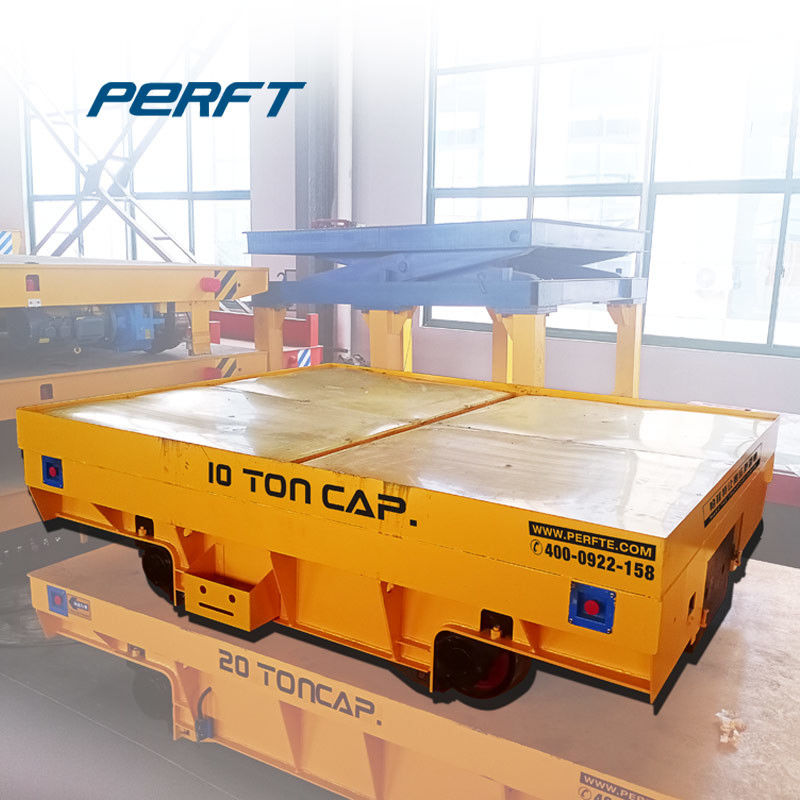

30 ton cable drum power electric Steel Coil Trolley in Railway Transportation for Factories
The steel coil trolley is also called a heavy transporter, headless transporter or self-propelled modular transporter. Our steel coil trolleies are specially designed for coil, pipe and other round material transportation. When the goods are loaded, we can make sure the car moves safely and the goods are in a very safe condition.
What's the characteristic of this cart
The serise car can be applied in the occasion with any loading capacity and high using frequency . If the running distance is beyond 5m, the trolly needs to install cable arranger to help with cable rolling. The max running distance is up to 200-400m.
Technical Table
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Application and Usage
The cart is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
