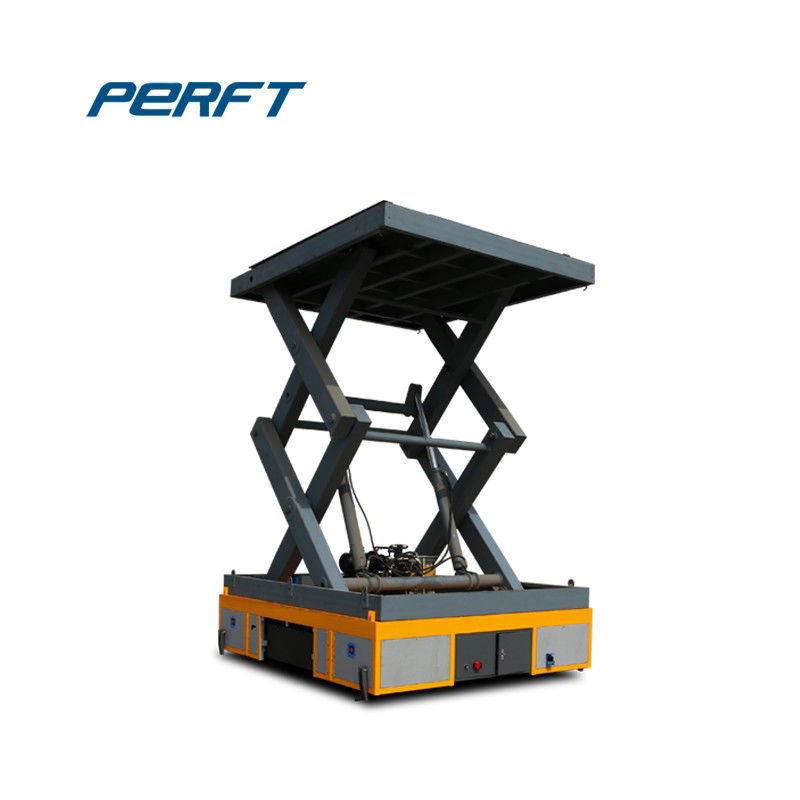

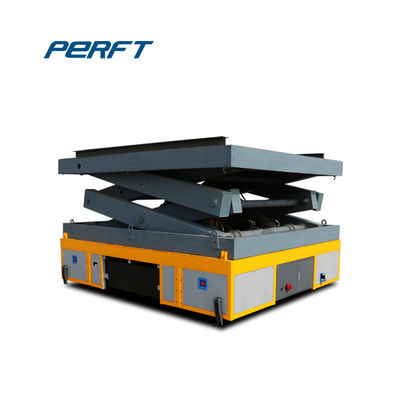

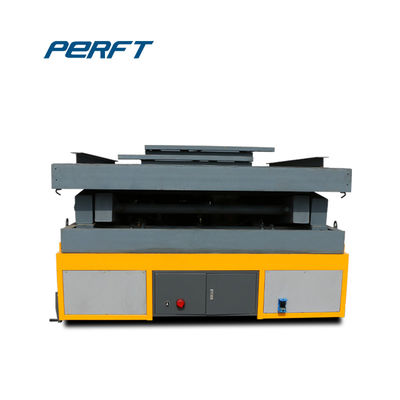

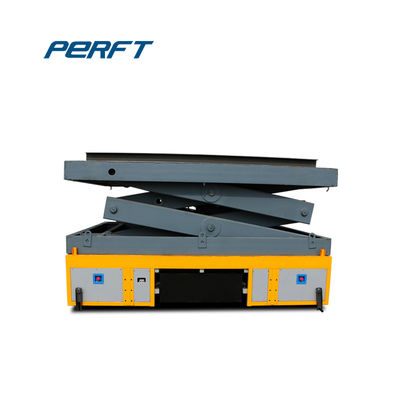

1-50t Rail Transfer Trolley Customization Heavy Load Electric Equipped Lifting Table

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  1-50t Rail Transfer Trolley Customization Heavy Load Electric Equipped Lifting Table

Product Details:
Place of Origin: Henan China
Brand Name: Ladle Rail Transfer Cart
Certification: CE ISO SGS
Model Number: Ladle Rail Transfer Cart
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Usd2800-5400/set
Packaging Details: Trap and wooden case
Delivery Time: 20 work days after received balance payment
Payment Terms: L/C, T/T
Supply Ability: 30sets/week
Detailed Product Description
Product Name: 30 Ton Heavy Load Steerable Ladle Transfer Cart On Rails Can Equipped Hydraulic Lifting Table Ground Clearance(mm): 50-75
Type: Ladle Rail Transfer Cart Motor Power: 1-15
Material: Carbon Steel Rail Inner Gauge(mm): 1200-2000
Wheel Diameter(mm): 270-600 Wheel Base(mm): 1200-7000
High Light:

1t rail transfer trolley

,

50t rail transfer car

,

customization flat bed rail transfer trolley

1-50T Customization heavy load Electric Rail Cart Can Equipped Lifting Table





Introduction of coil handling trailer


PERFECT Coil Handling Trailer are used to transport steel coils and pipes for metal industry. This coil handling trailers are designed to be an extremely cost effective, safe and flexible load moving alternative.
The Transfer Carts are manual guide vehicles equipped with specialized drive systems which make it possible to easily, precisely and safely move up to 200 tons. The coil heavy load transfer cart is sometimes called a heavy transporter, headless transporter or self-propelled modular transporter.



1-50t Rail Transfer Trolley Customization Heavy Load Electric Equipped Lifting Table 0



Main Componences

30 ton heavy load steerable ladle transfer cart on rails can equipped hydraulic lifting table





Technical Table

Model 2t 20t 50t 100t 150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
  Width(W) 1500 2200 2500 2800 3000
  Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Running time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for Once Charge(KM) 6.5 4.8 4 3.8 3.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Battery Voltage(v) 24 48 48 72 72
Battery Capacity(Ah) 180 180 330 440 600



1-50t Rail Transfer Trolley Customization Heavy Load Electric Equipped Lifting Table 2



Q&A


Will A Transfer Cart Be A Good Solution?
A good question to ask since there are many material handling solutions on the market! Which one is the right choice? For starters, transfer carts are moveable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.


What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?


1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)

1-50t Rail Transfer Trolley Customization Heavy Load Electric Equipped Lifting Table 3
