Rubber Wheel Battery Transfer Cart For Automatic Movement

Rubber Wheel Battery Transfer Cart For Automatic Movement
Rubber Wheel Battery Transfer Cart For Automatic Movement Rubber Wheel Battery Transfer Cart For Automatic Movement Rubber Wheel Battery Transfer Cart For Automatic Movement Rubber Wheel Battery Transfer Cart For Automatic Movement

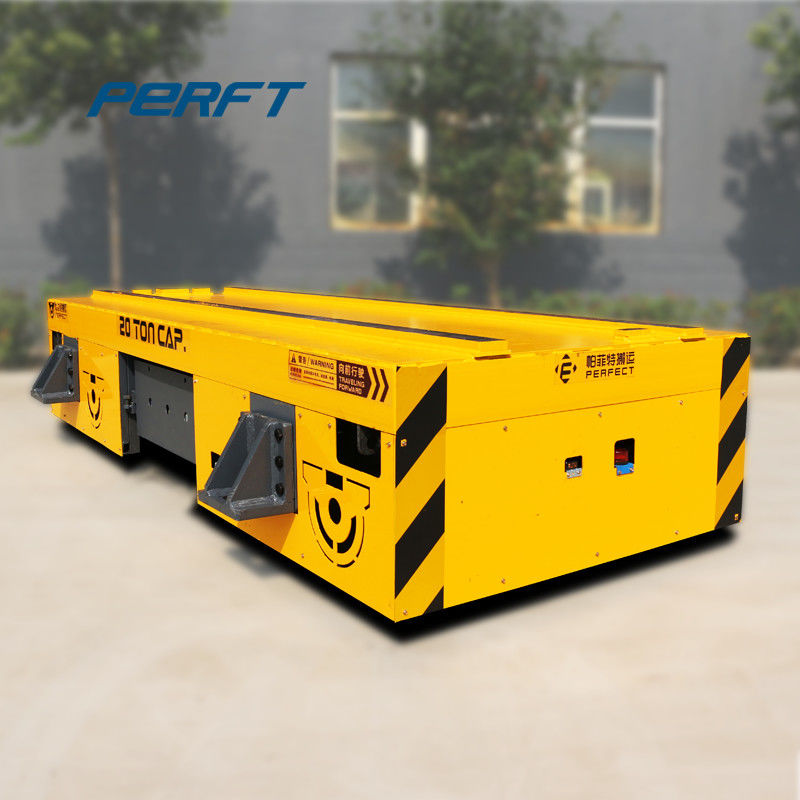

Large Image :  Rubber Wheel Battery Transfer Cart For Automatic Movement

Product Details:
Place of Origin: Henan, China(mainland)
Brand Name: Perfte
Certification: CE, ISO, SGS
Model Number: Battery Power Electric Transfer Cart
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $7500-$8000
Packaging Details: The cart's body is packed with a tarp, and the wheel and parts of the cart will be packed with wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 60 set per month
Detailed Product Description
Warranty: 12 Month Long Guarantee Capacity: 1-300T
Power Supply: Battery Running Speed: 0-25m/min(Adjustable)
Material: Q235 Steel Color: Customized
Product Name: Battery Power Electric Transfer Cart After-sales Service: Field Maintenance And Repair Service
High Light:

rubber wheel battery transfer cart

,

automatic movement battery transfer cart

,

adjustable speed battery transfer cart



        Rubber Wheel Battery Power Steel Mill Use Motorized Handling Trailer for Automatic Movement







Description


The motorized handling trailer is movable platform used for the horizontal movement of materials, assemblies and other items. Originally designed for loads transfer between overhead crane bays, with the diversification of demand, it has been developed to transport in assembly line, within or without warehouse, or around the factory. Trackless motorized handling trailer is now used to carry loads along assembly lines, carry an entire shift of production on and even as a stable movable machine base.

Rubber Wheel Battery Transfer Cart For Automatic Movement 0



                                                 Technical parameters



Model BWP-15T
Rated load (T) 15
Table size length(L) 2000
Width(W) 1500
Height(H) 450
Wheel Base (mm) 1200
Wheel Diameter(mm) Φ270
Ground Clearance (mm) 50
Motor Power (Kw) 1
Battery Capacity(Ah) 180
Battery Voltage(V) 24
Running Time When Full Load 4.32
Running Distance for one Charge(Km) 6.5
Max Wheel Load (KN) 14.4



Rubber Wheel Battery Transfer Cart For Automatic Movement 1



                                                                                           Aplications


PERFECT motorized handling trailers are operating in many shipping lines, stevedores, concrete manufacturers, foundries, steel mills, etc. We have supplied Hybrid Transfer Cart in the world for moving molds inside and outside the plant by electric traction and driving long distances.And also Heavy Load Transfer Carts are mainly used to solve manoeuvrability problems in tight spaces. Due to all possible steering programs, on either one or different axles, you can achieve tight turning radious. The propulsion can be either electric for in-plant load Carts or batteries for long distances.

Our service



The battery power electric transfer cart

1. We offer a full range of customized services

2. We can customize the transfer cart according to your needs for the tonnage, shape, color, safety device and the way of operation.

Welcome to consult

Consult now for free technical advice from engineers



Q&A


1.What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
2. What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
3. How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.
